BUSH HOG / MATERIAL HANDLING REPAIR PARTS MANUAL

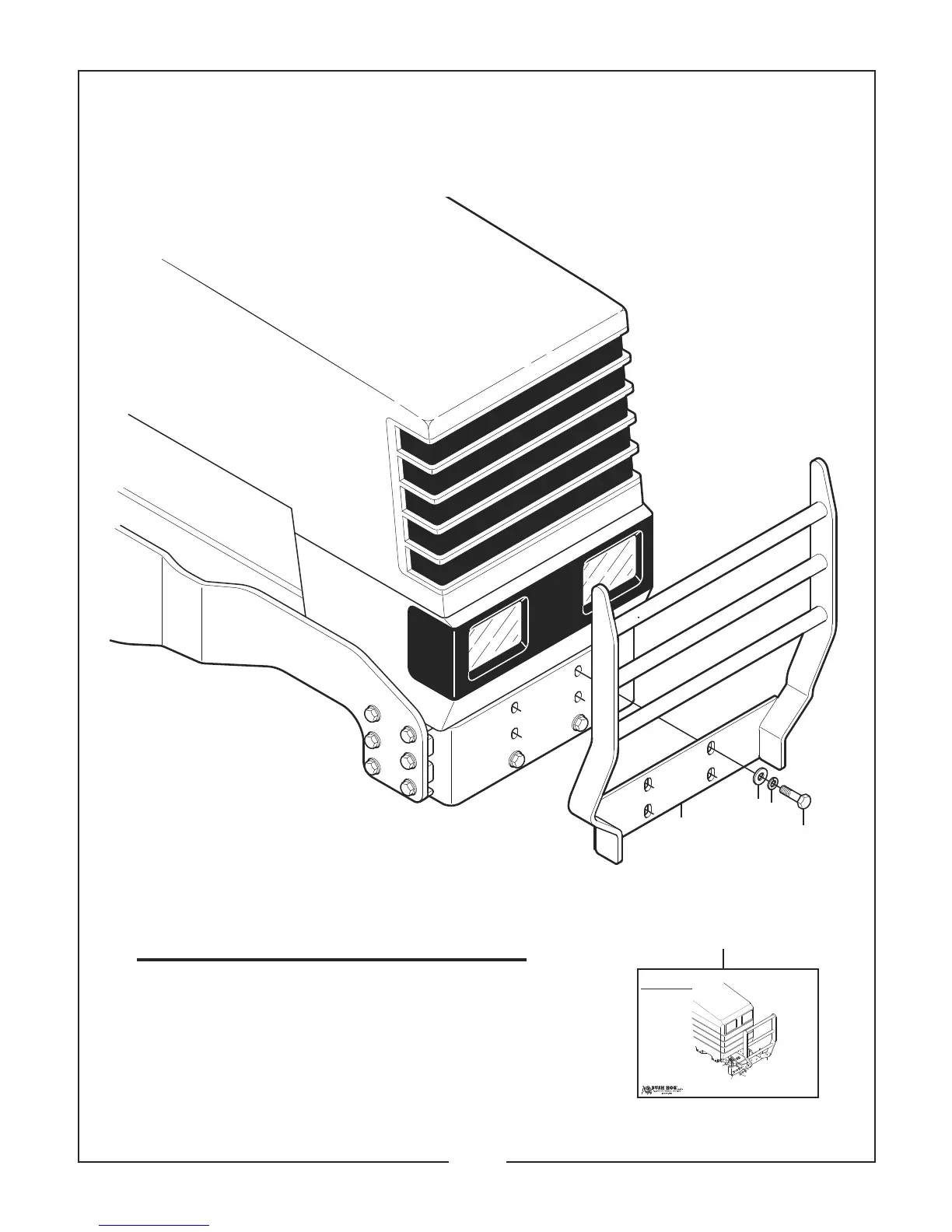

50101597 GRILL GUARD KIT
For 3045 Loader
Used on Kubota M4700, M4900, M5400, M5700 Tractors
REF. PART
NO. NO.
QTY. DESCRIPTION
1 50101589 1 Grill Guard
2 44212 4 Capscrew M16 x 1.5 x 60 G10.9 ZP
3 ––––– 4 Lockwasher 5/8” ZP
4 ––––– 4 Flatwasher 5/8” ZP
5 50032698 1 Instruction Sheet
2
1
4
3
5
1-20C-6
SEPTEMBER, 2006
M246 GRILL GUARD
MOUNTING INSTRUCTIONS
FOR
JOHN DEERE 4500, 4600, 4700
GRILL GUARD KIT 50037325
50037327
Grill Guard
6/27/02
68-02
Instruction Sheet No. 50038314
Grill Guard to Tractor
(1) 5/8” x 2-1/4” Capscrew
(1) 5/8” Flatwasher SAE HRD
(1) 5/8” Lockwasher
(1) 5/8” Hex Nut
(1) 25H41218 Spacer 11/16”
(Per Side)
Grill Guard to Tractor
(2) 1/2” x 2-1/2” Capscrews
(2) 1/2” Flatwashers SAE HRD
(2) 1/2” Lockwashers
(2) 1/2” Hex Nuts
(2) 25H42142 Spacers 7/8”
(Per Side)
