BUSH HOG / MATERIAL HANDLING REPAIR PARTS MANUAL
1-20C-8

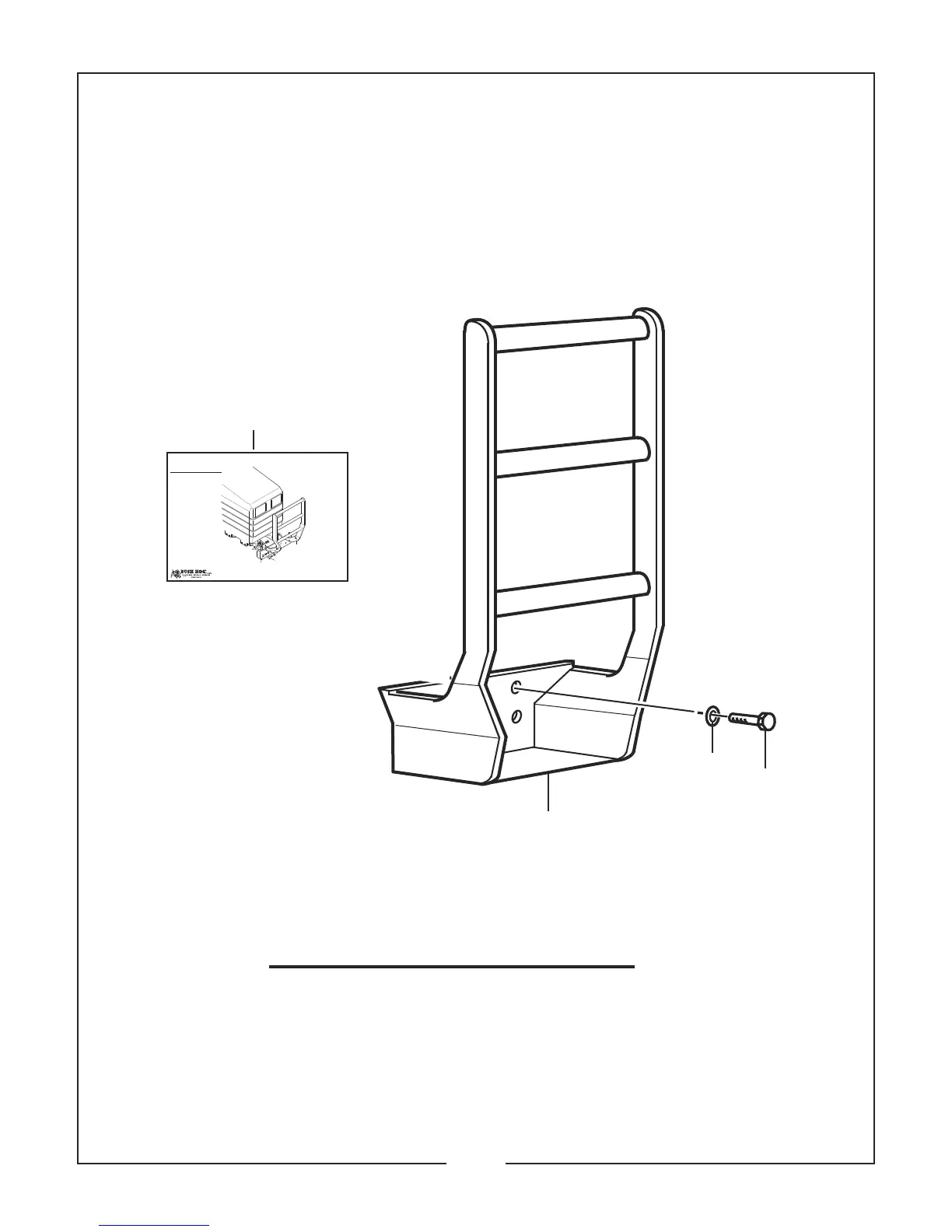

50042878 GRILL GUARD KIT
For 3045 Loader
Used on Kubota L4330, L4630 & L5030, MX5000 Tractors
4
REF. PART
NO. NO.
QTY. DESCRIPTION
1 50043023 1 Grill Guard Weldment
2 44396 4 Capscrew M14 x 1.5 x 40 Gr. 8.8
3 44233 4 Lockwasher M14
4 50043027 1 Instruction Sheet
1
2
3
SEPTEMBER, 2006
M246 GRILL GUARD
MOUNTING INSTRUCTIONS
FOR
JOHN DEERE 4500, 4600, 4700
GRILL GUARD KIT 50037325
50037327
Grill Guard
6/ 27/02
68-02
Instruction Sheet No. 50038314
Grill Guard to Tractor
(1) 5/8” x 2-1/4” Capscrew
(1) 5/8” Flatwasher SAE HRD
(1) 5/8” Lockwasher
(1) 5/8” Hex Nut
(1) 25H41218 Spacer 11/16”
(Per Side)
Grill Guard to Tractor
(2) 1/2” x 2-1/2” Capscrews
(2) 1/2” Flatwashers SAE HRD
(2) 1/2” Lockwashers
(2) 1/2” Hex Nuts
(2) 25H42142 Spacers 7/8”
(Per Side)
