BUSH HOG / MATERIAL HANDLING REPAIR PARTS MANUAL
1-20C-9

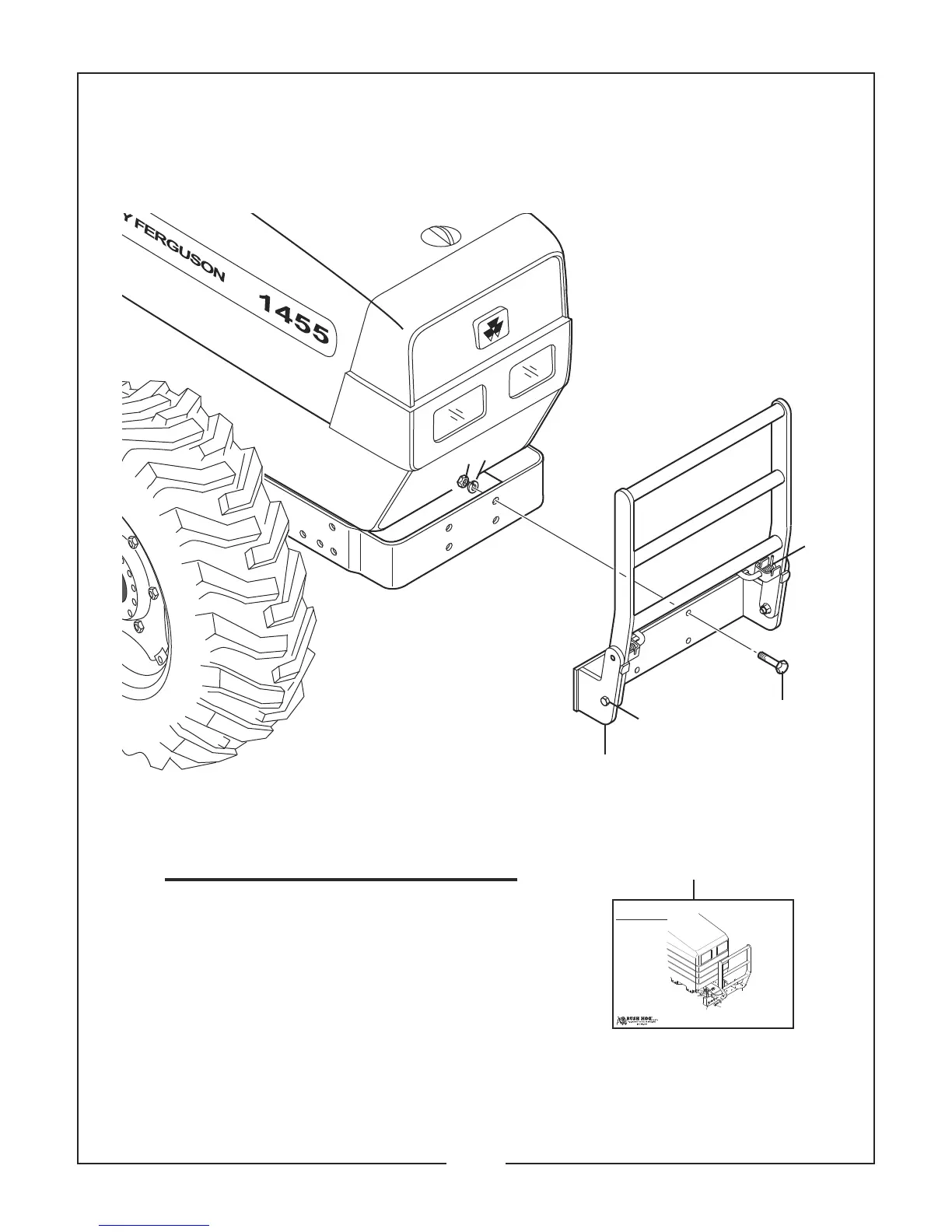

50049169 GRILL GUARD KIT
For 3045 Loader
Used on Massey Ferguson 1455, 1455V, 1445 & 1165 Tractors
REF. PART
NO. NO.
QTY. DESCRIPTION
1 50049171 1 Grill Guard Weldment
2 44433 2 Capscrew M14 x 2 x 45 G8 ZP
–––– 4 Capscrew 1/2” x 2 1/4” G8 ZP
3 –––– 4 Lockwasher 1/2”
4 –––– 4 Hex Nut 1/2”
5 50032700 2 Latch Pin
6 44078 2 Roll Pin
7 50034114 2 Spring
8 –––– 2 Capscrew 1/2” x 1-3/4”
9 19518 2 Lock Nut 1/2”
10 50043089 1 Instruction Sheet
10
2
1
5, 6, 7
8, 9
4
3
SEPTEMBER, 2006
M246 GRILL GUARD
MOUNTING INSTRUCTIONS
FOR
JOHN DEERE 4500, 4600, 4700
GRILL GUARD KIT 50037325
50037327
Grill Guard
6/ 27/02
68-02
Instruction Sheet No. 50038314
Grill Guard to Tractor
(1) 5/8” x 2-1/4” Capscrew
(1) 5/8” Flatwasher SAE HRD
(1) 5/8” Lockwasher
(1) 5/8” Hex Nut
(1) 25H41218 Spacer 11/16”
(Per Side)
Grill Guard to Tractor
(2) 1/2” x 2-1/2” Capscrews
(2) 1/2” Flatwashers SAE HRD
(2) 1/2” Lockwashers
(2) 1/2” Hex Nuts
(2) 25H42142 Spacers 7/8”
(Per Side)
