BUSH HOG / MATERIAL HANDLING REPAIR PARTS MANUAL
1-20C-10

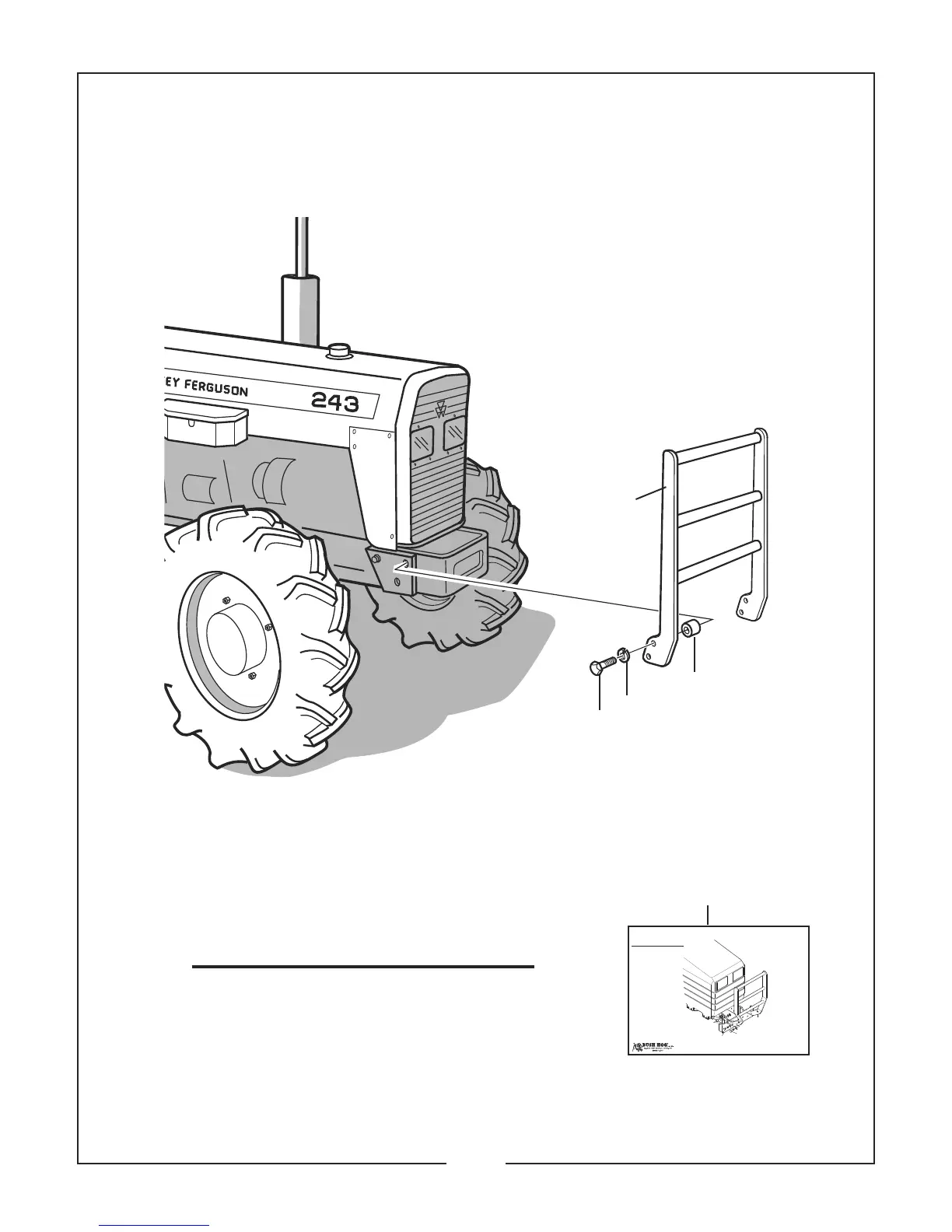

50043128 GRILL GUARD KIT
For 3045 Loader
Used on Massey Ferguson 240-FWA, 243-FWA, 253-FWA & 263-FWA Tractors
REF. PART
NO. NO.
QTY. DESCRIPTION
1 50043124 1 Grill Guard Weldment
2 98819 4 Capscrew 5/8” x 2 1/2” G5 ZP
3 19486 4 5/8” Lockwasher CP
4 98819 4 1-1/2” Spacer
5 50043126 1 Instruction Sheet
5
1
2
3
4
SEPTEMBER, 2006
M246 GRILL GUARD
MOUNTING INSTRUCTIONS
FOR
JOHN DEERE 4500, 4600, 4700
GRILL GUARD KIT 50037325
50037327
Grill Guard
6/27/02
68-02
Instruction Sheet No. 50038314
Grill Guard to Tractor
(1) 5/8” x 2-1/4” Capscrew
(1) 5/8” Flatwasher SAE HRD
(1) 5/8” Lockwasher
(1) 5/8” Hex Nut
(1) 25H41218 Spacer 11/16”
(Per Side)
Grill Guard to Tractor
(2) 1/2” x 2-1/2” Capscrews
(2) 1/2” Flatwashers SAE HRD
(2) 1/2” Lockwashers
(2) 1/2” Hex Nuts
(2) 25H42142 Spacers 7/8”
(Per Side)
