BUSH HOG / MATERIAL HANDLING REPAIR PARTS MANUAL
1-20C-12
11

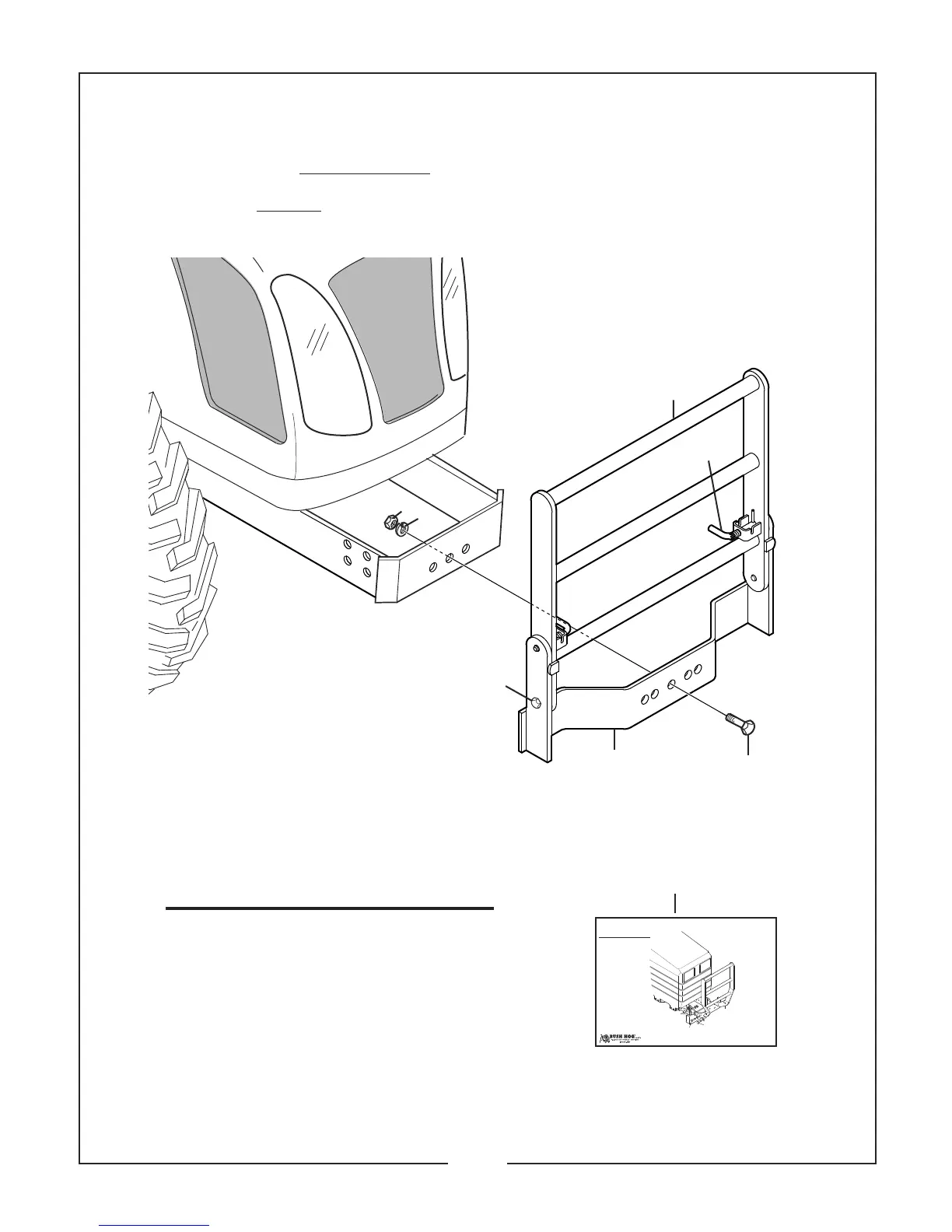

50044990 GRILL GUARD KIT
For 3045 Loader
Used on New Holland/Ford
TC48DA 2WD/FWA, TC55DA 2WD/FWA,
T2410 FWA, T2420 FWA, Boomer 4055 FWA, Boomer 4060 FWA
Case/I.H. DX48 Farmall 2WD/FWA & DX55 Farmall 2WD/FWA,
Farmall 55FWA, Farmall 60 FWA Tractors
REF. PART
NO. NO.
QTY. DESCRIPTION
1 50044996 1 Grill Guard Weldment
2 50044991 1 Front Mount Bracket
3 15563 3 Capscrew 5/8” x 2” G5 ZP
4 19486 3 Hex Nut 5/8” CP GR 5
5 20947 3 Lockwasher 5/8” CP
6 50032700 2 Latch Pin
7 50034114 2 Spring
8 44078 2 Roll Pin
9 –––– 2 Capscrew 1/2” x 1-3/4”
10 19518 2 Lock Nut 1/2”
11 50044995 1 Instruction Sheet
1
6, 7, 8
3
5
9, 10
4
2
M246 GRILL GUARD
MOUNTING INSTRUCTIONS
FOR
JOHN DEERE 4500, 4600, 4700
GRILL GUARD KIT 50037325
50037327
Grill Guard
6/27/02
68-02
Instruction Sheet No. 50038314
Grill Guard to Tractor
(1) 5/8” x 2-1/4” Capscrew
(1) 5/8” Flatwasher SAE HRD
(1) 5/8” Lockwasher
(1) 5/8” Hex Nut
(1) 25H41218 Spacer 11/16”
(Per Side)
Grill Guard to Tractor
(2) 1/2” x 2-1/2” Capscrews
(2) 1/2” Flatwashers SAE HRD
(2) 1/2” Lockwashers
(2) 1/2” Hex Nuts
(2) 25H42142 Spacers 7/8”
(Per Side)
May, 2009
