BUSH HOG / MATERIAL HANDLING REPAIR PARTS MANUAL

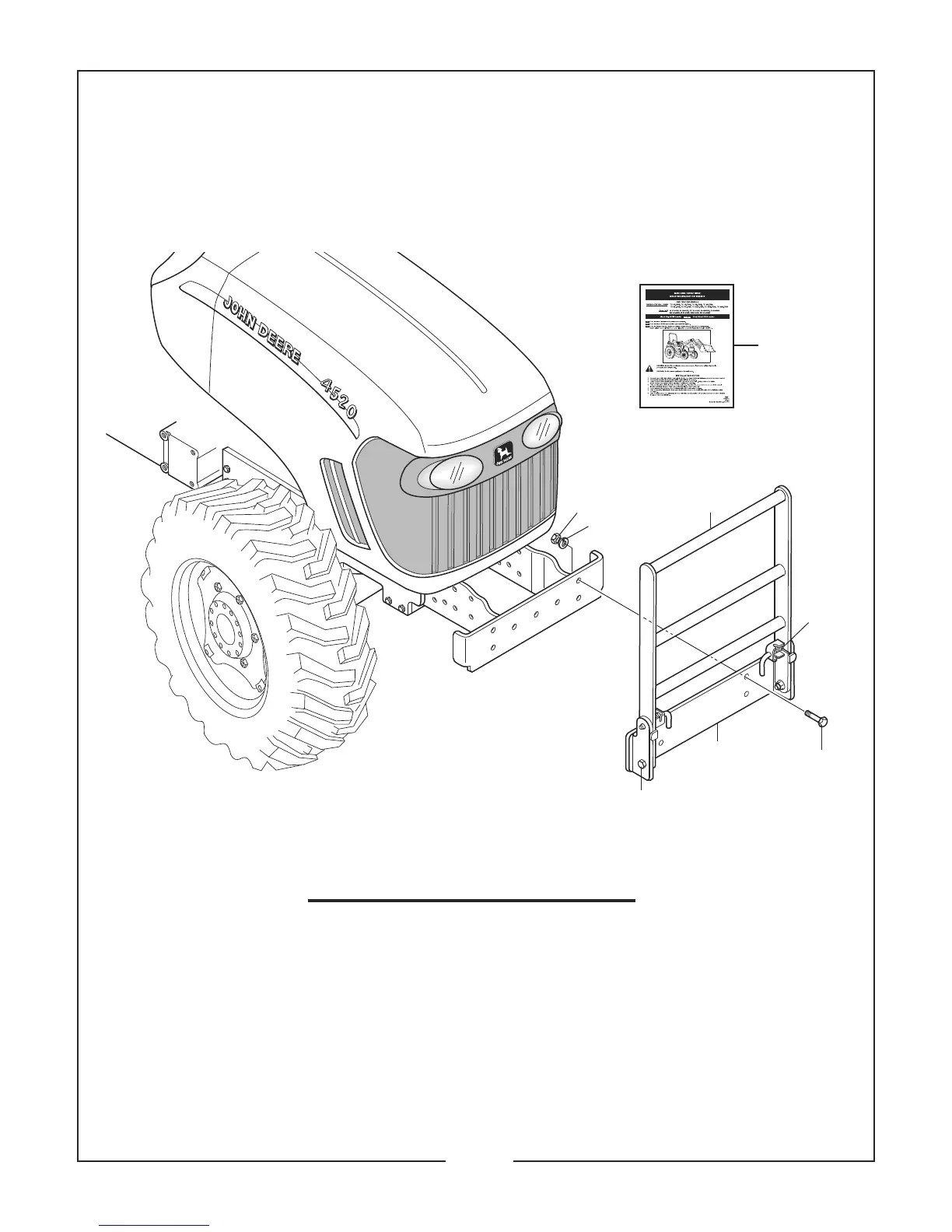

50048937 GRILL GUARD KIT
For 3045 Loader
Used on John Deere 4120-FWA, 4320-FWA, 4520-FWA, 4720-FWA Tractors
REF. PART
NO. NO.
QTY. DESCRIPTION
1 50049091 1 Grill Guard Weldment
2 50048938 1 Front Mount Bracket
3 –––– 6 Capscrew 1/2” x 1-3/4”
4 –––– 4 Lockwasher 1/2” CP
5 –––– 4 Hex Nut 1/2” CP GR 5
6 19518 2 Lock Nut 1/2”
7 50032700 2 Latch Pin
8 50034114 2 Spring
9 44078 2 Roll Pin
10 50048940 1 Instruction Sheet
1
4
5
2
3, 6
7, 8, 9
3
10
