Bush Hog LOADER 3045 - Page 47

1-20E-1
BUSH HOG / MATERIAL HANDLING REPAIR PARTS MANUAL

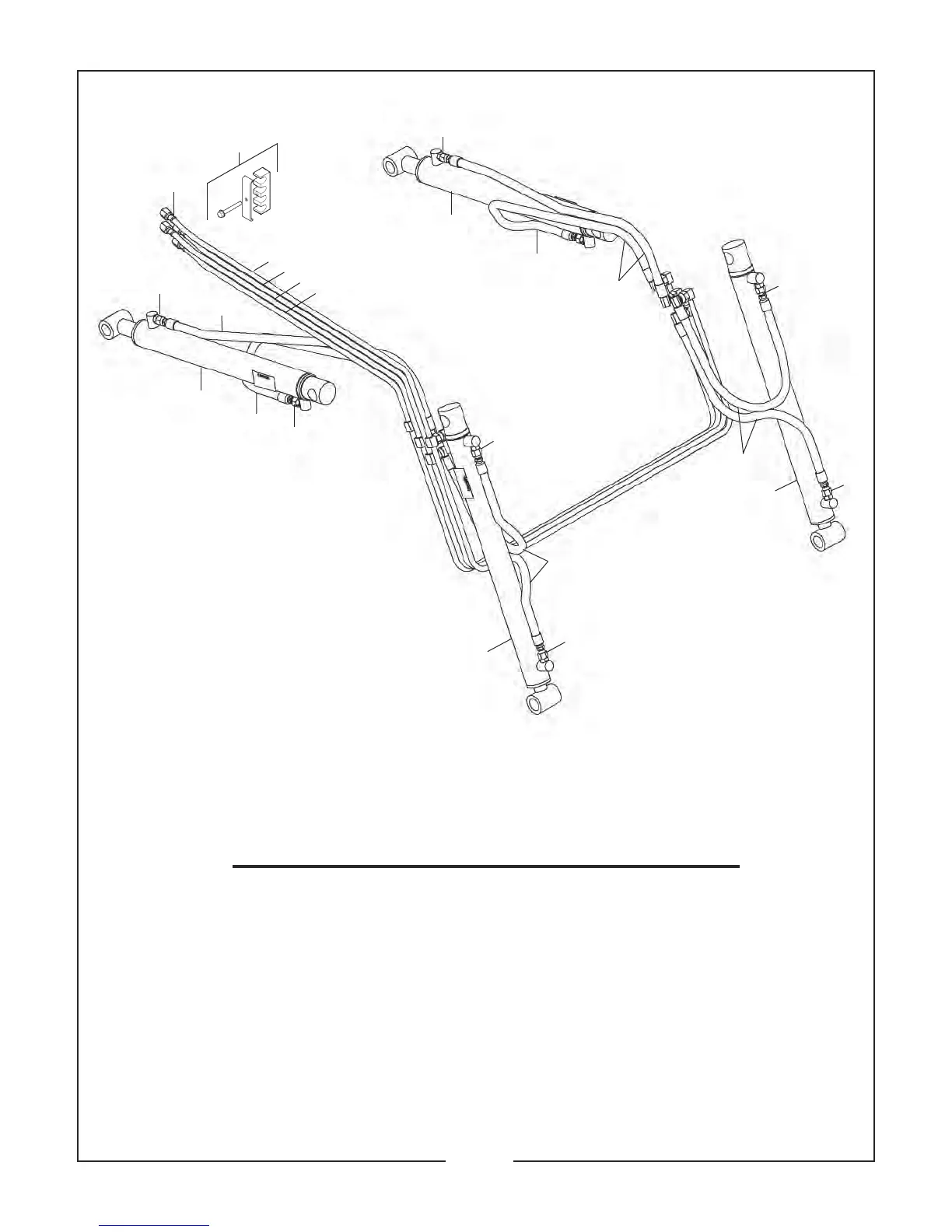

BASIC LOADER HYDRAULICS
For 3045 Loader
REF. PART
NO. NO.
QTY. DESCRIPTION
1 50048334 3 Hydraulic Tube Clamp Assembly
2 50063184 1 Tubing, Hydraulic
3 50063185 1 Tubing, Hydraulic
4 50063186 1 Tubing, Hydraulic
5 50063187 1 Tubing, Hydraulic
6 50051065 2 Lift Cylinder (Part number 50051037 stamped on cylinder)
7 50051064 2 Bucket Cylinder (Part number 50051036 stamped on cylinder)
8 50048378 8 Straight Thread Connector
9 50049304 4 Hose Assembly 3/8”
10 50051039 4 Hose Assembly 3/8”
11 25H49700 1 Cable Tie, Green
25H49699 1 Cable Tie, Yellow
50027875 1 Cable Tie, Red
50027876 1 Cable Tie, Blue
8
11
2
3
4
5
8
8
9
9
8
7
7
8
8
6
8
8
10
10
1
6
10
May, 2009
