Bush Hog LOADER 3045 - Page 48

1-20E-2
BUSH HOG / MATERIAL HANDLING REPAIR PARTS MANUAL

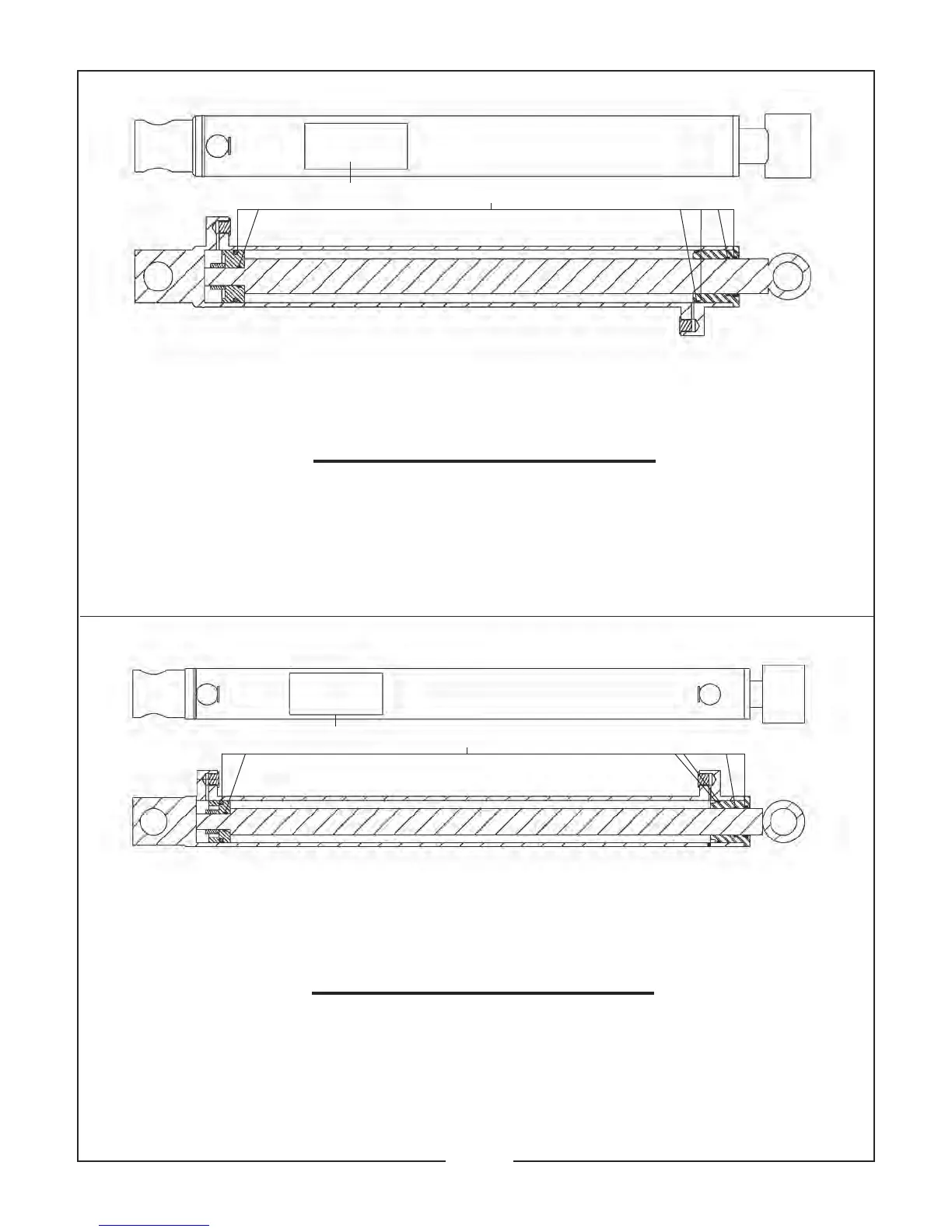

50051065 LIFT CYLINDER
2.250” Bore x 19.375” Stroke
Mfd. by Bailey
Note: Part number 50051037 stamped on cylinder
REF. PART
NO. NO.
QTY. DESCRIPTION
1 50048415 1 Seal Kit
–––– 1 1.5” Wiper Seal
–––– 1 1.5” Rod Seal
–––– 1 Back-up Ring for Gland
–––– 1 Gland O-Ring
–––– 1 Piston O-Ring
–––– 1 2.5” Piston Seal
2 50100238 1 Decal, Caution
REF. PART
NO. NO.
QTY. DESCRIPTION
1 50050929 1 Seal Kit
–––– 1 1.5” Wiper Seal
–––– 1 1.5” Rod Seal
–––– 1 Back-up Ring for Gland
–––– 1 Gland O-Ring
–––– 1 Piston O-Ring
–––– 1 2.25” Piston Seal
2 50100238 1 Decal, Caution
1
2
1
2
50051064 BUCKET CYLINDER
2.000” Bore x 22.813” Stroke
Mfd. by Bailey
Note: Part number 50051036 stamped on cylinder
JULY, 2007
