Bush Hog LOADER 3045 - Page 52

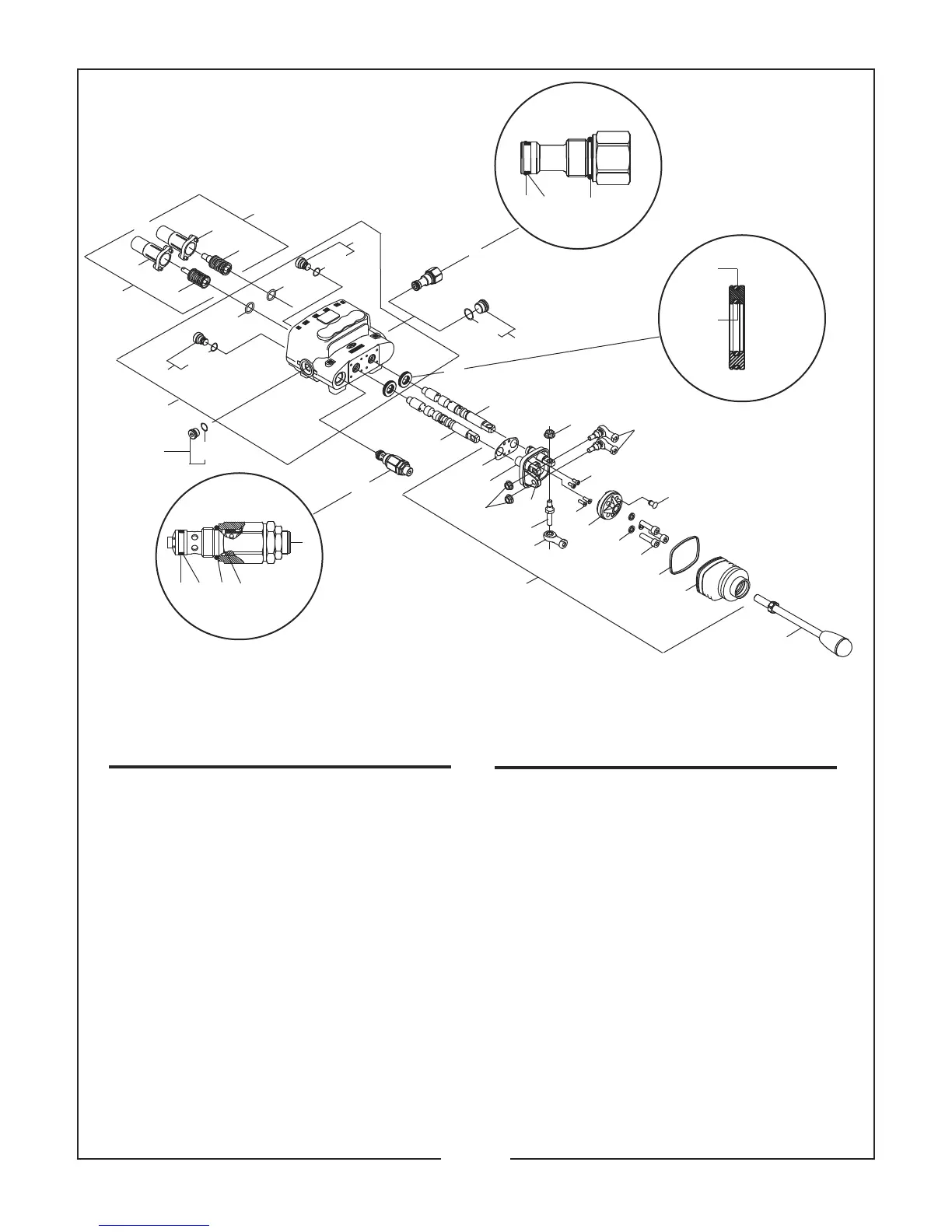

BUSH HOG / MATERIAL HANDLING REPAIR PARTS MANUAL
1-20F-2
32
29
33
10
11
11
34
34
31
28
10
8
5
3
26
25
22
4
6
22
27
24
23
20
21
19
12
17
18
16
15
14
13
1
30
35
42
9
2
37 38 39 40
36
37
41
42
43
REF. PART
NO. NO.
QTY. DESCRIPTION
1 25H50807 1 Handle
2 25H51803 1 Relief Valve Assembly
3 50029393 1 Spool
4 50029394 1 Spool
5 25H50822 1 Plug
6 25H50823 1 Plug
7 25H50830 1 Power Beyond Plug
8 50029395 1 Valve Body Kit
9 50029397 2 Ring
10 25H50828 2 Load Check Kit
11 25H50824 2 O-Ring Seal
12 25H51794 1 Handle Control Kit
13 25H51787 1 Cover Boot
14 25H51245 1 Plastic Band
15 25H51261 3 Capscrew M8 x 25 – 8.8
16 25H51243 3 Washer
17 25H51789 1 Plug
18 25H51786 1 Articulator
19 25H51792 1 Rod End
20 25H51240 1 Pin
21 25H51781 1 Pivot
22 25H51236 3 Flanged Nut, M8
REF. PART
NO. NO.
QTY. DESCRIPTION
23 25H51793 2 Capscrew M5 x 16 – 10.9
24 25H51259 2 Capscrew M5 x 10 – 12.9
25 25H51802 1 Flange
26 25H51783 1 Seal
27 25H51801 2 Rod End
28 25H51798 1 Float Detent Kit
29 –––– 1 Positioner Kit
30 –––– 1 End Cap Kit
31 50029396 1 Spring Center Kit
32 –––– 1 End Cap Kit
33 –––– 1 Positioner Kit
50029398 1 Seal Kit (items 11, 34 – 43)
34 –––– 2 O-Ring Seal
35 –––– 1 Seal
36 –––– 2 O-Ring Seal
37 –––– 2 O-Ring Seal
38 –––– 1 Ring
39 –––– 1 Seal
40 –––– 1 O-Ring Seal
41 –––– 1 Parbak Seal
42 –––– 2 Seal
43 –––– 2 O-Ring Seal
7
50028958 SERIES HYDRAULIC VALVE
Mfr. by Walvoil #50202A001
SEPTEMBER, 2006
