BUSH HOG / MATERIAL HANDLING REPAIR PARTS MANUAL
1-20F-3

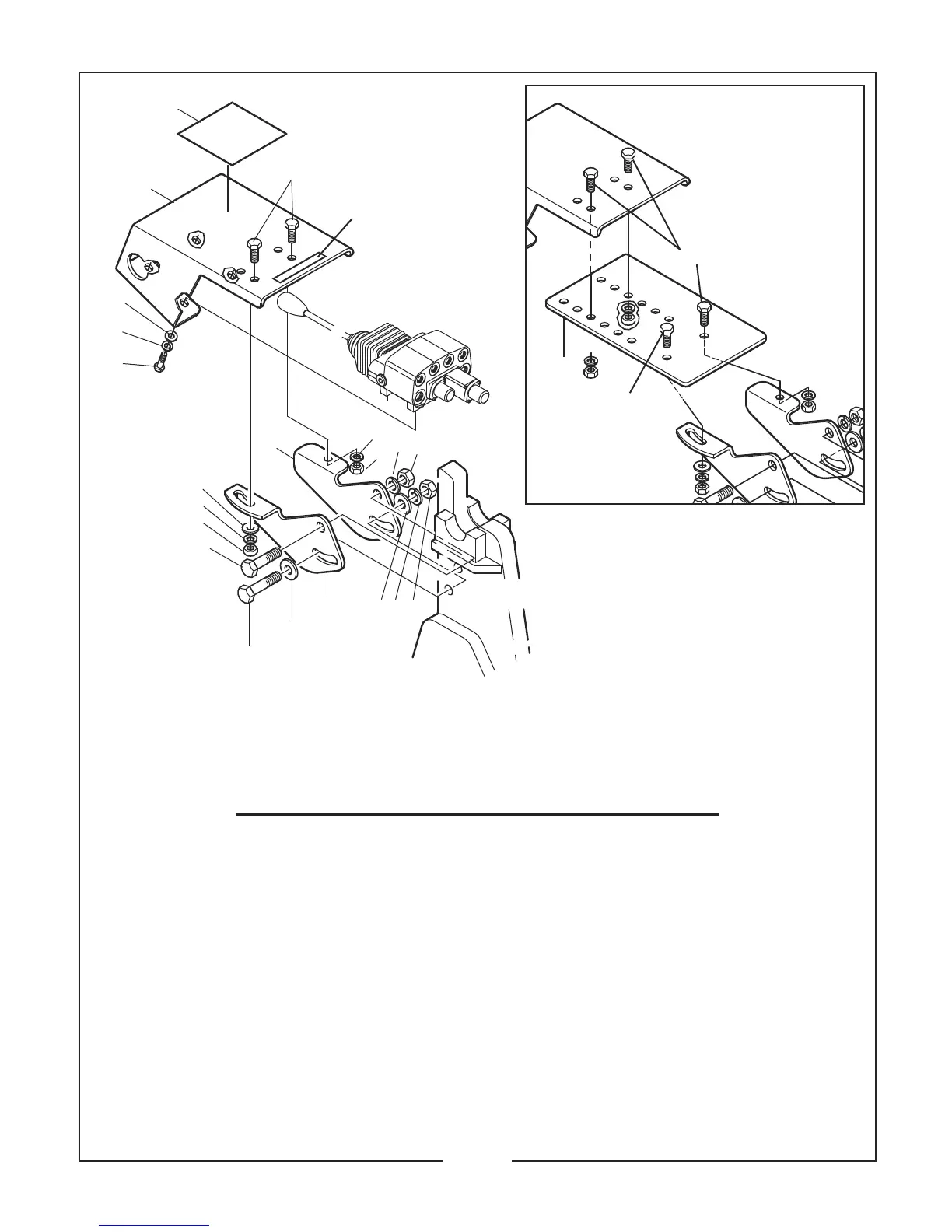

VALVE MOUNTING ASSEMBLY
FOR SMALL WALVOIL VALVE AND WALVOIL SERIES VALVE
For 3045 Loader
1
2
18
16
13
7
3
4
10
11
16, 7, 13
9
14
5
8
15
6
12
6
12
9,15,6,12
9,6,12
17
Valve Stand Extension Assembly
(Optional)
JULY, 2007
REF. PART
NO. NO.
QTY. DESCRIPTION
1 50029341 1 Series Valve Decal (50028958 Walvoil Series Valve)
25H41276 1 Valve Control Decal (25H49978 Walvoil Small Valve)
2 50056035 1 Valve Mount
3 50029328 1 Mount Plate, R.H.
4 50029327 1 Mount Plate, L.H.
5 –––– 4 Lockwasher 5/16”
6 –––– 2 Lockwasher 3/8”
7 –––– 2 Lockwasher 1/2”
8 –––– 4 Capscrew 5/16” x 1”
9 –––– 2 Capscrew 3/8” x 1”
10 –––– 1 Capscrew 1/2” x 2-1/4”
11 –––– 1 Capscrew 1/2” x 2”
12 –––– 2 Hex Nut 3/8”
13 –––– 2 Hex Nut 1/2”
14 –––– 4 Flatwasher 5/16”
15 –––– 1 Flatwasher 3/8”
16 –––– 2 Flatwasher 1/2”
17 50056036 1 Valve Mount Extension
18 50043004 1 Decal, Color Code
