BUSH HOG / MATERIAL HANDLING REPAIR PARTS MANUAL
1-20F-4

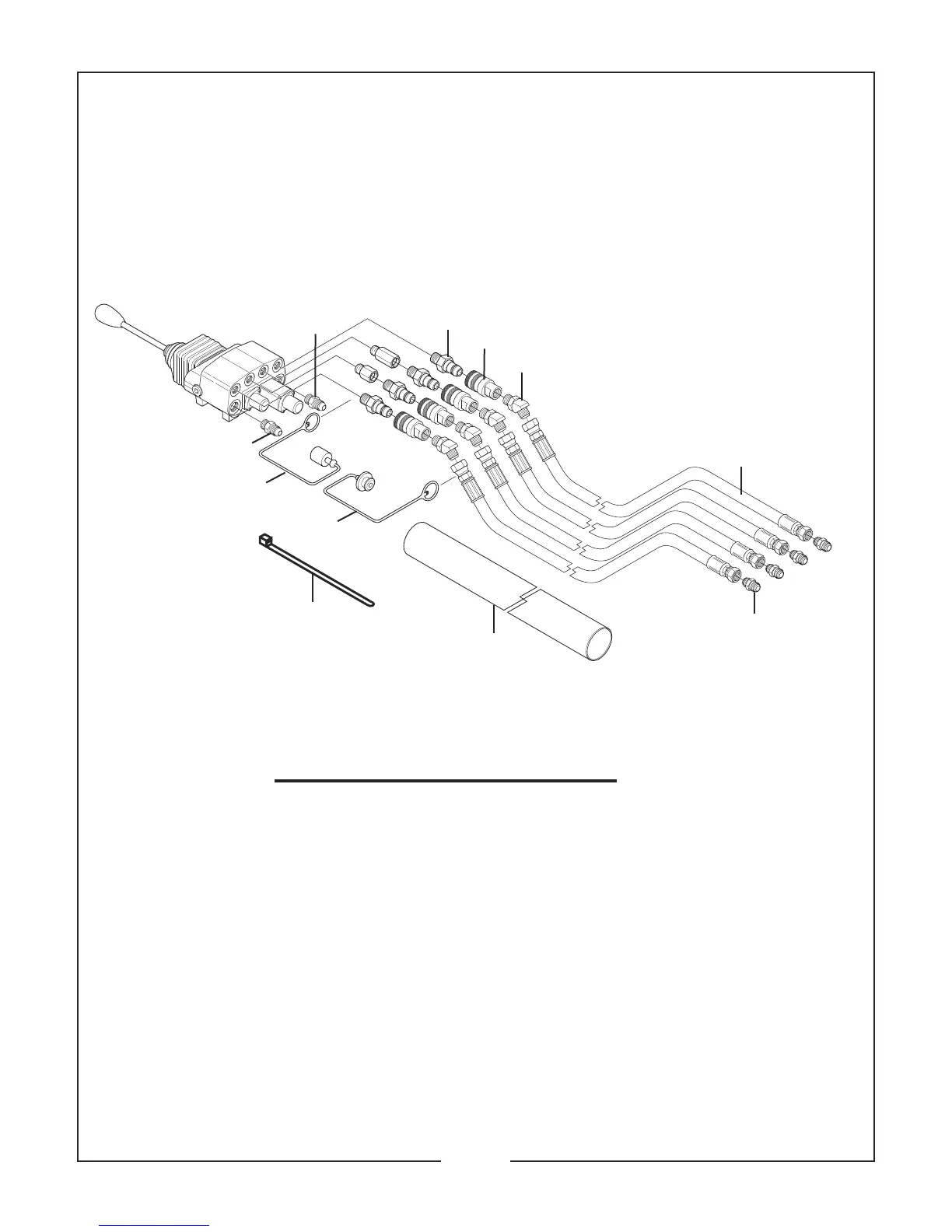

VALVE PLUMBING ASSEMBLY
FOR SMALL WALVOIL VALVE AND WALVOIL SERIES VALVES
Used on Model 3045 Loader
REF. PART
NO. NO.
QTY. DESCRIPTION
1 3050137 1 Male Adaptor
2 50043003 4 O-Ring Coupler
3 50041003 4 Quick Coupler, Female Half
4 50029345 1 Check Valve (50028958 Series Valve)
25H42696 1 Straight Adaptor (25H49978 Small Valve)
5 25H40043 4 Male Union
6 50031124 4 Male 45° Elbow
7 50029334 4 Hydraulic Hose, 44”
8 25H46125 1 Hose Sleeve
9 52161 5 Cable Tie
10 50032505 1 Dust Plug - Green
50032507 1 Dust Plug - Yellow
50032509 1 Dust Plug - Red
50032511 1 Dust Plug - Blue
11 50032506 1 Dust Cap - Green
50032508 1 Dust Cap - Yellow
50032510 1 Dust Cap - Red
50032512 1 Dust Cap - Blue
4
9
8
1
2
3
6
7
5
10
11
SEPTEMBER, 2006
