Bush Hog LOADER 3045 - Page 71

BUSH HOG / MATERIAL HANDLING REPAIR PARTS MANUAL
1-20H-5
REF. PART
NO. NO.
QTY. DESCRIPTION
1 25H46016 1 Adapter Block
2 3050137 1 Straight Thread Adaptor
3 25H46027 2 Hyd. Hose Assy. 12”
4 25H43318 2 Straight Adaptor
5 50007839 1 Male Elbow 90°
6 25H42307 1 Straight Adaptor
7 25H42225 3 Quick Coupler
8 25H40576 1 Elbow Adaptor
9 25H43832 1 Straight Adaptor
10 52161 4 Cable Ties
11 50043740 1 Hyd. Hose Assy. 52”
12 50043739 1 Hyd. Hose Assy. W/Tag 72”
13 25H47274 1 Hyd. Hose Assy. 72”
14 50043741 1 Instruction Sheet
1
2
3
3
6
5
4
4
7
7
7
8
9
11
13
12
Power Beyond Plug
(Supplied with the valve)
10

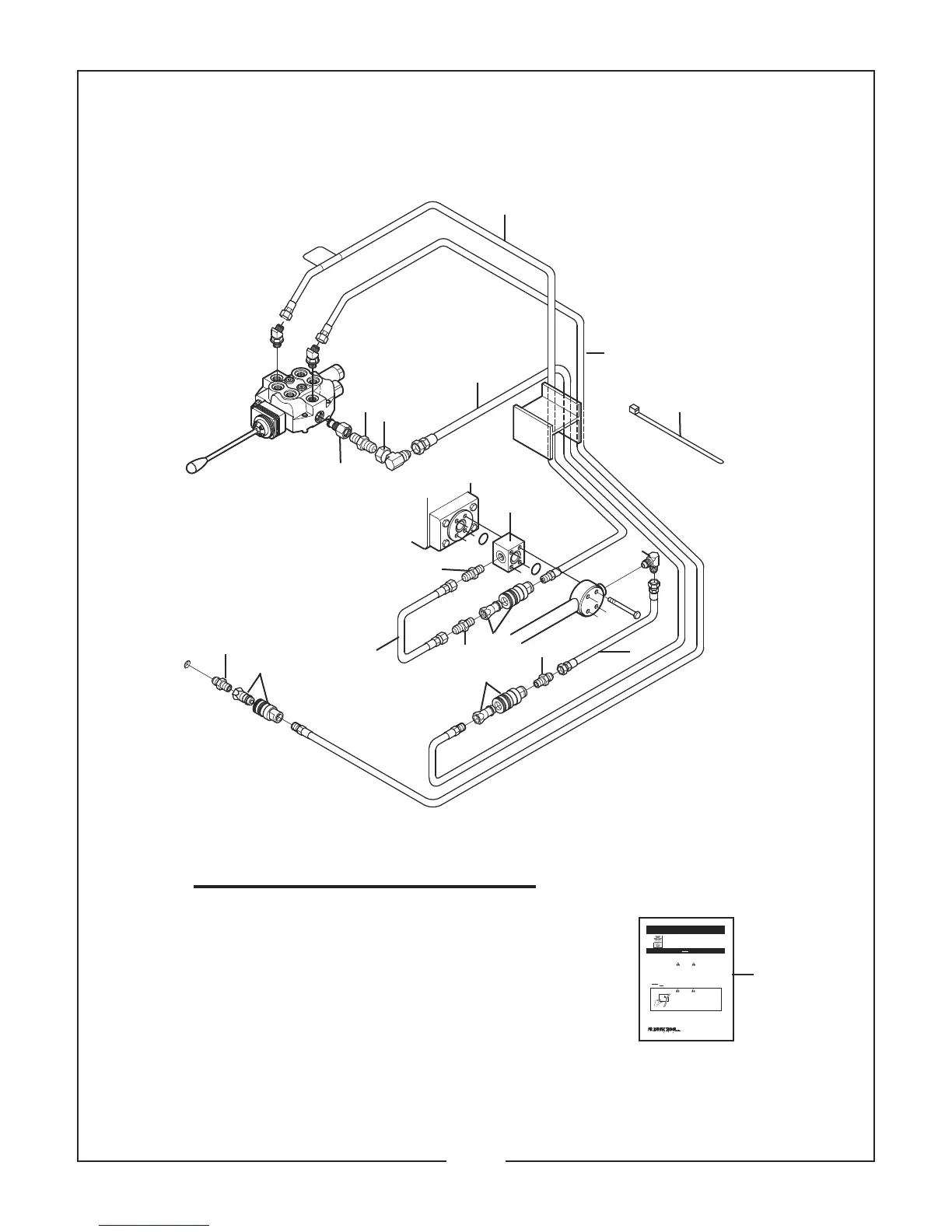

50042883 HYDRAULIC ADAPTOR KIT
Used on Model 3045 Loader
Used with Massey Ferguson 1165, 1455, 1455 V & 1445 Tractors
SEPTEMBER, 2006
01-06-06
867-06
Instruction Sheet No. 50049466
R
P.O. Box 1039 Selma, AL 36702-1039 (334) 874-2700
101 Bush Hog Boulevard Telford, TN 37690-2421 (423) 788-7100
• CAUTION: Before leaving tractor seat, stop engine, lock brake, relieve hydraulic pressure, and remove key.
Do
Not allow bystanders in work area.
WARNING
THE LOADER CAN FALL FROM HYDRAULIC
SYSTEM FAILURE. TO AVOID SERIOUS
INJURY OR DEATH, SECURELY SUPPORT
LOADER BEFORE WORKING UNDERNEATH.
CAUTION
USE A PIECE OF CARDBOARD OR WOOD RATHER
THAN HANDS AND WEAR EYE PROTECTION WHEN
SEARCHING FOR HYDRAULIC LEAKS. ESCAPING
HYDRAULIC OIL UNDER PRESSURE CAN PENETRATE
SKIN. IF OIL IS INJECTED INTO SKIN, IT MUST BE
SURGICALLY REMOVED WITHIN A FEW HOURS BY A
DOCTOR OR GANGRENE MAY RESULT.
14
