Bush Hog LOADER 3045 - Page 72

BUSH HOG / MATERIAL HANDLING REPAIR PARTS MANUAL
1-20H-6
REF. PART
NO. NO.
QTY. DESCRIPTION
1 50043879 1 Hydraulic Swivel Reducer
2 50043880 1 Hydraulic Adapter
3 50044580 1 Hydraulic Elbow 90
4 25H43832 1 Hydraulic Adapter
5 50043878 1 Hydraulic Block
6 25H42696 1 Hydraulic Adapter
7 50044577 1 Instruction Sheet
1
1
6
2
3
5
4
451 MODEL
231S MODEL
Adaptor shipped with
Control Valve.
Adaptor shipped with
Control Valve.
5
4
6

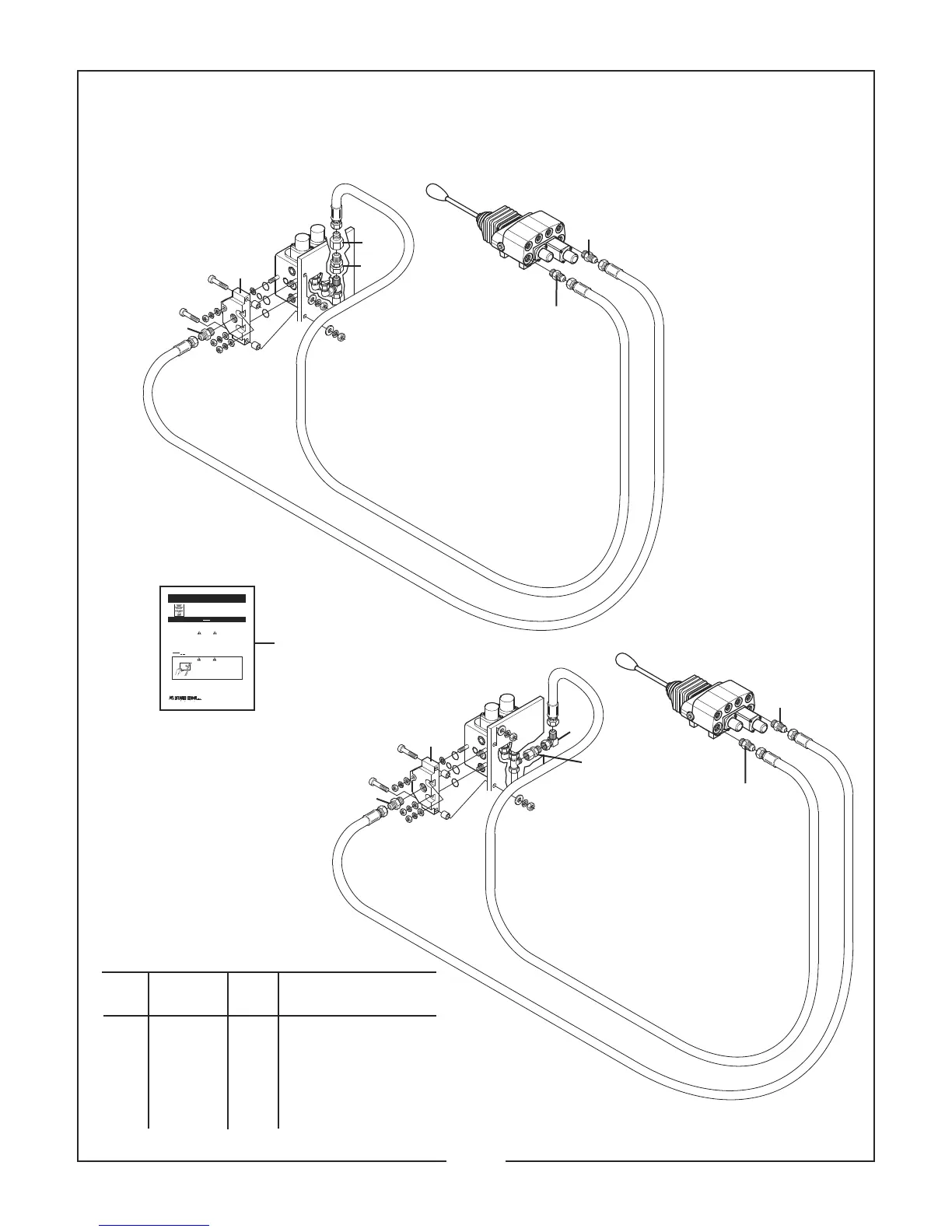

50044571 HYDRAULIC ADAPTOR KIT
Used on Model 3045 Loader
with Massey Ferguson 431, 451, 461 & 231S Tractors
SEPTEMBER, 2006
01-06-06
867-06
Instruction Sheet No. 50049466
