BUSH HOG / MATERIAL HANDLING REPAIR PARTS MANUAL
50056056 HYDRAULIC ADAPTOR KIT
3045 LOADER
Tractor Models: Massey Ferguson 431, 461, 533, 543, 563
REF. PART
NO. NO.
QTY. DESCRIPTION

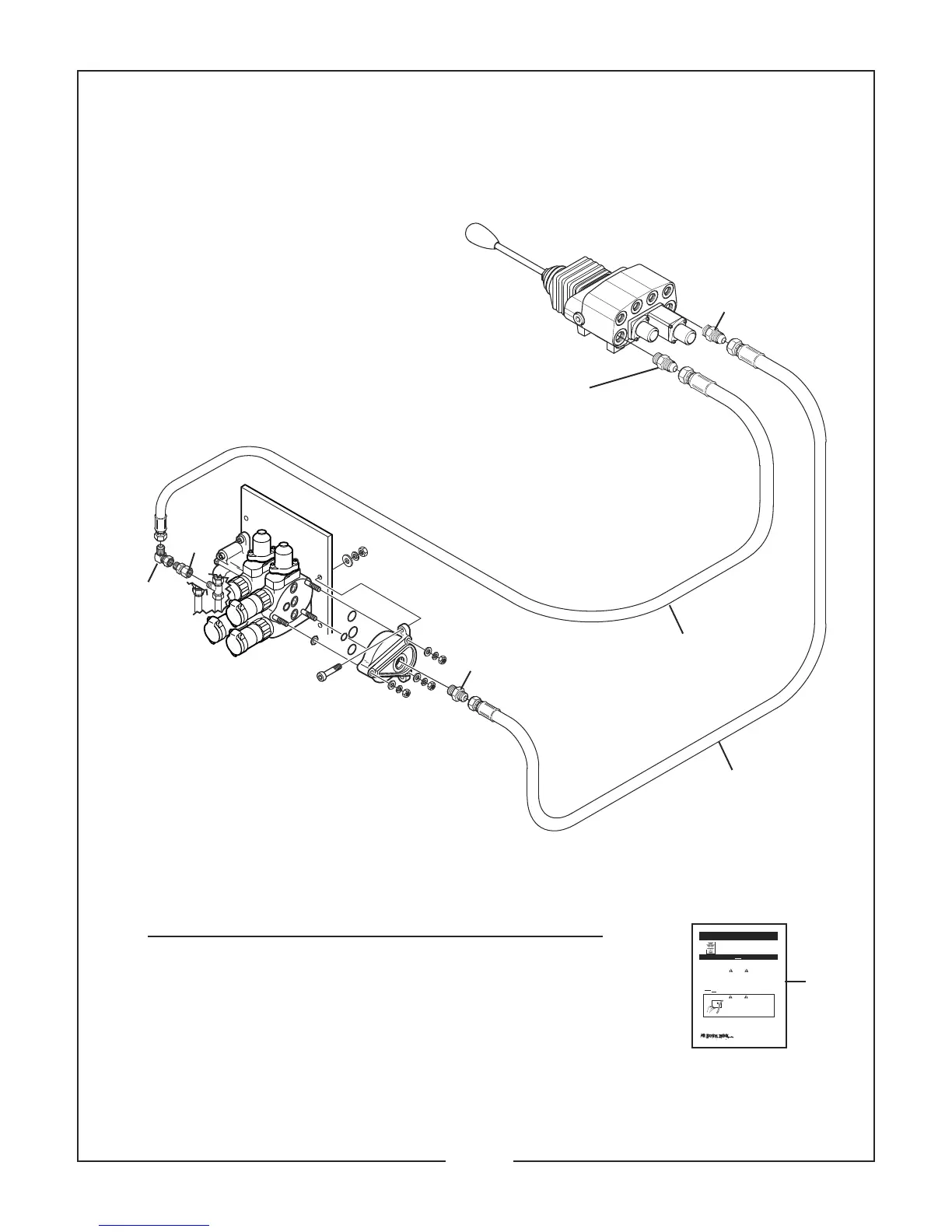

1 50056041 1 Straight Fitting (M22 x 1.5 BSM x 3/4” - 16 JICM)
2 50044580 1 Hydraulic Elbow 90
0
(7/8” - 14 JICFS x 3/4” - 16 JICM)
3 50043879 1 Hydraulic Adaptor (M22 x 1.5 FS x 7/8” - 14 JICM)
4 25H50711 1 Hydraulic Hose (102”)
5 25H49697 1 Hydraulic Hose (93”)
6 25H42696 1 Hydraulic Adaptor (9/16” - 18 ORBM x 3/4”- 16 JICM)
7 50056058 1 Instruction Sheet
2
3
1
6
4
5
01-06-06
867-06
Instruction Sheet No. 50049466
R
P.O. Box 1039 Selma, AL 36702-1039 (334) 874-2700
101 Bush Hog Boulevard Telford, TN 37690-2421 (423) 788-7100
• CAUTION: Before leaving tractor seat, stop engine, lock brake, relieve hydraulic pressure, and remove key.
Do
Not allow bystanders in work area.
WARNING
THE LOADER CAN FALL FROM HYDRAULIC
SYSTEM FAILURE. TO AVOID SERIOUS
INJURY OR DEATH, SECURELY SUPPORT
LOADER BEFORE WORKING UNDERNEATH.
CAUTION
USE A PIECE OF CARDBOARD OR WOOD RATHER
THAN HANDS AND WEAR EYE PROTECTION WHEN
SEARCHING FOR HYDRAULIC LEAKS. ESCAPING
HYDRAULIC OIL UNDER PRESSURE CAN PENETRATE
SKIN. IF OIL IS INJECTED INTO SKIN, IT MUST BE
SURGICALLY REMOVED WITHIN A FEW HOURS BY A
DOCTOR OR GANGRENE MAY RESULT.
7
JULY, 2007
