For any help concerning set up and use of your TV please call the Customer Helpline on page 3
Connections
If you are supplied with a cable from the device which has RED, GREEN, BLUE, RED & WHITE connectors you
must connect via Component (for picture) and by phono cable (for sound).
TV Source should be set to Component/YPbPr.

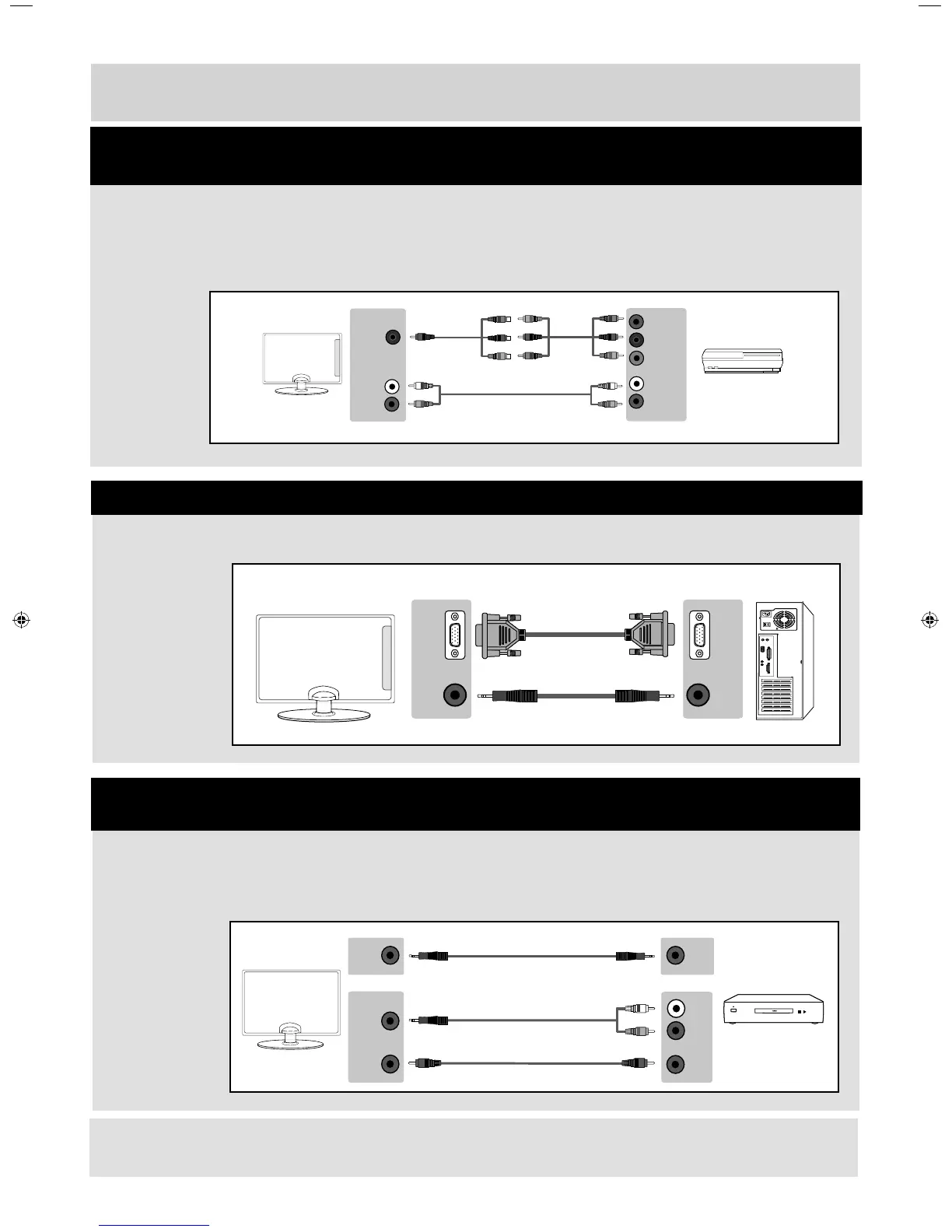

Connecting a High Defi nition (HD) Device
Option 2 - via Component cable
VGA/PC
IN
VGA/PC
OUT
VGA/PC
(AUDIO
IN)
AUDIO
OUT
Source should be set to VGA/PC
Connecting to a device with VGA/PC output (Laptop or Desktop Computer)
3.5mm
EARPHONE
3.5mm
EARPHONE
OPTION 1 for 3.5mm EARPHONE Output
OPTION 2 for 3.5mm EARPHONE Output
COAXIAL
OUT
COAXIAL
IN
3.5mm
AUDIO
IN
L
R
When connecting via the TV’s 3.5mm Earphone output, this will disable the TV speakers.
There are two options to connect a device via the 3.5mm Earphone Output.
Connecting to an external audio device (Amplifi ers, Surround Sound,
Sound Bars etc)
Note: Connecting cables are shown for example only and may not be included. Please check ‘What Is Included In
The Box’ page.
R (red)
L (white)
Mini
YPbPr
Y (green)
PB (blue)
PR (red)
R (red)
L (white)
