Installation
C
ustomer Helpline 0345 257 7271
Extraction
Gas cooking appliances must be adequately
ventilated using an extraction fan or cooker hood
which vents outside.
Positioning
Make sure that there are no combustible or1.
fl ammable materials, such as curtains, in
the vicinity of the appliance.
Furniture and cabinets surrounding the2.
appliance must be made of a material
resistant to temperatures greater than
50ºC.
Surrounding furniture, cabinets and the3.
extractor fan should be positioned in
accordance with the diagram shown in
fi gure 1.
There must be at least 2cm of free space4.
between the back wall and the rear of
the appliance to allow ventilation and air
circulation.
If fi tted, the extractor fan must be at least5.
65cm above the hob. If no extractor fan
is fi tted, the minimum distance between
the hob and any cabinet or other structure
must be 70cm.
Feet height adjustment
The height and level of the appliance can be1.
adjusted by rotating the feet located under-
neath the appliance at each corner as shown in
fi gure 2.
Rotate in a clockwise direction to decrease2.
the height and anti clockwise to increase the
height.
Once the desired height has been achieved, lift3.
the appliance into its location. Do not drag it as
this may cause damage to your fl oor and the
appliance.
Important information for installation engineer
See Detail A
Detail A

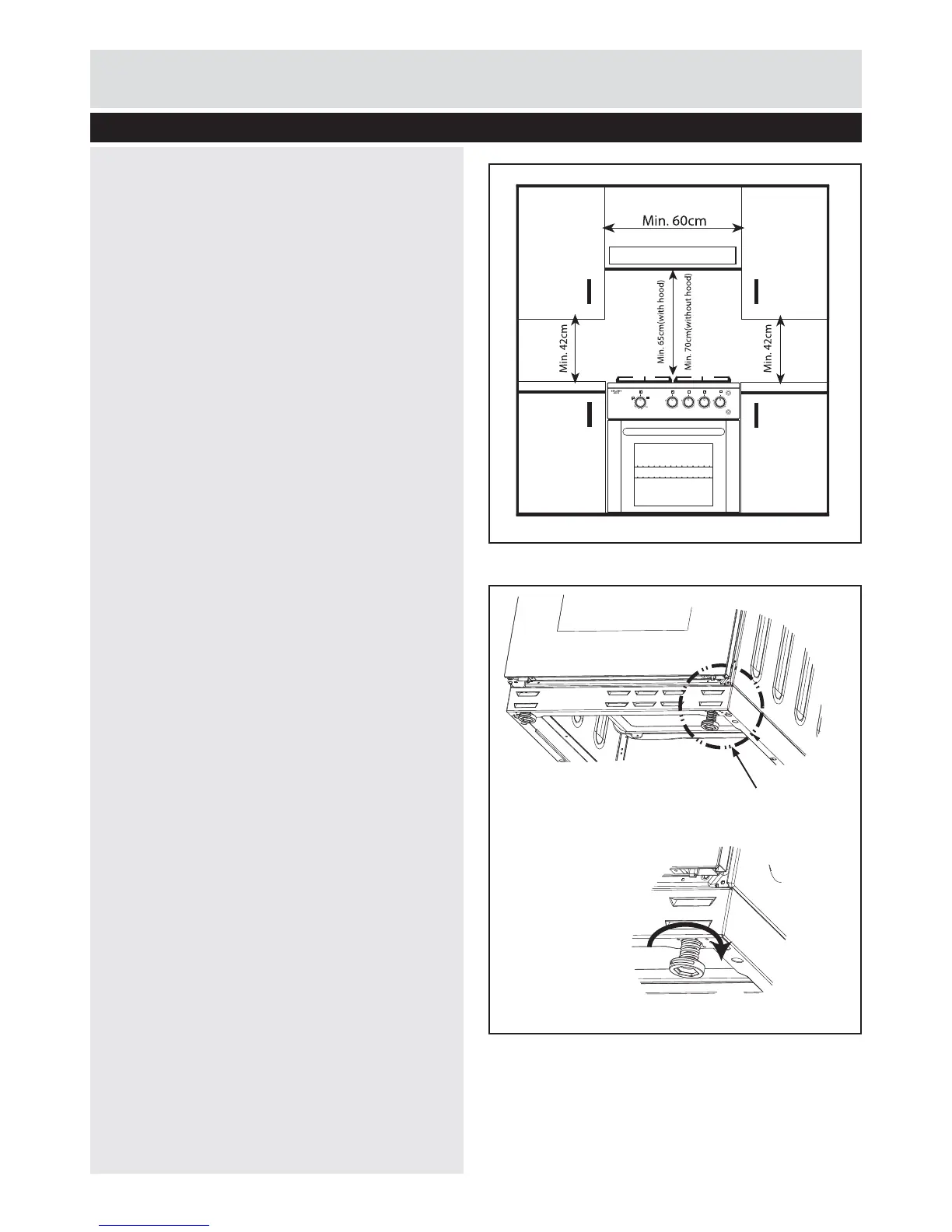

Figure 1
Figure 2
