Bush BFSAT01HD - Digital Box Overview; Front Panel Controls; Rear Panel Connections

14/19V
DC 12V IN

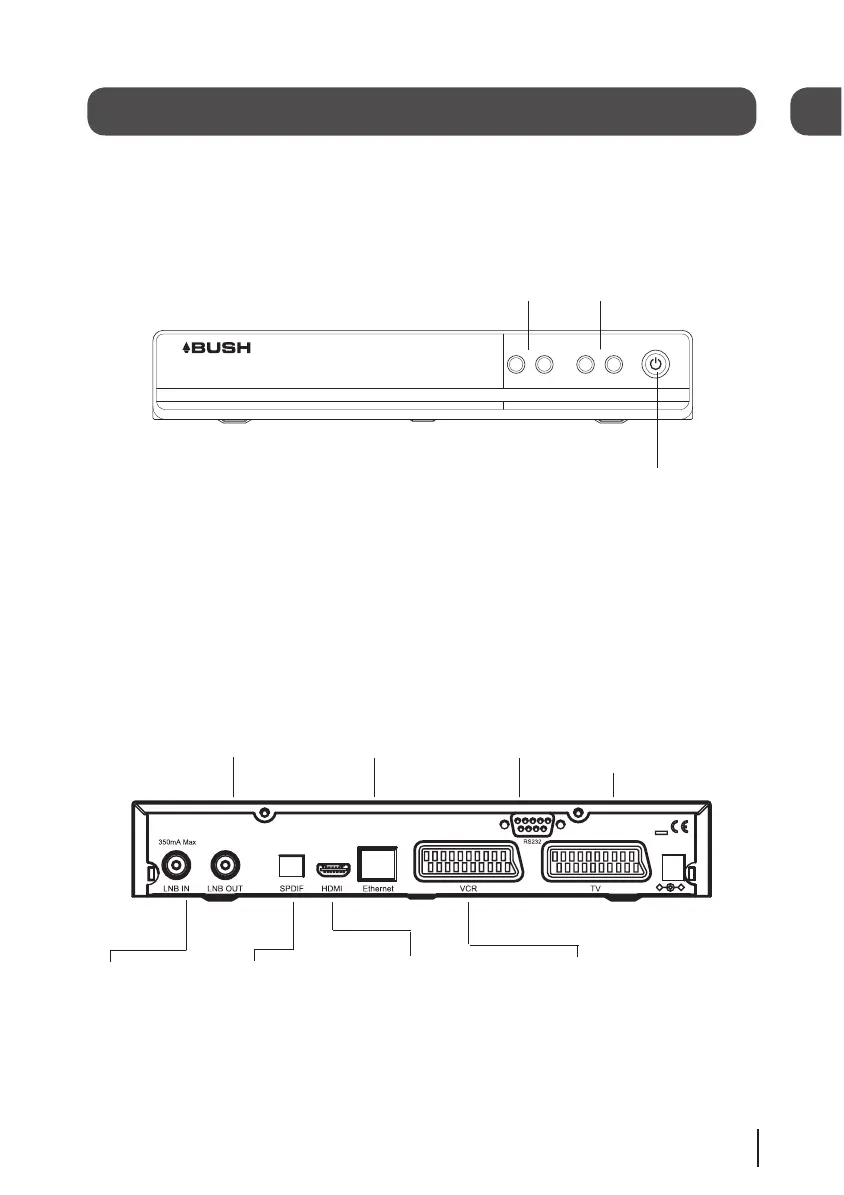

Your digital box
Front view
Rear view
-
+
-
+
LNB IN Signal In
from LNB on satellite
LNB OUT This
has no function and
does not act as a loop
through
SPDIF Digital
Audio Out con-
nection
ETHERNET For future
use (Broadband connec-
tion required)
HDMI High
definition output
(For connection
to a HD Ready
TV)
VCR Standard
definition SCART
output (For
connection to a
recording device)
RS232 For
factory use
only
TV Standard definition
SCART output (For connection
to a non HD TV or recording
device)
STANDBY Power On/
Standby.
2
02
VOL +/- Volume
up and down.
CH +/- Channel up
and down.
