Bush BHAS01UR - YPbPr Connection (High Definition)

BHAS01UR
13

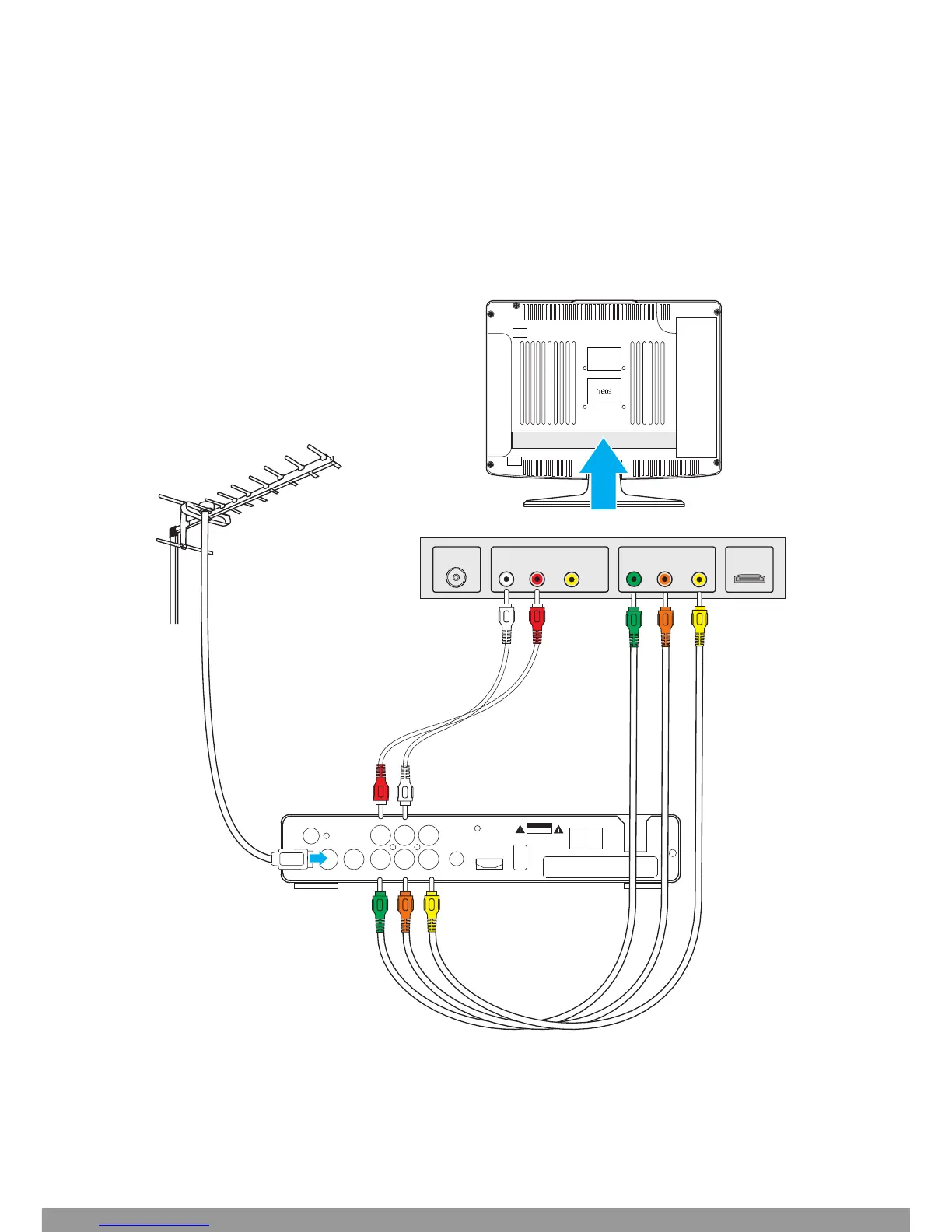

Connect the STB receiver via YPbPr output and audio output
(for high denition viewing)
Connect the antenna to the ANT IN socket on the receiver.1
Connect the receiver to the TV set via the green, red and blue component AV 2
cables (this will provide video), and the composite red and white cables (which will
provide audio).
