Connections
Connector Type Cables Device
VGA
Connection
(back)
AUDIO IN
PC/YPbPr
Audio
Connection
(back)
YPbPr/PC Audio Cable
HDMI
Connection
(side&back)
SPDIF
SPDIF
(Optical Out)
Connection
(back)
BACK AV
Back AV
(Audio/Video)
Connection
(back)
Audio Video Cable
HEADPHONE
Headphone
Connection
(side)
YPBPR
YPbPr Video
Connection
(back)
PC to YPbPr Connection Cable
USB
Connection
(side)
CI
Connection
(side)
CAM
module
LAN
Ethernet
Connection
(back)
LAN / Ethernet Cable

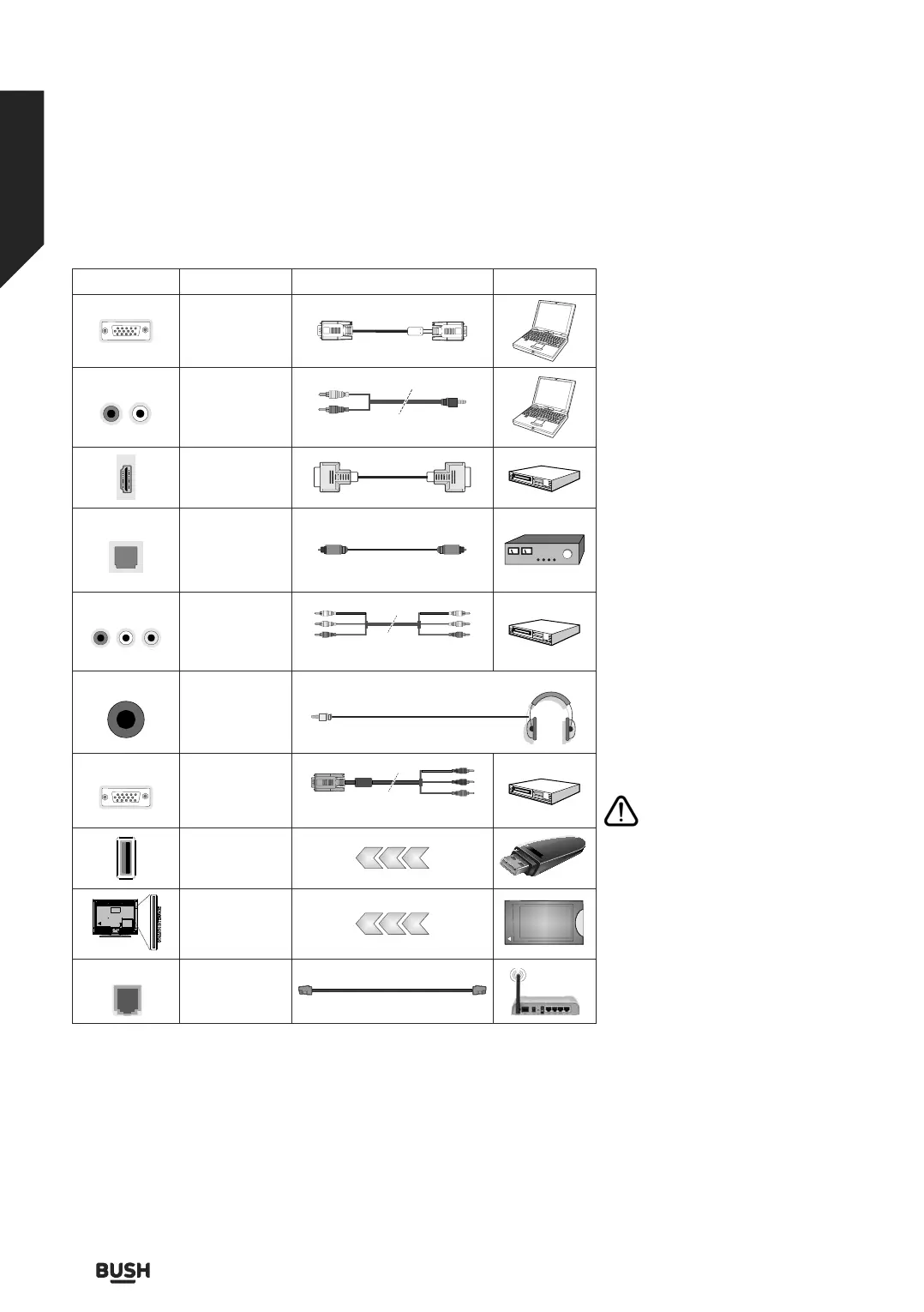

See the illustrations on the left side.
You can use YPbPr to VGA cable to
enable YPbPr signal via VGA input.
You cannot use VGA and YPbPr at
the same time. To enable PC/YPbPr
audio, you will need to use the back
audio inputs with a YPbPr/PC audio
cable for audio connection.When
using the wall mounting kit (available
from third party in the market, if not
supplied), we recommend that you
plug all your cables into the back of the
TV before mounting on the wall. Insert
or remove the CI module only when
the TV is SWITCHED OFF. You should
refer to the module instruction manual
for details of the settings. The/Each
USB input of your TV supports devices
up to 500mA. Connecting devices that
have current value above 500mA may
damage your TV. When connecting
equipment using a HDMI cable to your
TV, to guarantee sucient immunity
against parasitic frequency radiation
and trouble-free transmission of high
definition signals, such as 4K content,
you have to use a high speed shielded
(high grade) HDMI cable with ferrites.
If you want to connect a device
to the TV, make sure that both
the TV and the device are turned o
before making any connection. After
the connection is done, you can turn
on the units and use them.
Connections
Bringing it all together
Connections14
