Stand Installation & Wall Mounting

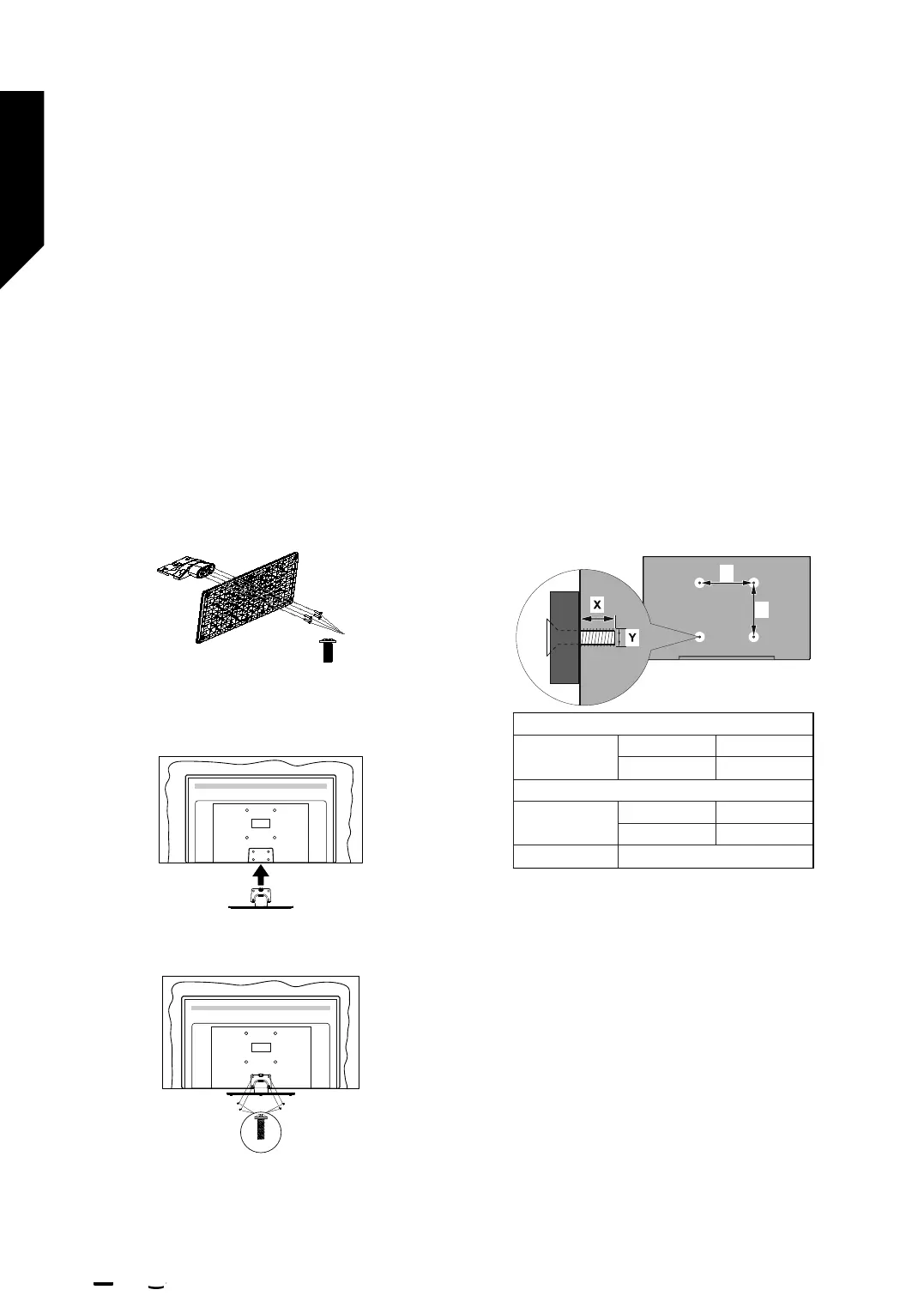

Assembling / Removing the stand
Preparations
Take out the stand(s) and the TV from the packing case
and put the TV onto a work table with the screen panel
down on a clean and soft cloth (blanket, etc.)
•Use a flat and firm table bigger than the TV.
•Do not hold the screen panel part.
•Make sure not to scratch or break the TV.
Assembling the stand
1. The stand of the TV consists of two pieces. Install
these pieces together.
x4
2. Place the stand(s) on the stand mounting pattern(s)
on the rear side of the TV.
3. Insert the screws (M4 x 12) provided and tighten them
gently until the stand is properly fitted.
x4
Removing the stand from the TV
Be sure to remove the stand in the following way when
using a wall mount bracket or repacking the TV.
•Put the TV onto a work table with the screen panel down
on a clean and soft cloth. Leave the stand(s) protruding
over the edge of the surface.
•Unscrew the screws that fix the stand(s).
•Remove the stand(s).
When using the wall mount bracket
Your TV is also prepared for a VESA-compliant wall mount
bracket. If it is not supplied with your TV, contact your
local dealer to purchase the recommended wall mount
bracket.
Holes and measurements for wall mount bracket
installation;
W
H
VESA WALL MOUNT MEASUREMENTS
Hole Pattern
Sizes (mm)
W H
200 200
Screw Sizes
Length (X)
min. (mm) 10
max. (mm) 13
Thread (Y) M6
Other information
