15
Connections
Electrical
or online at www.bush-support.com If you still require further assistance, call one of our experts on 0345 257 7271.

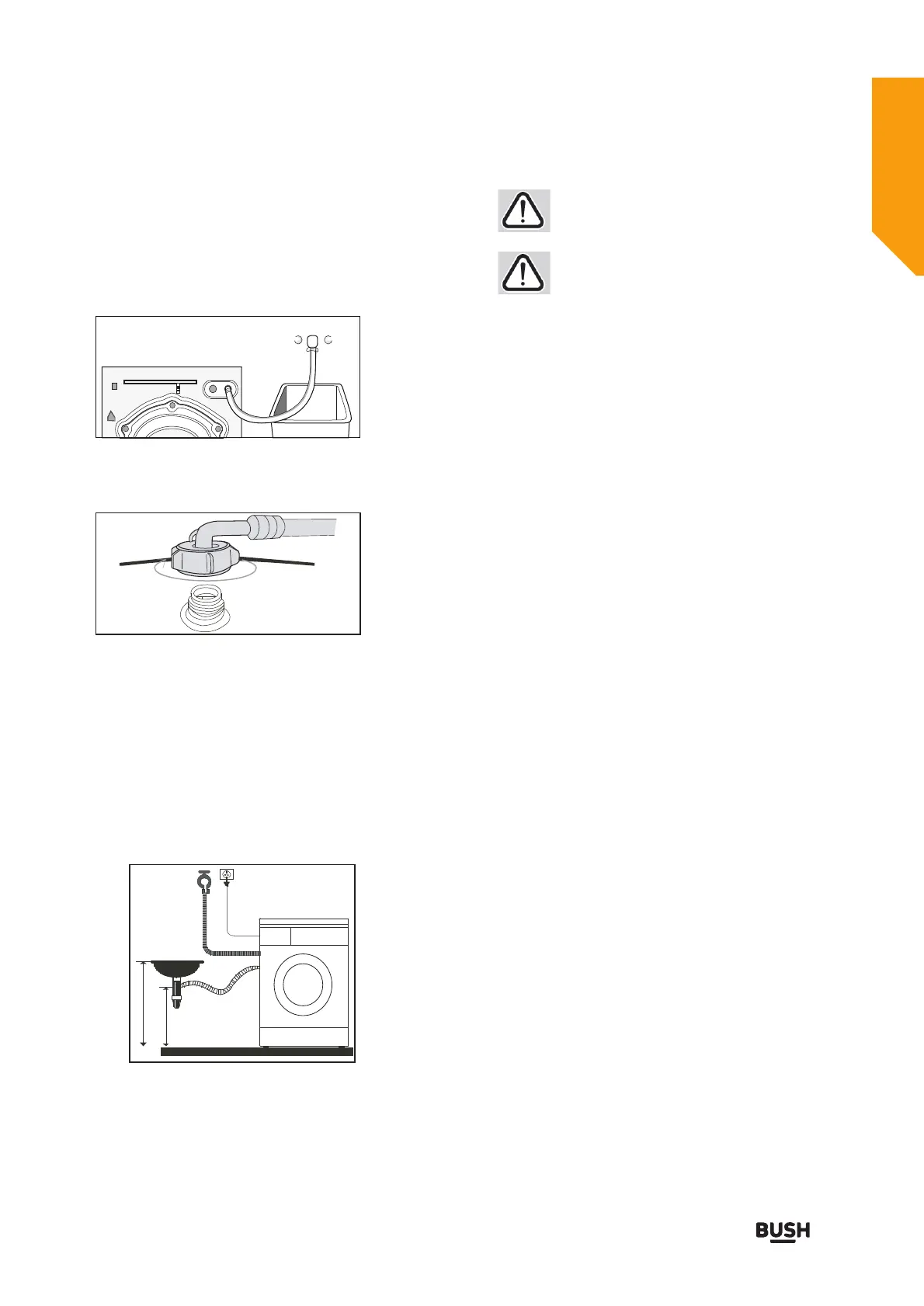

Water inlet hose connections
Important: This MUST only bewasher-dryer
connected to a cold water supply.
1: Connect the water inlet hose, the angled
connection attaches to the water inlet on the
back of the washer-dryer. (Fig 7)
2: The straight connection attaches to the water
supply valve. (Fig 8)
3:Ensure all seals are in place before connecting.
Important: Only tighten the hose connection nut
by hand - do not overtighten.
Drain hose connections
Important: The height of the top of the curve in
the drain hose MUST be between 60 - 100cm
from the floor. (Fig 9)
Important: Drain hose can
be fitted to the drainer or a wash basin.
Max.100cm
Min.60cm
Fig 9
Any electrical work that is required to
install this appliance MUST be carried
out by a qualified electrician.
Warning: THIS APPLIANCE MUST BE
EARTHED
Before making any electrical connections,
ensure that:
Electrical safety is only guaranteed when the
earth system of your house is in accordance
with the related local regulations.
•
•
Do not bend, stretch or pull the supply cable
to avoid electric shock.
•
Ensure the power socket is suiable for the
maximum power of the machine (fuses in the
power circuit must be 13 amp).
•
The supply voltage should be the same as that
indicated in the technical specifications and
the applicance rating plate.
•
The appliance should be earthed and in
complicance with the applicable law.
•
When installed, the power socket must be
within easy reach.
•
If the socket outlets in your home are not
suitable for the plug supplied with this unit
check with a qualified electrician for
replacement.
•
To avoid the risk of overloading your plug
socket, the use of adapters, multiple connectors
•
The applicance must be connected to a
220-240 volt 50Hz AC supply by means of
a three pin socket, suitably earthed and
protected by a 13 amp fuse.
•
Should the fuse need to be replaced, a 13
amp fuse approved to BS 1362/A must be
used.
•
The plug contains a removable fuse cover
that must be refitted when the fuse is replaced.
if the fuse cover is lost or damaged, the plug
must not be used until a replacement cover
has been fitted or the plug is replaced.
•
A damaged plug should be cut off as close to
the plug body as possible, the fuse should be
removed and the plug disposed of safely.
Installing your washer-dryer
Bringing it all together
Installing your washer-dryer
or extension cables are not recommended.
Fig 7
Fig 8
