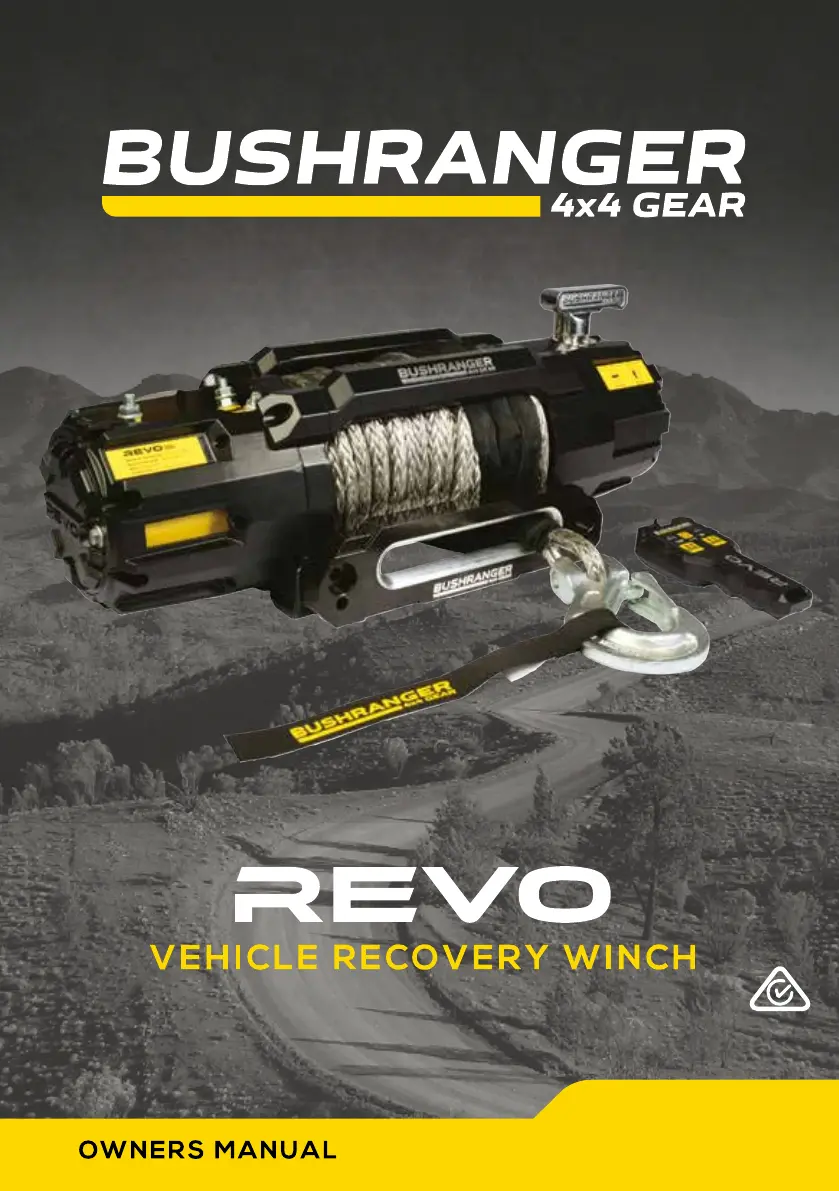

Bushranger REVO 12S - User Manual

Questions and Answers

M
marysmithAug 5, 2025
Why my Bushranger REVO 12S will not operate?
- R
  Rebecca FitzgeraldAug 5, 2025
  If your Bushranger Winch isn't operating, there are several potential causes. It could be due to a cut circuit (check the battery lead), a weak battery (recharge or replace it, ensuring it's at least 650CCA), bad wiring connections (reconnect them tightly), a damaged contactor (replace it), a cut circuit on the switch (replace the switch), damaged motor or worn brushes (replace the motor or brushes), or faulty motor wirings (replace the wirings).
N
Nancy CastilloAug 9, 2025
What to do if motor runs extremely hot in Bushranger REVO 12S Winches?
- W
  Wesley ClarkAug 9, 2025
  If the motor of your Bushranger Winches runs extremely hot, it could be due to a long period of operation (allow it to cool), a damaged motor (replace or repair the motor), or a damaged or inoperative brake (replace or repair the brake).
X
xavier78Aug 14, 2025
Why Bushranger Winches motor runs in only one direction?
- J
  Julie AdamsAug 14, 2025
  If the motor of your Bushranger Winches runs in only one direction, it could be due to broken wirings or bad connections (reconnect or replace the wirings), a damaged or stuck contactor (replace the contactor), an inoperative switch (replace the switch), or faulty wiring (replace the wiring).
B
bakerjacobAug 18, 2025
What to do if Bushranger REVO 12S brake jam?
- W
  William SantiagoAug 18, 2025
  A brake jam in Bushranger Winches can occur if the proportional mechanism is damaged or worn (replace it), the gear box is damaged (replace the damaged components), the gear train is damaged (replace the damaged components), or due to overload operation (stop the winch operation and reduce the load).
A
Andre PhillipsAug 22, 2025
How to fix drum if it will not free spool in Bushranger REVO 12S Winches?
- J
  jacqueline41Aug 22, 2025
  If the drum of your Bushranger Winches will not free spool, it could be because the clutch does not disengage (engage the clutch), the 1st stage shaft is damaged (replace the 1st stage shaft), the brake is damaged (replace the brake), or the motor output shaft is damaged (replace the motor output shaft).
K
Kelly JohnstonAug 27, 2025
What to do if brake fails to operate in Bushranger REVO 12S Winches?
- L
  Linda HillAug 27, 2025
  If the brake fails to operate on your Bushranger Winches, it may be caused by the gear train mechanically binding up (check to ensure the winch is mounted on a flat, rigid surface), a damaged brake (replace brake), a damaged gear box (replace gear box), or a damaged ratchet (replace ratchet components).
B
Brandon JonesAug 30, 2025
Why is braking distance too long for Bushranger REVO 12S Winches?
- J
  Jessica HodgeAug 31, 2025
  If the braking distance is too long for your Bushranger Winches, it is likely due to a worn brake, which should be replaced.

Summary

Installation Guide

Winch Mounting Procedures

Details on how to securely mount the winch to a flat, hard surface or compatible bull bar.

Gearbox and Motor Rotation

Wiring and Rope Preparation

Winch Wiring Diagram

Rope Preparation Steps

Winching Principles

Load Rating and Duty Cycles

Explains how load and speed vary with rope on the drum and defines duty cycle ratings.

Required Pulling Force Calculation

Formula and factors for determining the necessary pulling force for vehicle recovery.

Winching Procedures and Operation

Clutch Operation Guide

How to engage and disengage the winch clutch for free spooling and operation.

Powering Out Rope Procedures

Wireless Controller Setup and Use

Preparation for Winching

Winch Operation Sequence

Step-by-step guide for checking rope, attaching hook, using damper, and preparing vehicle.

Securing Vehicle and Disconnecting

Troubleshooting and Servicing

Troubleshooting Common Issues

Identifies common winch problems, their causes, and recommended remedies.

REVO 10 Specifications

REVO 12 Specifications

Performance Specifications

Detailed performance data including load, line speed, and motor current per layer.

Warranty Policy

Warranty Coverage and Exclusions

Details the warranty coverage, limitations, and conditions for Kingsley products.

Claims and Consumer Rights

Procedures for warranty claims and information on Australian Consumer Law rights.

Bushranger REVO 12S Specifications

General

Model	REVO 12S
Gear Train	3-Stage Planetary
Gear Ratio	216:1
Cable Type	Synthetic Rope
Cable Diameter	9.5 mm
Brake	Automatic Load-Holding
Mounting Bolt Pattern	254 mm x 114.3 mm
Voltage	12V
Rated Line Pull	12, 000 lbs (5443 kg)
Motor	Series Wound
Remote Control	Wireless Remote
Fairlead	Aluminium Hawse
