ButterflyMX Access Controller
Receives data from the Vehicle Reader and
requests from the ButterflyMX Mobile App
Triggers the 3rd party garage door controller
to open the garage gate or door.
3rd Party Garage Door Controller
Operates the garage door opener,
accepts requests to open from
external devices such as the
ButterflyMX Access Controller.
Garage Door Opener
Device that physically
opens and closes the
garage door.
ButterflyMX Vehicle Reader
Reads ButterflyMX Vehicle Stickers and
sends the data to the ButterflyMX
Access Controller.
Support: (800) 398-4416,ext. 2
Mon - Fri: 6am - 10pm E
Sat - Sun: 8am - 8pm ET
Email: support@butterflymx.com
1

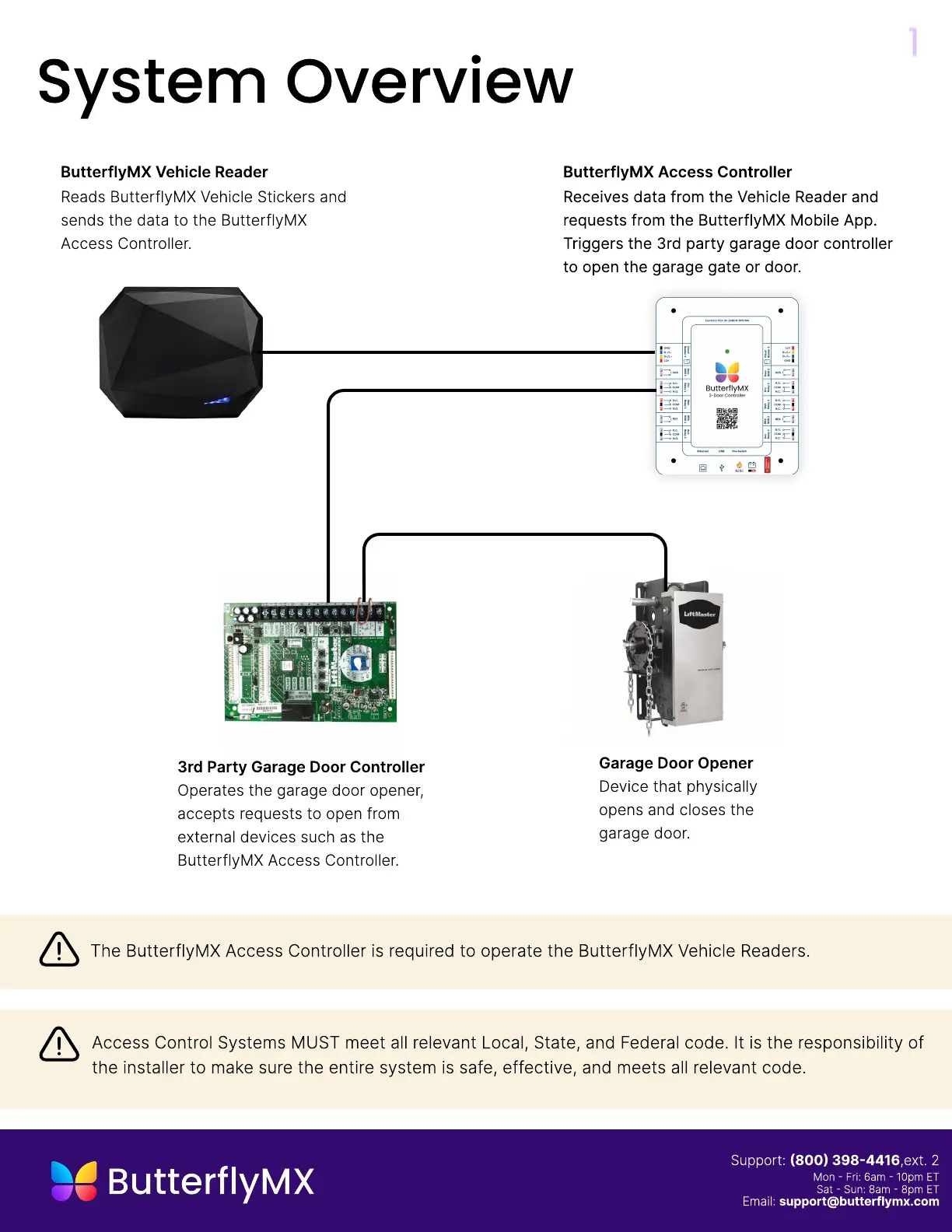

System Overview
The ButterflyMX Access Controller is required to operate the ButterflyMX Vehicle Readers.
Access Control Systems M
U
ST meet all relevant
L
ocal, State, and Federal code.
I
t is the responsi
b
ility of
the installer to make sure the entire system is safe, effective, and meets all relevant code.
