Butternut HF9V - Parts List

- 25 -
Butternut
®

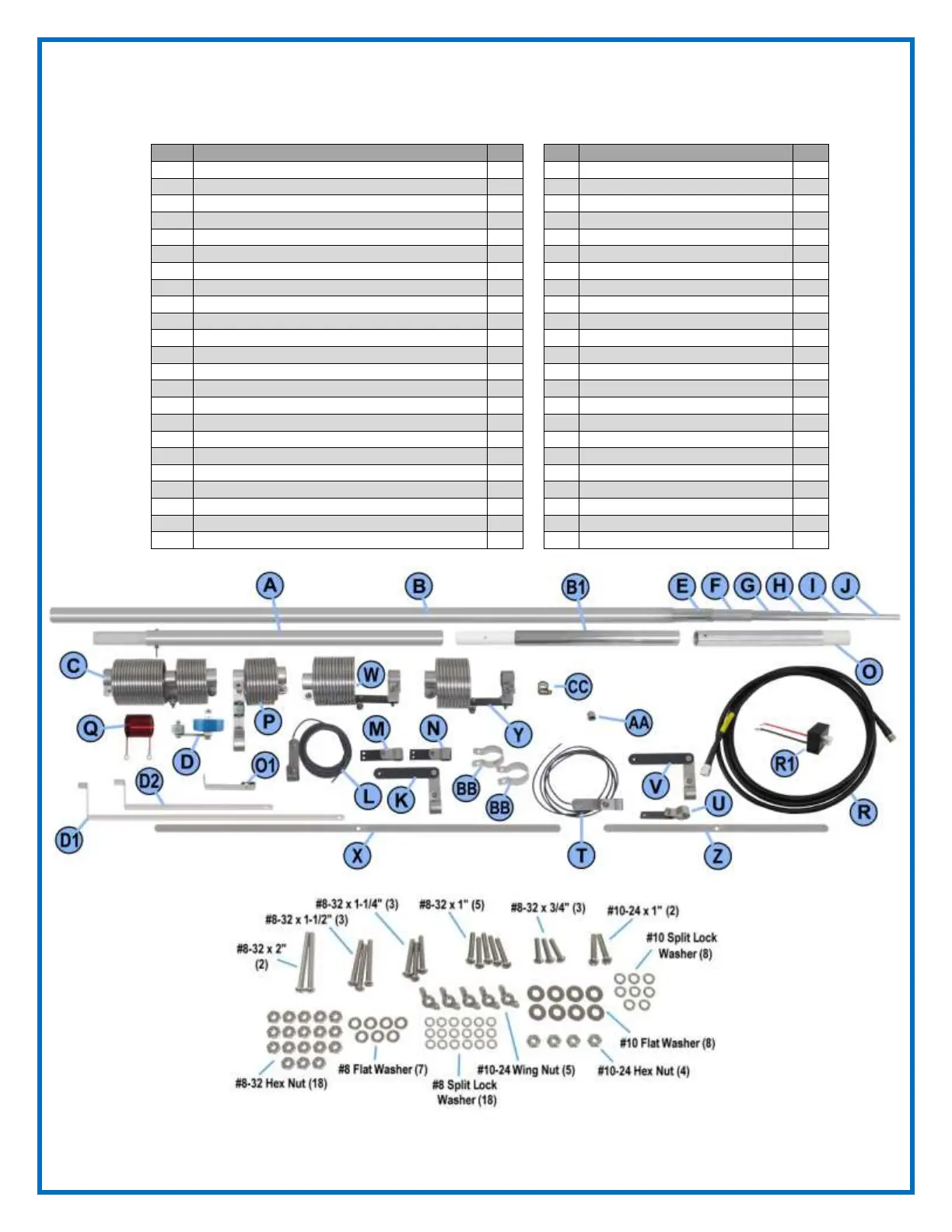

HF9V Parts List
Ref
Description
Qty
Ref
Description
Qty
A
Tube A with Insulator, 1-1/8” dia x 24” long
1
T
Wire Clamp, 5/8” with Wire - 6M
1
B
Tube B element, 1-1/8” dia x 48” long
1
U
Wire Clamp, 3/4” with Insulator - 6M
B1
Tube B1 with Insulator, 1-1/8” dia x 12” long
1
V
Wire Clamp, 7/8” with Insulator - 6M
1
C
Coil Assembly - 80/40 meters
1
W
Coil Assembly - 17 meters A-17-12
1
D
Capacitor Assembly 80/40 meters
1
X
Strip, Long - 17 meters
1
D1
Capacitor Bracket, Long, 80 meters
1
Y
Coil Assembly - 12 meters A-17-12
1
D2
Capacitor Bracket, Short, 40 meters
1
Z
Strip, Short - 12 meters
1
E
Tube E, 1” dia x 48” long
1
AA
Vinyl End Cap (Black or Grey)
1
F
Tube F, 7/8” dia x 48” long
1
BB
Capacitor Bracket Clamp
2
G
Tube G, 3/4” dia x 48” long
1
CC
Adjustable Element Clamp, Small
1
H
Tube H, 5/8” dia x 48” long
1
# 8-32 X 2” Long, Screw
2
I
Tube I, 1/2” dia x 48” long
1
# 8-32 X 1-1/2” Long, Screw
3
J
Tube J, 3/8” dia x 36” long
1
# 8-32 X 1-1/4” Long, Screw
3
K
Wire Clamp, 7/8” with Insulator - 15 meters
1
# 8-32 X 1” Long, Screw
5
L
Wire Clamp, 1/2” with Wire - 15 meters
1
# 8-32 X 3/4” Long, Screw
3
M
Wire Clamp, 5/8” with Insulator - 15 meters
1
# 8 Split Lock Washer
18
N
Wire Clamp, 3/4” with Insulator - 15 meters
1
# 8-32 Hex Nut
18
O
Coil Support Tube with Insulator, 1-1/8” dia x 9” - 30 M
1
# 8 Flat Washer
7
O1
Coil Tube Support “L” Bracket - 30 meters
1
#10-24 X 1” Long, Screw
2
P
Coil/Capacitor Assembly - 30 meters
1
#10 Split Lock Washer
8
Q
Coil Q Base, Matching
1
#10 Flat Washer
8
R
75 ohm Matching Coaxial Cable
1
#10-24 Hex Nut
4
R1
Feedpoint Connector block with Ring Terminals
1
#10-24 Wing Nut
5
