Distributed Energy Storage System Build Your Dreams

2.4

Electrical Connection

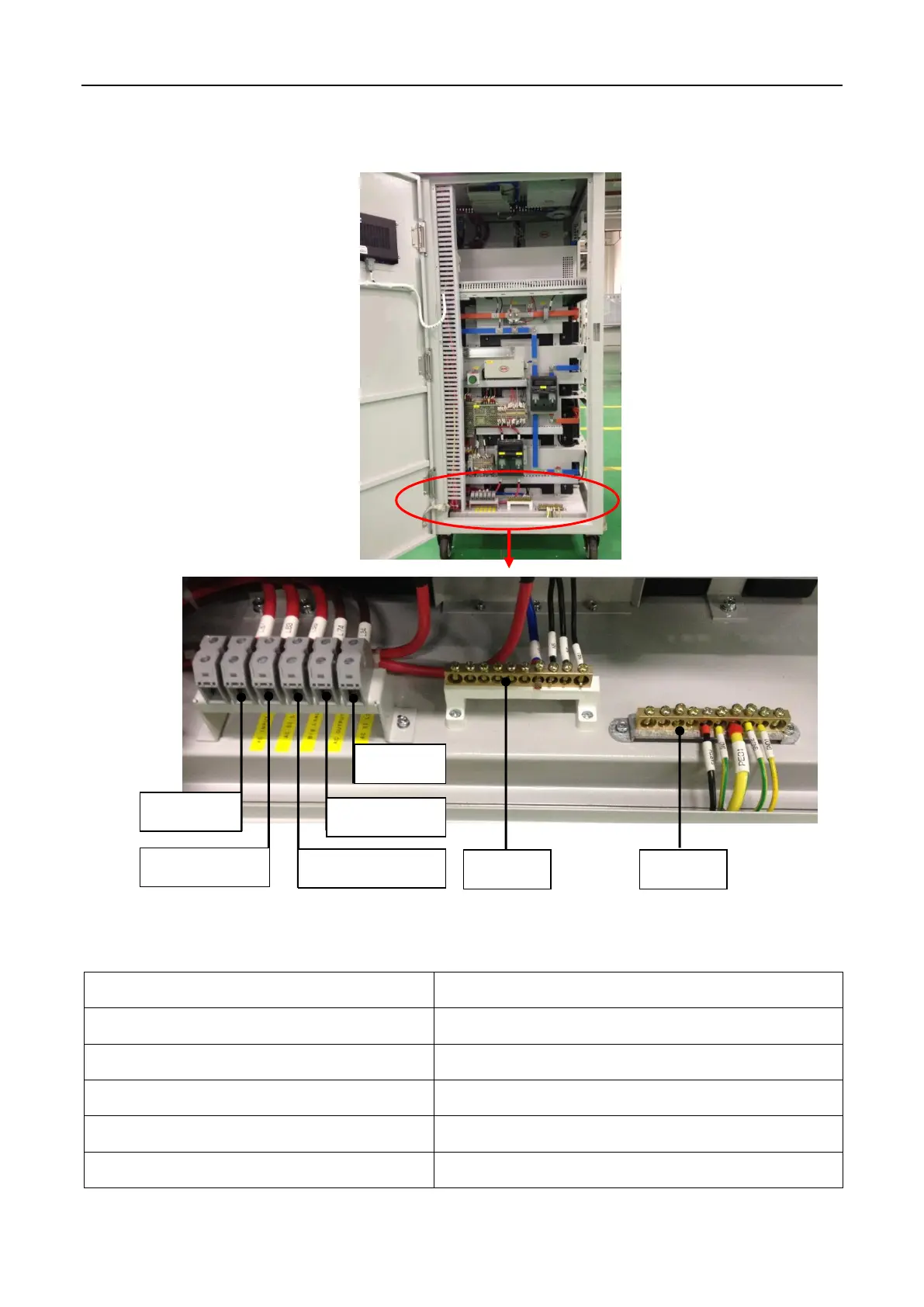

Fig 2.3 Terminal block

Table 2.3 Description of terminal block

TERMINAL BLOCK

DESCRIPTION

AC-INPUT-L

Grid input ( <15kw)

AC-SI-L1

Big solar inverter input (3kW～10kW)

BIGLOAD

Big load input (<15kw) – Non essential loads

AC-OUTPUT-L

Small load input (≤3kw) – Essential loads

AC-SI-L2

Small solar inverter input (≤3kw)

AC-SI-L2

AC OUTPUT-L

BIG LOAD

AC-SI-L1

AC-INPUT-L

EARTH
