BYD Suri Owner‘s Manual
Air Conditioning System 1-106

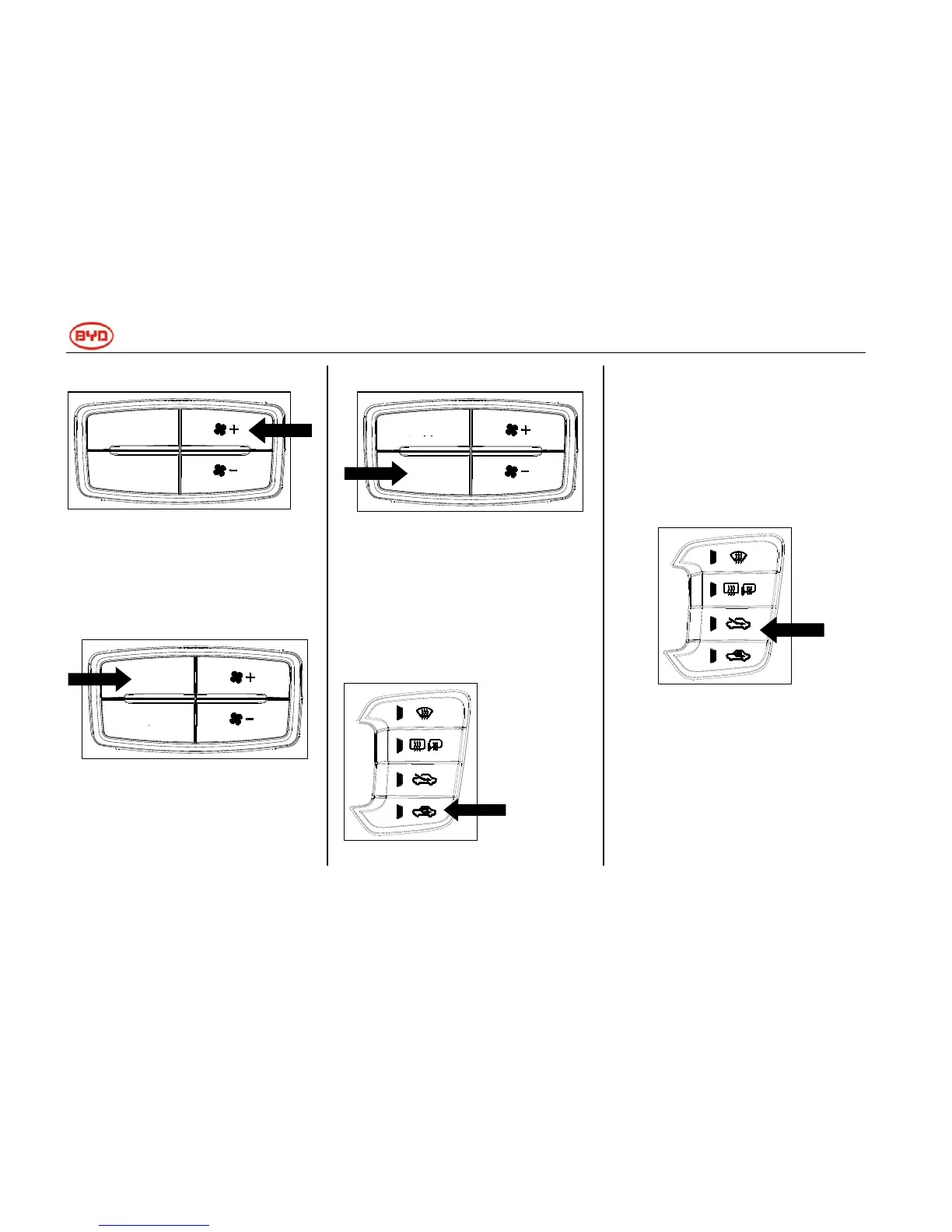

Button for Decreasing Air Volume
Button for Increasing Air Volume
Operate this button to set a necessary
fan speed; the faster the speed is, the
more air volume is input. Press ―+‖
button or ―-‖ button to increase or
decrease air volume respectively.
Button for Increasing Temperature
Button for Lowering Temperature
Operate this button to set a necessary
air outlet temperature; the higher the
air outlet temperature is, the hotter the
air outlet is and vice versa.
Press ―+‖ button or ―-‖ button to
increase or lower air outlet
temperature respectively.
Internal Circulation Button
Internal Circulation——Enables
in-vehicle air to re-circulate.
When pressing internal circulation
button, indicator light (green) on the
internal circulation button will be
turned on, and air inlet mode is under
internal circulation.
External Circulation Button
External Circulation——introducing
air outside into the system.
When pressing external circulation
button, indicator light (green) will be
turned on, and air inlet mode is under
external circulation;
TEMP +
TEMP-
TEMP+
TEMP-
TEMP +
TEMP-
