Specification of Parts8-5

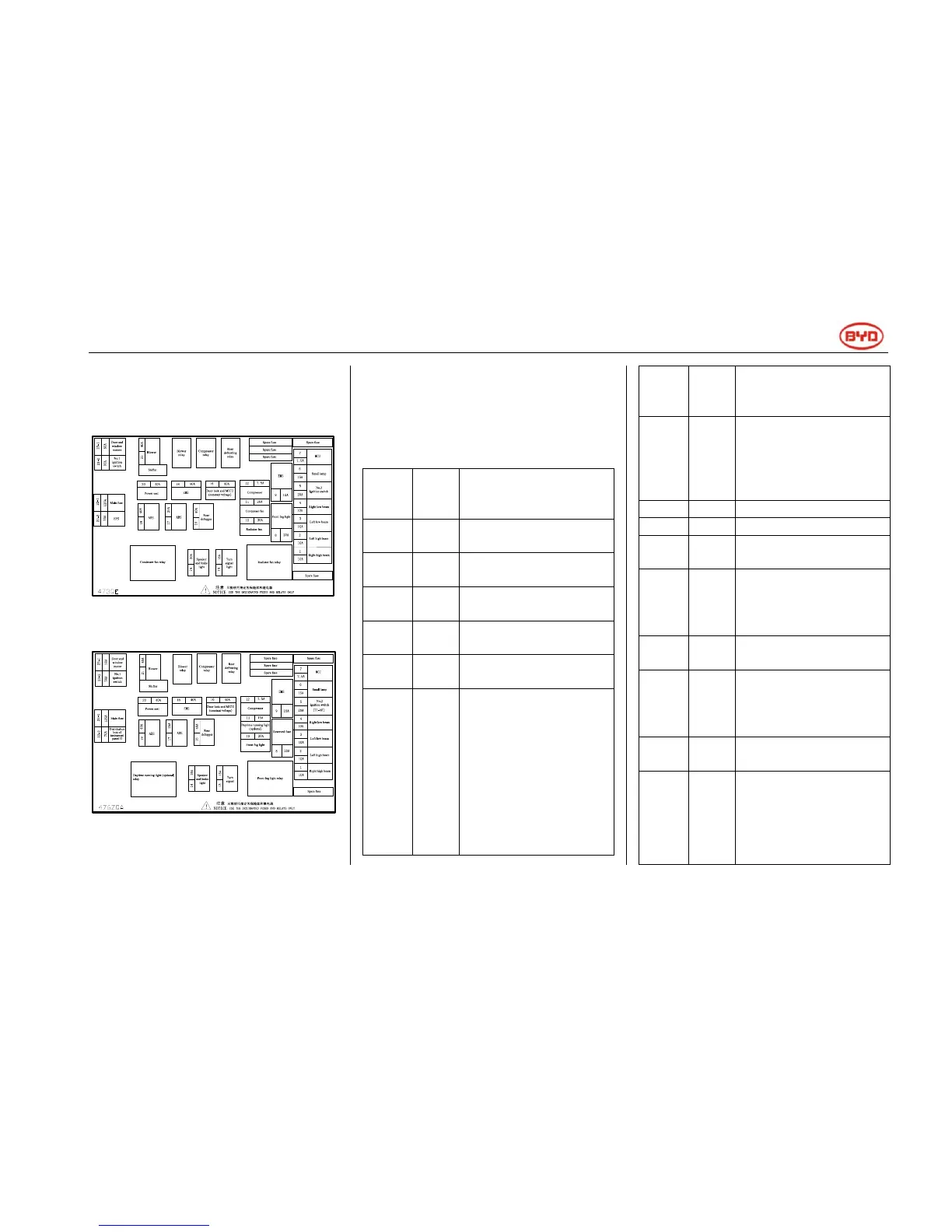

Nameplate of the fuse box under
the hood
473QE
476ZQA
The fuse position is marked with
symbol on the fuse nameplate. For
the fuse on your vehicle, please
refer to the table on this page.
473QE
No.
Amp
erage
Components or
Circuits under
Protection
1 10A
Right headlight (high
beam)
2 10A
Left headlight (high
beam)
3 10A
Right headlight (low
beam)
4 10A
Right headlight (low
beam)
5 20A
No.2 ignition switch,
wiper system
6 15A
Ashtray light,
audio-HVAC-display
module light,
automatic
transmission gear
console light, front
side marker light,
glove box light, hazard
warning switch light,
foot light, license plate
No.
Amp
erage
Components or
Circuits under
Protection
Lamp, skylight switch
light, relay control
module, seat heater
switch light and
taillight
7 7.5A Relay control module
8 20A Daytime running light
9 15A
ECM power and A/T
control relay power
10 30A
Condenser fan motor
(low speed), radiator
fan motor (low speed
and high speed)
11 20A
Condenser fan motor
(high speed)
12 7.5A
A/C compressor clutch
(relay by means of the
A/C compressor
clutch)
13 15A
Turn signal/hazard
warning relay
14 20A
Brake lights, high
brake light, ignition key
light and multiple
integrated control unit
(MICU)
