C.E.C. 530CD - Page 22

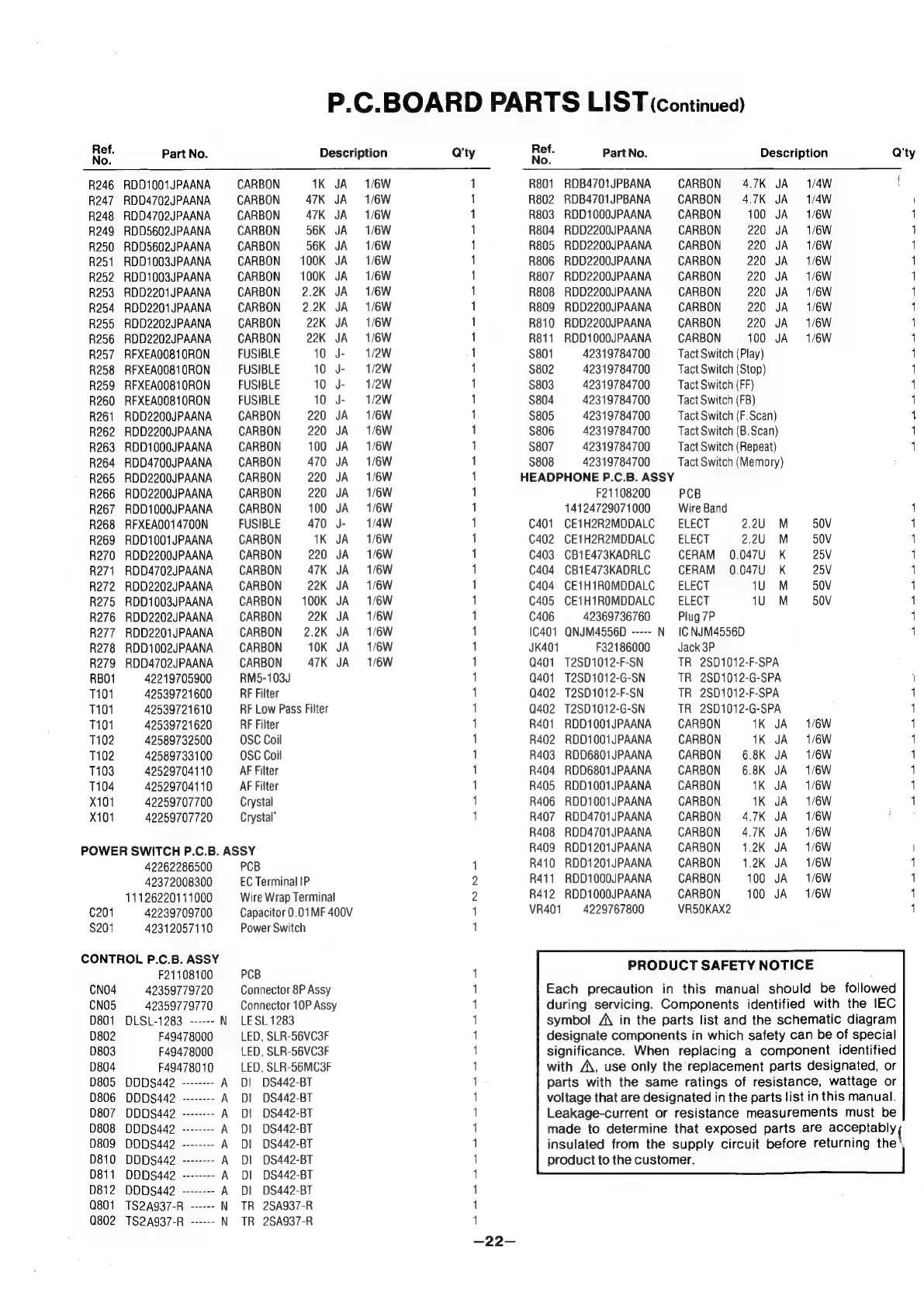

P.C.BOARD PARTS LIST (continuea)
co Part No. Description Q'ty
R246 RDD1001JPAANA CARBON 1K JA 1/6W 1
R247 RDD4702JPAANA CARBON 47K JA 1/6W 1
R248 RDD4702JPAANA CARBON 47K JA 1/6W 1
R249 RDD5602JPAANA CARBON 56K JA 1/6W 1
R250 RDD5602JPAANA CARBON 56K JA 1/6W 1
R251 RDDIO03JPAANA CARBON 100K JA 1/6W {
R252 RDD1003JPAANA CARBON 100K JA 1/6W {
R253 RDD2201JPAANA CARBON) 2.2K JA 1/6W 1
R254 RDD2201JPAANA CARBON 2.2K JA 1/6W 1
R255 RDD2202JPAANA CARBON 22K JA 1/6W 1
R256 RDD2202JPAANA CARBON 22K JA 1/6W 1
R257 RFXEAO0810RON FUSIBLE 10 J- 1/2W 1
R258 RFXEA00810RON FUSIBLE 10 J- 1/2W 1
R259 RFXEAQO810RON FUSIBLE 10 J- 1/2W |
R260 RFXEA00810RON FUSIBLE 10 J- 1/2W 1
R261 RDD2200JPAANA CARBON 220 JA 1/6W 1
R262 RDD2200JPAANA CARBON 220 JA 1/6W 1
R263 RDD1000JPAANA CARBON 100 JA 1/6W 1
R264 RDD4700JPAANA CARBON 470 JA 1/6W 1
R265 RDD2200JPAANA CARBON 220 JA 1/6W |
R266 RDD2200JPAANA CARBON 220 JA 1/6W 1
R267 RDD1000JPAANA CARBON 100 JA 1/6W 1
R268 RFXEA0014700N FUSIBLE 470 J- 1/4W 1
R269 RDD1001JPAANA CARBON 1K JA 1/6W |
R270 RDD2200JPAANA CARBON 220 JA 1/6W 1
R271 RDD4702JPAANA CARBON 47K JA 1/6W 1
R272 RDD2202JPAANA CARBON 22K JA 1/6W 1
R275 RDD1003JPAANA CARBON 100K JA 1/6W 1
R276 RDD2202JPAANA CARBON 22K JA 1/6W 1
R277 RDD2201JPAANA CARBON 2.2K JA 1/6W 1
R278 RDD1002JPAANA CARBON 10K JA 1/6W 1
R279 RDD4702JPAANA CARBON 47K JA 1/6W 1
RBO1 42219705900 RM5-103J Al
7101 42539721600 PF Filter |
7101 42539721610 RF Low Pass Filter 1
7101 42539721620 RF Filter 1
7102 42589732500 OSC Coil 1
7102 42589733100 OSC Coil 1
T103 42529704110 AF Filter 1
7104 42529704110 AF Filter 1
X101 42259707700 Crystal 1
X101 42259707720 Crystal’ 1
POWER SWITCH P.C.B. ASSY
42262286500 PCB 1
42372008300 EC Terminal IP 2
11126220111000 Wire Wrap Terminal 2
C201 42239709700 Capacitor 0.01MF 400V 1
$201 42312057110 Power Switch 1
CONTROL P.C.B. ASSY
F21108100 PCB 1
CNO4 42359779720 Connector 8P Assy 1
CNO5 42359779770 Connector 10P Assy 1
D801 DLSL-1283 ------ LESL 1283 1
D802 F49478000 LED, SLR-56VC3F 1
D803 F49478000 LED, SLR-56VC3F 1
D804 F49478010 LED, SLR-56MC3F 1
D805 DDDS442 -------- DI DS442-BT 1
D806 DDDS442 -------- DI DS442-BT 1
D807 DDDS442 -------- Di DS442-BT 1
D808 DDDS442 -------- DI DS442-BT 1
D809 DDDS442 -------- DI DS442-BT 1
D810 DDDS442 -------- DI 0S442-BT 1
D811 DDDS442 -------- DI DS442-BT 1
D812 DDDS442 -------- DI DS442-BT 1
Q801 TS2A937-R ------ TR 2SA937-R 1
Q802 1S2A937-R ------ TR 2SA937-R 1
Ref.
Q'ty
Bi Ai, Sa a aaa
No. Part No. Description
R801 RDB4701JPBANA CARBON 4.7K JA 1/4W
R802 RDB4701JPBANA CARBON 4.7K JA 1/4W
R803 RDD1000JPAANA CARBON 100 JA 1/6W
R804 RDD2200JPAANA CARBON 220 JA 1/6W
R805 RDD2200JPAANA CARBON 220 JA 1/6W
R806 RDD2200JPAANA CARBON 220 JA 1/6W
R807 RDD2200JPAANA CARBON 220 JA 1/6W
R808 RDD2200JPAANA CARBON 220 JA 1/6W
R809 RDD2200JPAANA CARBON 220 JA 1/6W
R810 RDD2200JPAANA CARBON 220 JA 1/6W
R811 RDD1000JPAANA CARBON 100 JA 1/6W
$801 42319784700 Tact Switch (Play)
$802 42319784700 Tact Switch (Stop)
$803 42319784700 Tact Switch (FF)
$804 42319784700 Tact Switch (FB)
$805 42319784700 Tact Switch (F.Scan)
$806 42319784700 Tact Switch (B.Scan)
$807 42319784700 Tact Switch (Repeat)
$808 42319784700 Tact Switch (Memory)
HEADPHONE P.C.B. ASSY
F21108200 PCB
14124729071000 Wire Band
C401 CE1H2R2MDDALC ELECT 2.2U M 50V
C402 CE1H2R2MDDALC ELECT 2.2U M 50V
C403 CB1E473KADRLC CERAM 0.047U K 25V
C404 CB1E473KADRLC CERAM 0.047U K 25V
C404 CE1HIROMDDALC ~— ELECT 1U°M 50V
C405 CE1H1ROMDDALC ELECT 1U.M 50V
C406 42369736760 Plug 7P
1C401 QNJM4556D ----- N IC NJM4556D
JK401 F32186000 Jack 3P
Q401 12SD1012-F-SN TR 2SD1012-F-SPA
Q401 1T2SD1012-G-SN TR 2SD1012-G-SPA
Q402 1T2SD1012-F-SN TR 2SD1012-F-SPA
Q402 T2SD1012-G-SN TR 2SD1012-G-SPA
R401 RDD1001JPAANA CARBON 1K JA 1/6W
R402 RDD1001JPAANA CARBON 1K JA 1/6W
R403 RDD6801JPAANA CARBON 6.8K JA 1/6W
R404 RDD6801JPAANA CARBON 6.8K JA 1/6W
R405 RDD1001JPAANA CARBON 1K JA 1/6W
R406 RDO1001JPAANA CARBON 1K JA 1/6W
R407 RDD4701JPAANA CARBON 4.7K JA 1/6W
R408 RDD4701JPAANA CARBON 4.7K JA 1/6W
R409 RDD1201JPAANA CARBON 1.2K JA 1/6W
R410 RDD1201JPAANA CARBON 1.2K JA 1/6W
R411 RDD1000JPAANA CARBON 100 JA 1/6W
R412 RDD1000JPAANA CARBON 100 JA 1/6W
VR401 4229767800 VR50KAX2
PRODUCT SAFETY NOTICE
Each precaution in this manual should be followed
during servicing. Components identified with the IEC
symbol /\ in the parts list and the schematic diagram
designate components in which safety can be of special
significance. When replacing a component identified
with A\, use only the replacement parts designated, or
parts with the same ratings of resistance, wattage or
voltage that are designated in the parts list in this manual.
Leakage-current or resistance measurements must be
made to determine that exposed parts are acceptably;
insulated from the supply circuit before returning the’
product to the customer.
