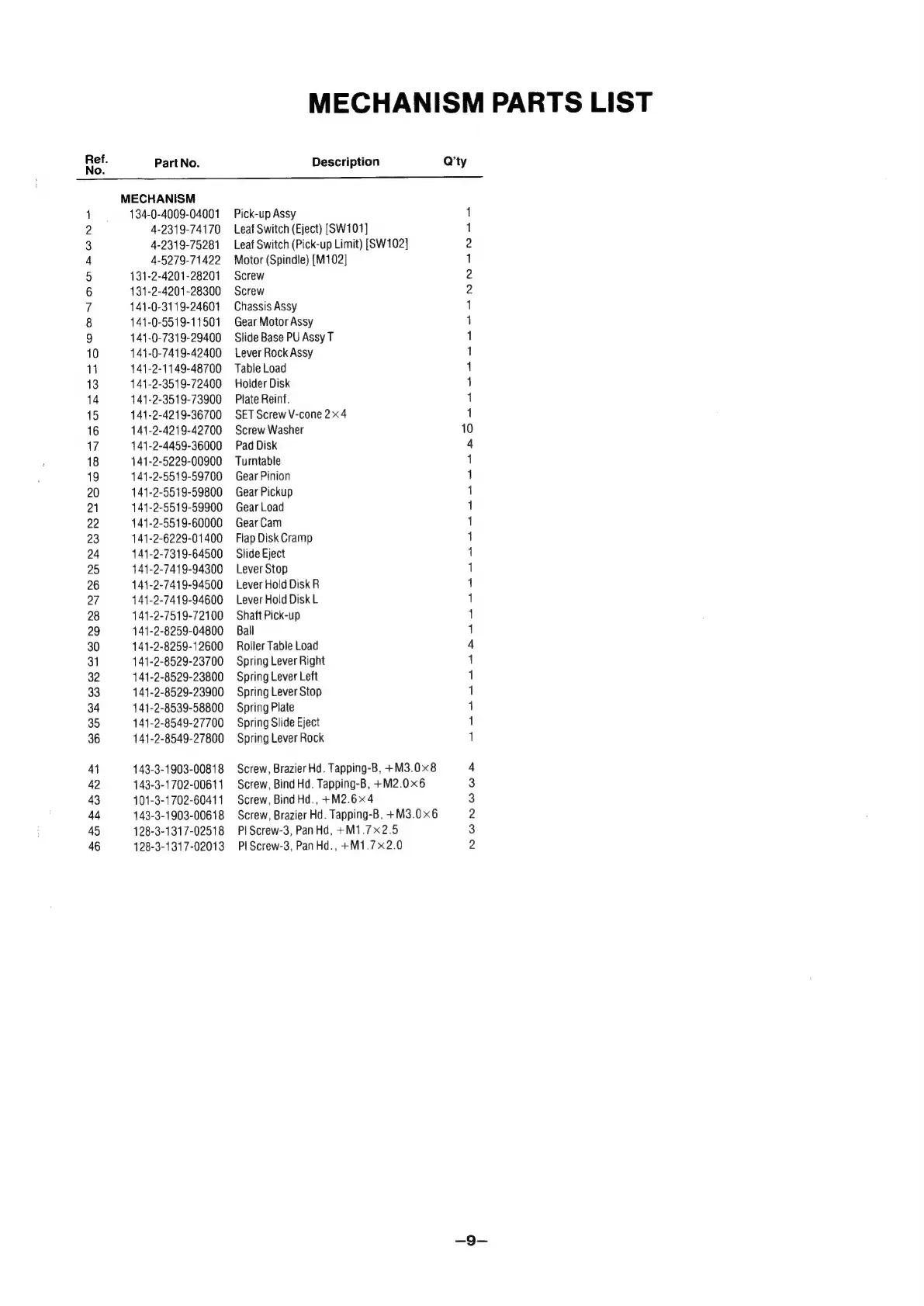

MECHANISM PARTS LIST
Rel Part No. Description Q'ty
oO.
MECHANISM
1 134-0-4009-04001 Pick-up Assy 1
2 4-2319-74170 Leaf Switch (Eject) [SW101] 1
3 4-2319-75281 Leaf Switch (Pick-up Limit) [SW102] 2
4 4-5279-71422 Motor (Spindle) {M102] 1
5 131-2-4201-28201 Screw 2
6 131-2-4201-28300 Screw 2
7 141-0-3119-24601 Chassis Assy 1
8 141-0-5519-11501 Gear Motor Assy 1
9 141-0-7319-29400 Slide Base PU Assy T 1
10 141-0-7419-42400 Lever Rock Assy 1
11 141-2-1149-48700 Table Load 1
13 141-2-3519-72400 Holder Disk 1
14 141-2-3519-73900 Plate Reinf. 1
15 141-2-4219-36700 SET Screw V-cone 2x4 1
16 141-2-4219-42700 Screw Washer 10
17 141-2-4459-36000 Pad Disk 4
18 141-2-5229-00900 Turntable 1
19 141-2-5519-59700 Gear Pinion 1
20 141-2-5519-59800 Gear Pickup 1
21 141-2-5519-59900 Gear Load 1
22 141-2-5519-60000 GearCam 1
23 141-2-6229-01400 Flap Disk Cramp 1
24 141-2-7319-64500 Slide Eject 1
25 141-2-7419-94300 Lever Stop 1
26 141-2-7419-94500 Lever Hold Disk R 1
27 141-2-7419-94600 Lever Hold Disk L 1
28 141-2-7519-72100 Shaft Pick-up 1
29 141-2-8259-04800 Ball 1
30 141-2-8259-12600 Roller Table Load 4
31 141-2-8529-23700 Spring Lever Right 1
32 141-2-8529-23800 Spring Lever Left 1
33 141-2-8529-23900 Spring Lever Stop 1
34 141-2-8539-58800 Spring Plate 1
35 141-2-8549-27700 Spring Slide Eject 1
36 141-2-8549-27800 Spring Lever Rock 1
44 143-3-1903-00818 Screw, Brazier Hd. Tapping-B, +M3.0x8 4
42 143-3-1702-00611 Screw, Bind Hd. Tapping-B, +M2.0x6 3
43 101-3-1702-60411 Screw, Bind Hd., +M2.6x4 3
44 143-3-1903-00618 Screw, Brazier Hd. Tapping-B, +M3.0x6 2
45 128-3-1317-02518 PlScrew-3, PanHd, +M1.7x2.5 3
46 428-3-1317-02013 PlScrew-3, PanHd., +M1.7x2.0 2
