7
❶
Optical Laser Pickup Lens
The optical laser pickup reads music signals from
a compact disc. To keep it clean never touch the lens
with your fi ngers, etc., and always close the CD door.
❷
CD Stabilizer
The CD Stabilizer for TL5 is heavy with a diameter
of 7cm and weighing 330g.
Handle with care. Hold the edge stead-
ily when placing on or removing it from the
CD-Turntable in the CD tray. Dropping the
CD Stabilizer may damage it and decrease
playback accuracy.
❸
CD-Turntable
Place a compact disc on the CD-Turntable, and
place the CD Stabilizer on top of the disc. The CD
Stabilizer can be placed on the CD-Turntable when not
in use, even when no disc is in place.
❹
Rubber Belt
Square rubber belt to drive a disc on the CD-
Turntable. Periodic maintenance is not required. The
tension of the belt may be lowered by using for years
which may affect the disc rotation accuracy. Refer to
page 14 to replace the belt.
Make a connection before power on to avoid mal-
fuctions.
DIGITAL OUTPUT
to connect with a digital audio
device like D/A converter
❶
AES/EBU(Balanced)
Balanced digital output with a XLR type connector
(1=GND, 2=Hot, 3=Cold). Connect with a digital audio
device using a XLR (110Ω) cable.
❷
COAXIAL
Standard (SPDIF) digital signal output jack with
a RCA type connector. Connect with a digital audio
device using a RCA (75Ω) cable.
❸
TOS LINK (Optical)
Optical (SPDIF) digital signal output jack with a
square TOS LINK connector. Connect with a digital
audio player using an optical cable with a square TOS
LINK plug.
AC POWER
❹
AC LINE
Connect the supplied 3-pin AC power cord to the AC
LINE inlet and the wall outlet.
DIGITAL OUTPUT
COAX TOSLINKAES/EBU
TL5
CEC
CEC Holdings Co., Ltd.
CD Transport
ݎ ݏݑݐ
ݐݎ ݏ
ݑ
3-pin AC power cord
to a wall outlet
to a D/A converter

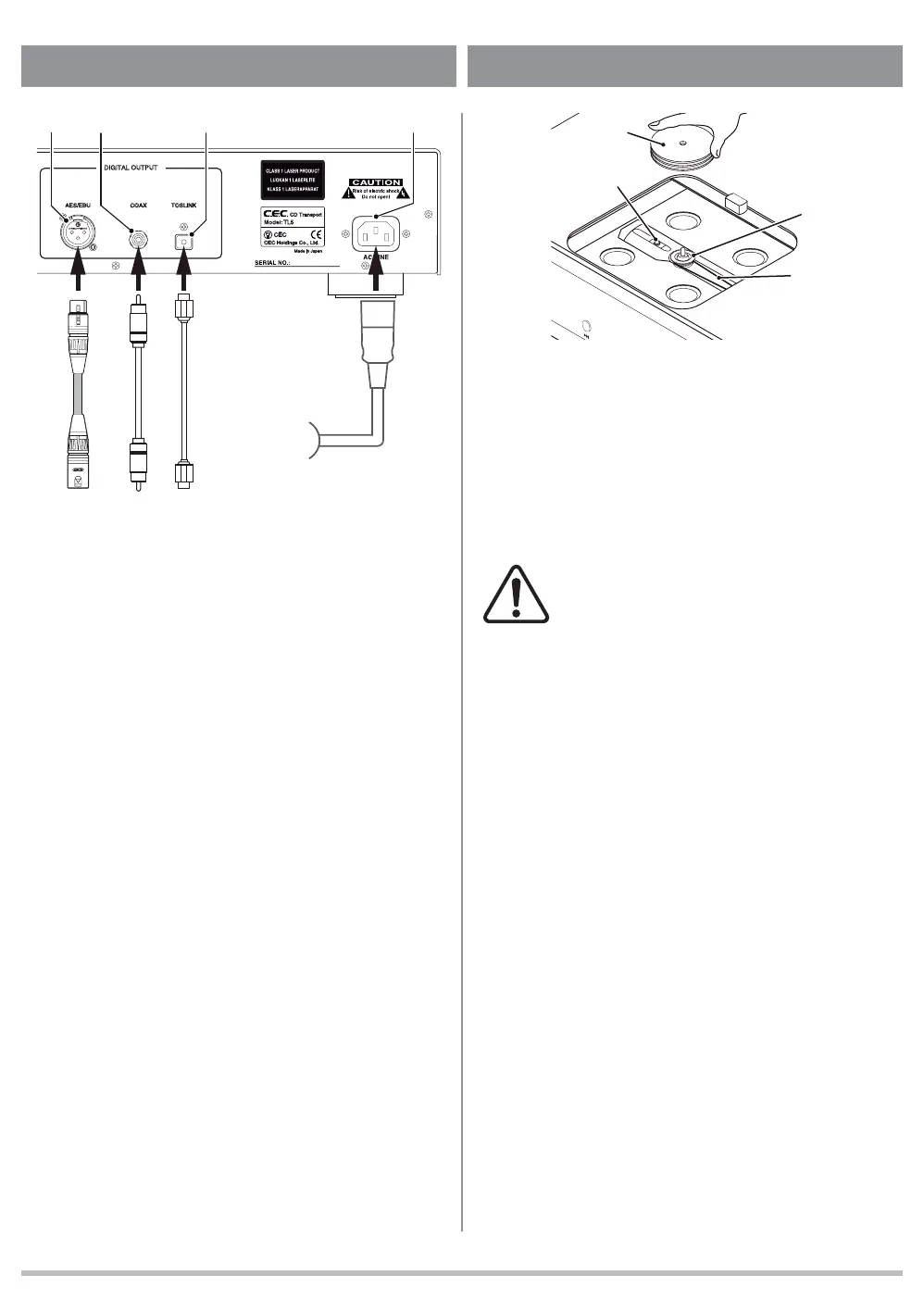

Rear Panel Functions and Connections
ݐ
ݎ
ݏ
ݑ
AX T
OS PCM
LSE
DSD
Inside the CD Door
