C-LOGIC 8500 Instruction Manual

Alternating current or voltage, direct voltage
3. Specifications
Automatic measuring range and manual measuring
range.
Full measuring range overload protection.
The maximum allowable voltage between
measurement end and ground: 600V DC or AC(RMS)
Operational height: maximum 2000m
Display: LCD
Displayed maximum value: 4000 counts.
Polarity indication: automatical indication, “ ” means -
negative polarity.
Exceeding measuring range display: “ O ”.L
Sampling rate: about 3 times/sec.
Unit display: has function and power unit display.
Auto off time: 30 min
Power supply: 2x
1.5V AAA Batteries
Battery undervoltage indication: LCD displays
symbol.
Temperature coefficient: less than 0.1×accuracy/°C
Operational temperature: 18°C~28°C
Storage temperature: -10°C~50°C
Dimension: 213×62×38mm (8.4x2.44x1.5in)
Weight: about 238g(8.4oz)-include battery
The meter should be recalibrated under the condition
of 18°C~28°C, relative humidity less than 75% with
the period of one year.
3.1 General
“ ”

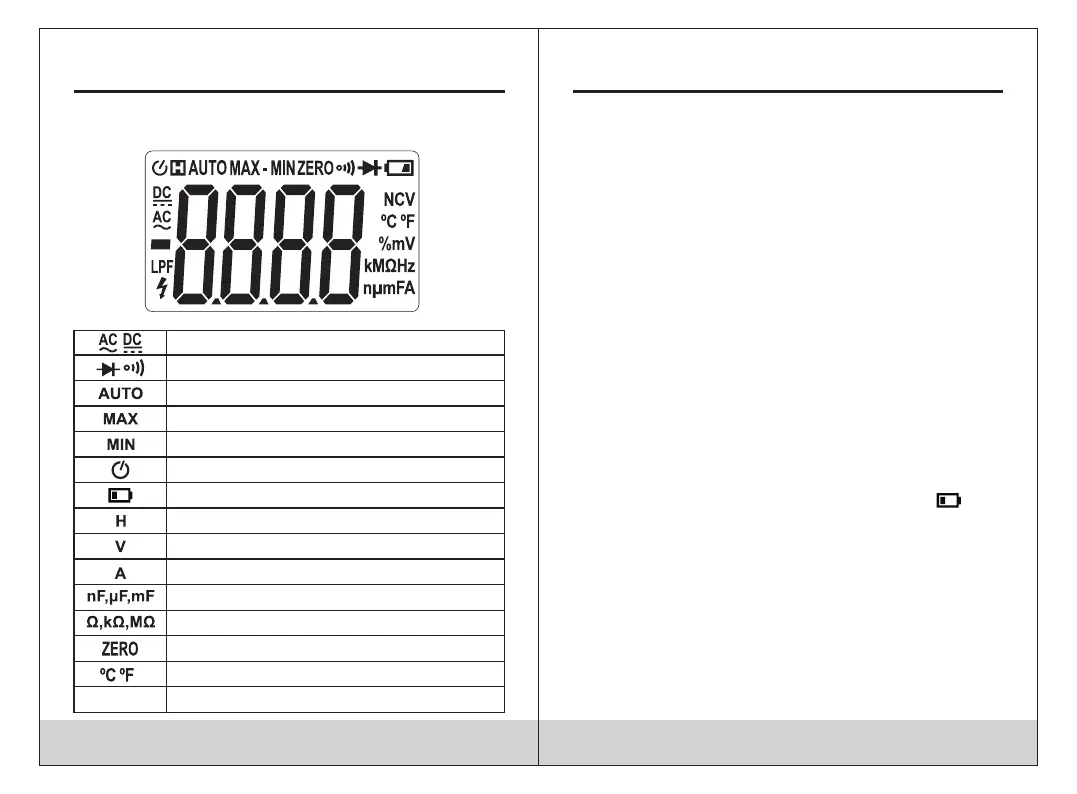

2.3 LCD Display
Diode, continuity
Automatic measuring range mode
Maximum measuring state
Minimum measuring state
Automatic power-off state
Low battery
Reading hold state
Volt(voltage)
Amperes(Current)
Ohm, Kilohm, Megohm(resistance)
Nano, farad, Microfarad, Millifarad
Temperate measuring state
Current clearing state
Low pass filter (50Hz/60Hz) function state
LPF
