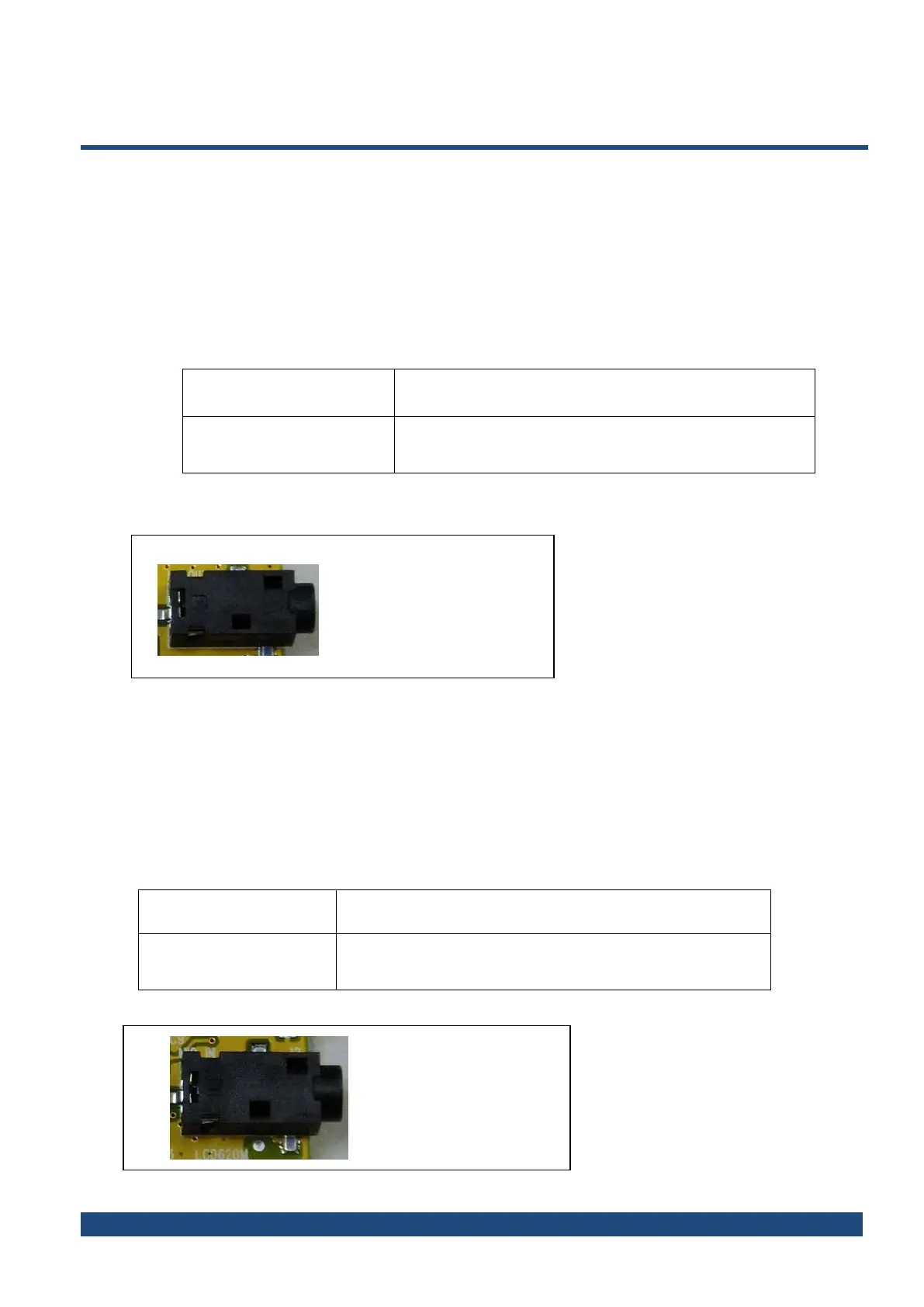

2.2 Playback / Recording Functions
2.2.1 Playback Functions
HS-100B’s playback function includes dual DAC and an earphone driver. The capabilities of
playback are listed below.
Device Audio Out Capability
HS-100B Analog Output
Stereo (2 channel) 48KHz/44.1KHz
sampling rates with 16bit Resolution
Headphone Output
Figure 4 Headphone out jack
2.2.2 Recording Functions
HS-100B’s recording function supports single channel multiple sampling rates with 16-bit
resolution. The capabilities of recording are listed below.
Audio In Capability
HS-100B Analog Input
Mono 48KHz /44.1KHz sampling rates
with 16bit resolution
Microphone Input
Figure 9 Microphone input jack
Headphone out
