Re-assembling your scooter by vise versa above disassembling procedures.
Replace with same power fuse is required.
After replacement, vise versa assembling procedure to original condition.
11

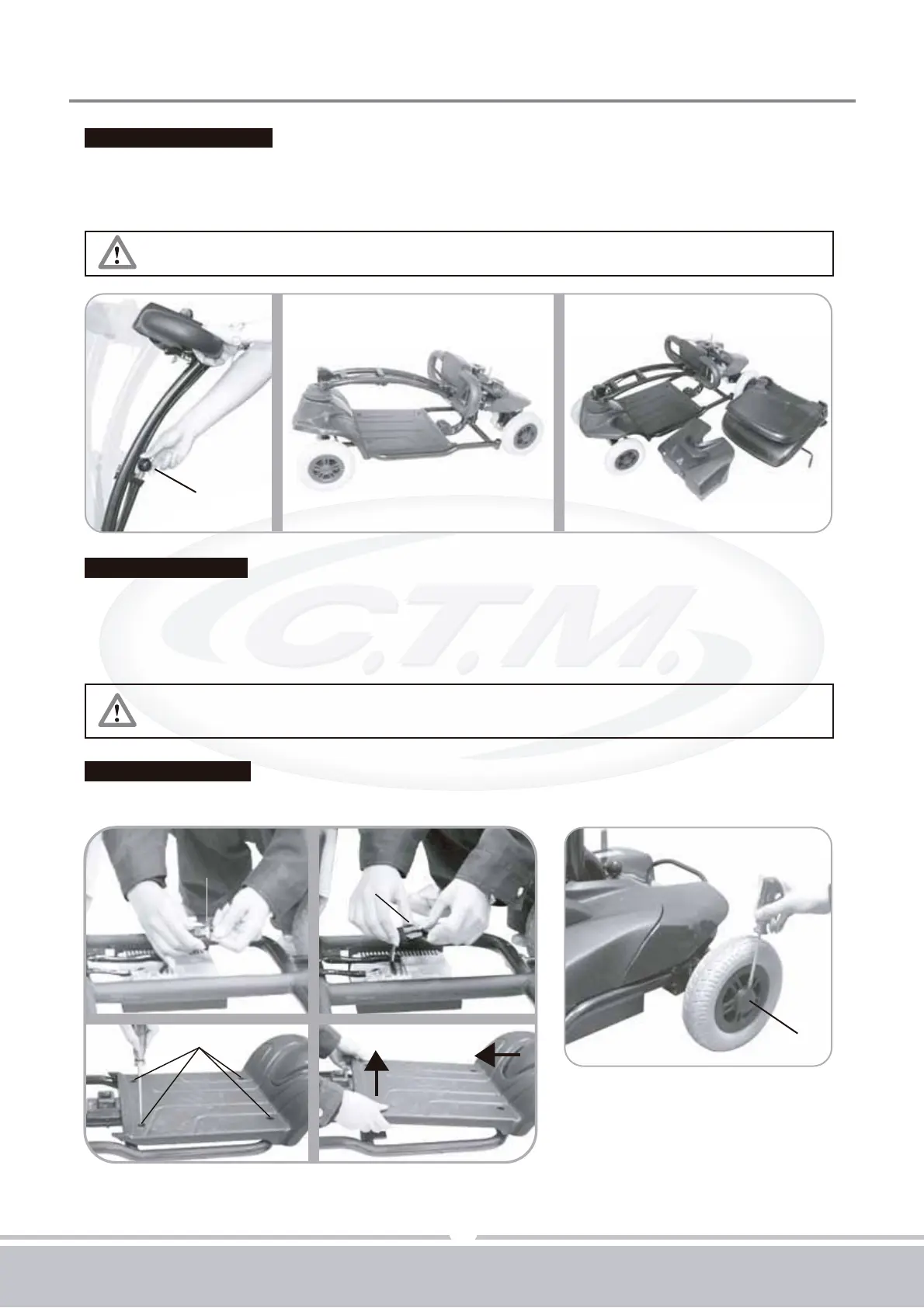

Steering Fold Method :
Lift up the lever (G) to bend down the steering to the lowest hole position and fold down the
steering column as shown in Figure 15.
Fuse Replacement :
1.Remove front shroud's (P) 5 screws (be careful screws' size are different); lift up front
shroud (P) as arrow indicates direction.
2.Open fuse box (P1) and replace with backup fuse (P2).
Rim Disassembling :
1.By using a screw driver, to lift up rim (Q).
Figure 18
Figure 18
(Q)
Figure 17
Figure 17
(P1)
(P) (P)
(P2)
Figure 16
Figure 16
(G)
1
2
