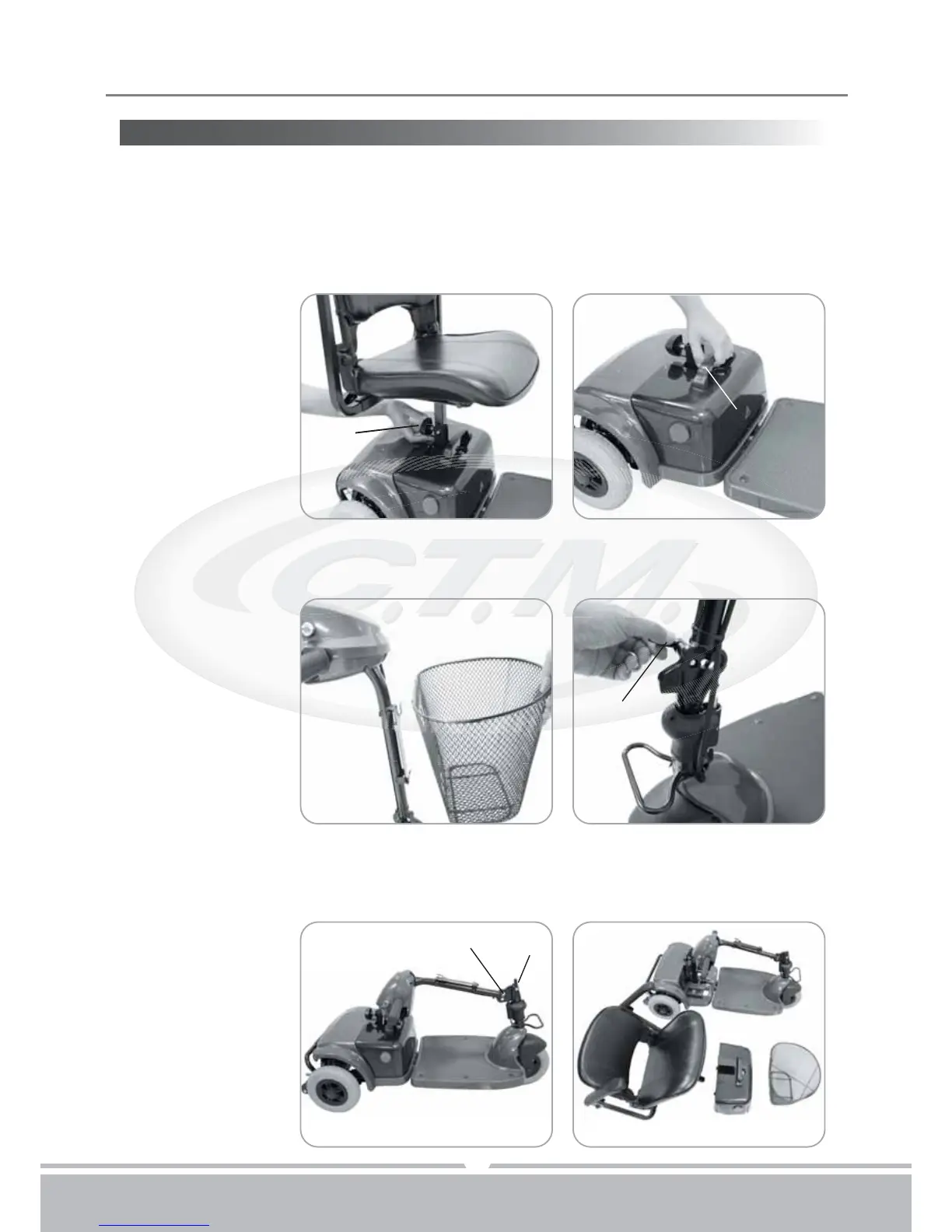

DISASSEMBLING YOUR SCOOTER
C.T.M. HS-125's compact design and light weight style fits easily into the trunk or back
seat of most cars for transportation. No tools are necessary to disassemble scooter.
Remove the seat by loosening the seat Locker Knob (A) and then lift. away. (See Fig. 4)
Use the Battery Pack Handle (B) to pull the battery pack up and off from the scooter
.
(See Fig. 5)
Remove the Front Basket (C) and place it off to the side. (See Fig. 6)
Adjust the Tiller Angle Adjustment (D) to the lower point. (See Fig. 7)
Figure 4
Figure 4
Figure 5
Figure 5
(A)
(B)
Figure 6
Figure 6
Figure 7
Figure 7
(C)
(D)
Pull out the Metal Locking Lever (E)and place it into the groove (F) located on the end
of the legroom. (See Fig. 8)
There are 4 main parts after disassembling the scooter. (See Fig. 9)
