DISASSEMBLING YOUR SCOOTER
The HS-890's compact design and light weight style make it fit easily into trunk or back
s
eat of most vehicle. No tools are necessary to disassemble scooter.

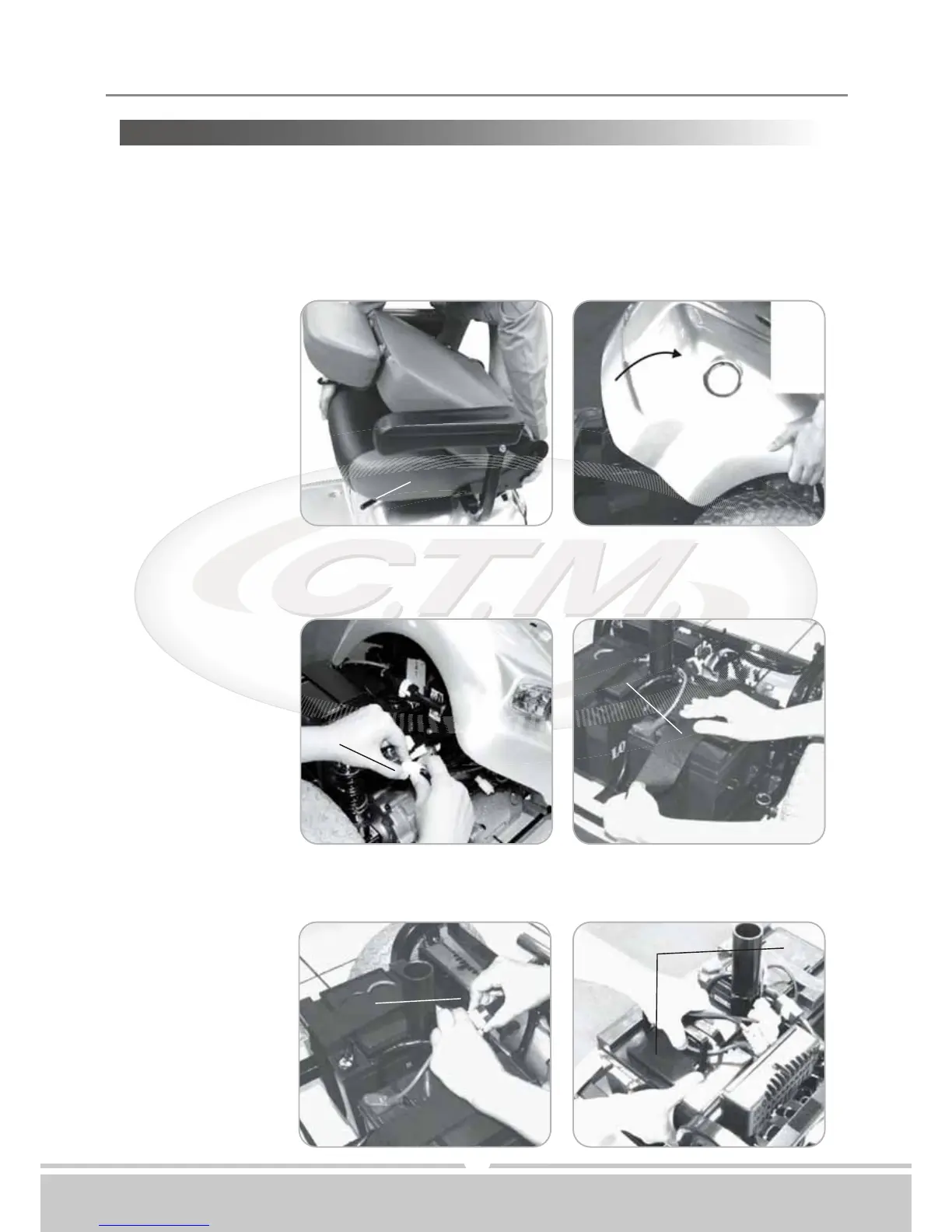

Remove seat by releasing Seat Rotation Lever (A) and then lift seat off. (See Fig. 4)
R
emove rear shroud (B) off scooter. (See Fig. 5)
Unscrew two wire connectors (C) between front and rear units. (See Fig. 6)
Remove battery fixing Velcro (D). (See Fig. 7)
Detach battery power plugs (E). (See Fig. 8)
Remove batteries (F). (See Fig. 9)
