C.T.M. HS-890 - Identification of Parts

Instruction Booklet8-Series
Battery Gauge
Hi/Lo Speed Switch
Left Turn Signal
Headlight
Horn
Right Turn
Signal
Speed Dial
Knob
Warning
Light
Power/Self-Diagnostic
Warning Light
Thumb Lever
Tiller Angle
Adjustment
Seat Sliding
Slide Lever
Swivel Seat
With Head Rest
Storage Area
Seat Rotation
Lever
Reflectors
12" Front and Rear Wheels
Basket
Head light
Turn Signals
Front Bumper
Tiller Angle
Adjustment

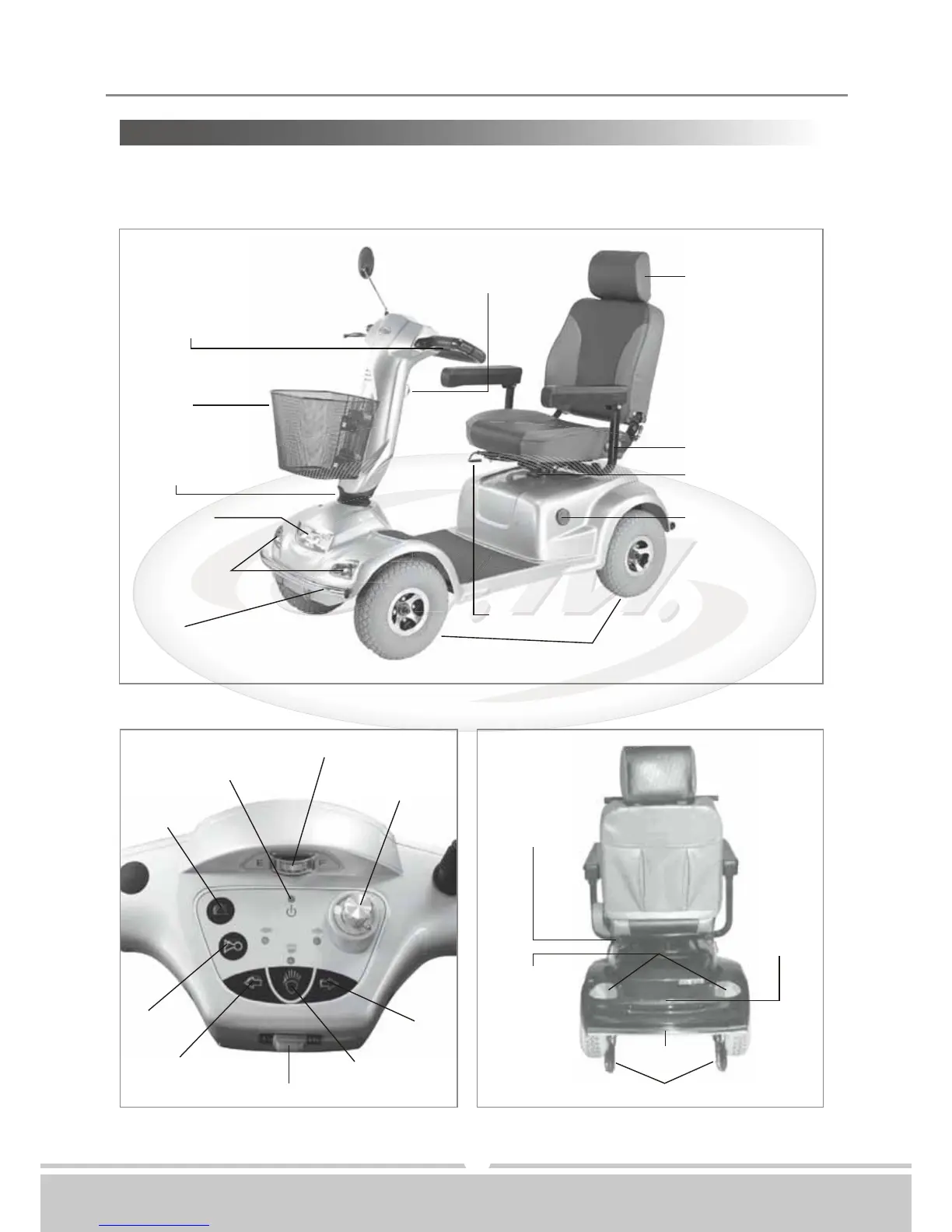

Figure 1 - HS-890 Front View
Figure 2 - HS-890 Control Panel
Figure 3 - HS-890 Rear View
IDENTIFICATION OF PARTS
5
Before attempting to drive this scooter on your own, it is important that you familiarize
yourself with the controls, and how to operate
Armrest
Width
Adjustment
Thumbscrews
Rear
Turn Signals
Anti-tip Wheels
Rear Bumper
Storage
Area
