Serviceanleitung / Service Manual / / /

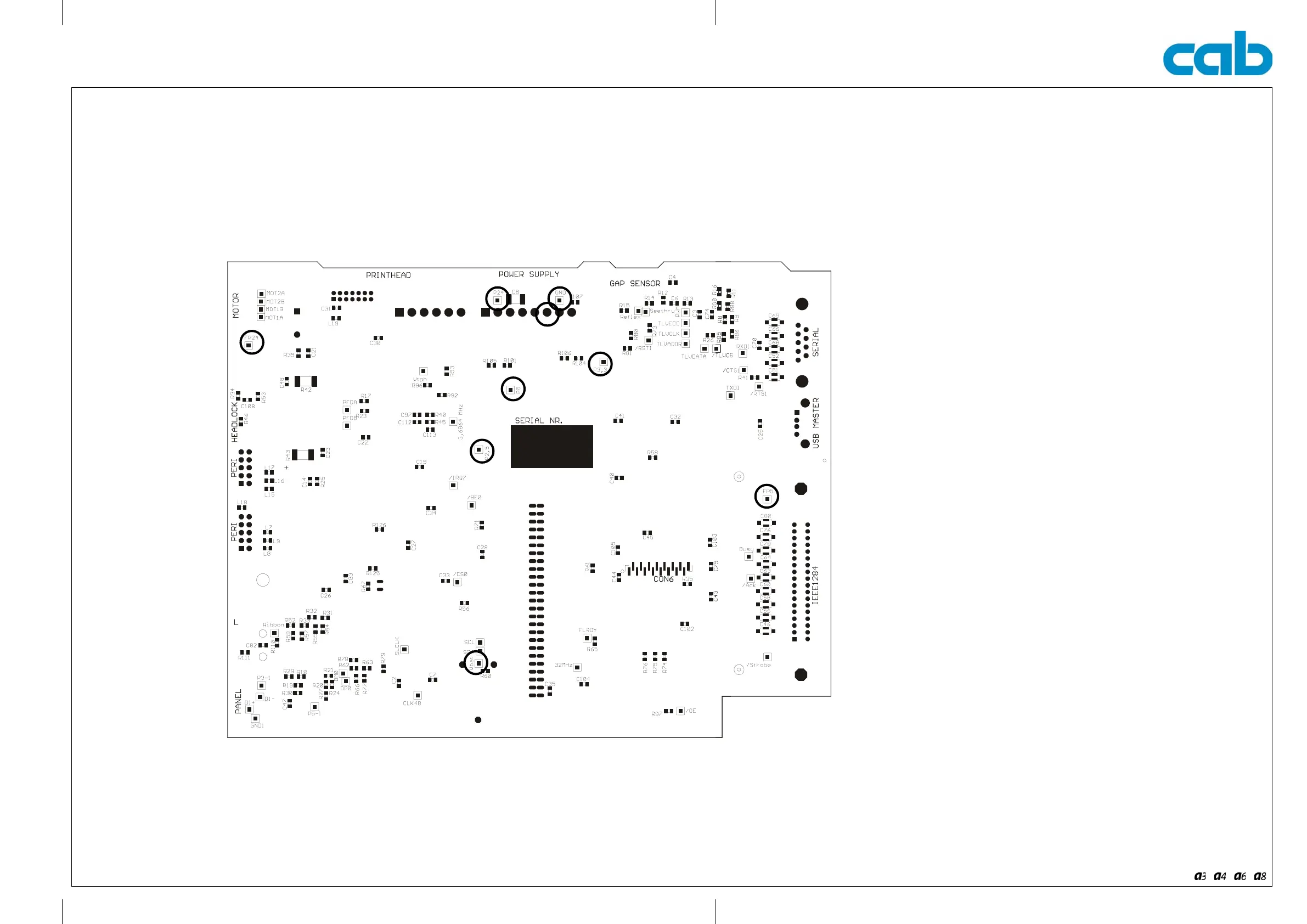

Anlage D: Belegungsplan Leiterplatte CPU A3 : Lötseite

Appendix D: Layout Diagram Mainboard A3 (PCB CPU) : Soldering side

Wichtige Messpunkte

Important Measuring Points

1 - 24 V

2 - GND

3- V

MOT

4 - 24 V ext. (Peripherals)

5 - 3,3 V

6- 5 V

7 - 2,5 V

8 - 5 V ext. (Centronics)

9- V

BAT
