D-4

Serviceanleitung / Service Manual / / /

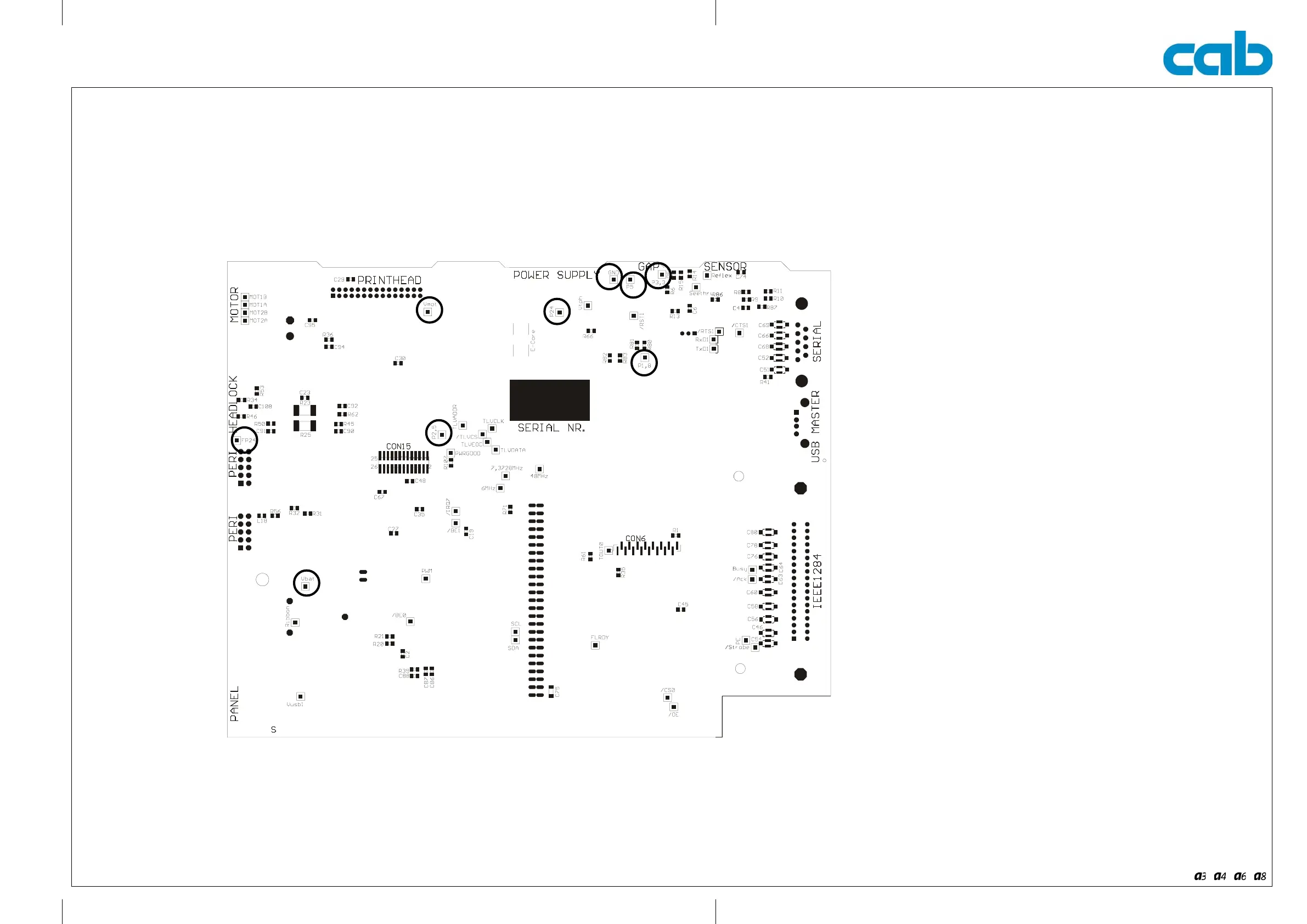

Anlage D: Belegungsplan Leiterplatte CPU A4, A6, A8 : Lötseite

Appendix D: Layout Diagram Mainboard A4, A6, A8 (PCB CPU) : Soldering side

Wichtige Messpunkte

Important Measuring Points

1 - GND

2 - 3,3 V

3- 5 V

4- V

MOT

5 - 24 V

6 - 1,8 V

7 - 2,5 V

8 - 24 V ext. (Peripherals)

9- V

BAT
