Index 1 04-09-04
C-11
Serviceanleitung / Service Manual / / /

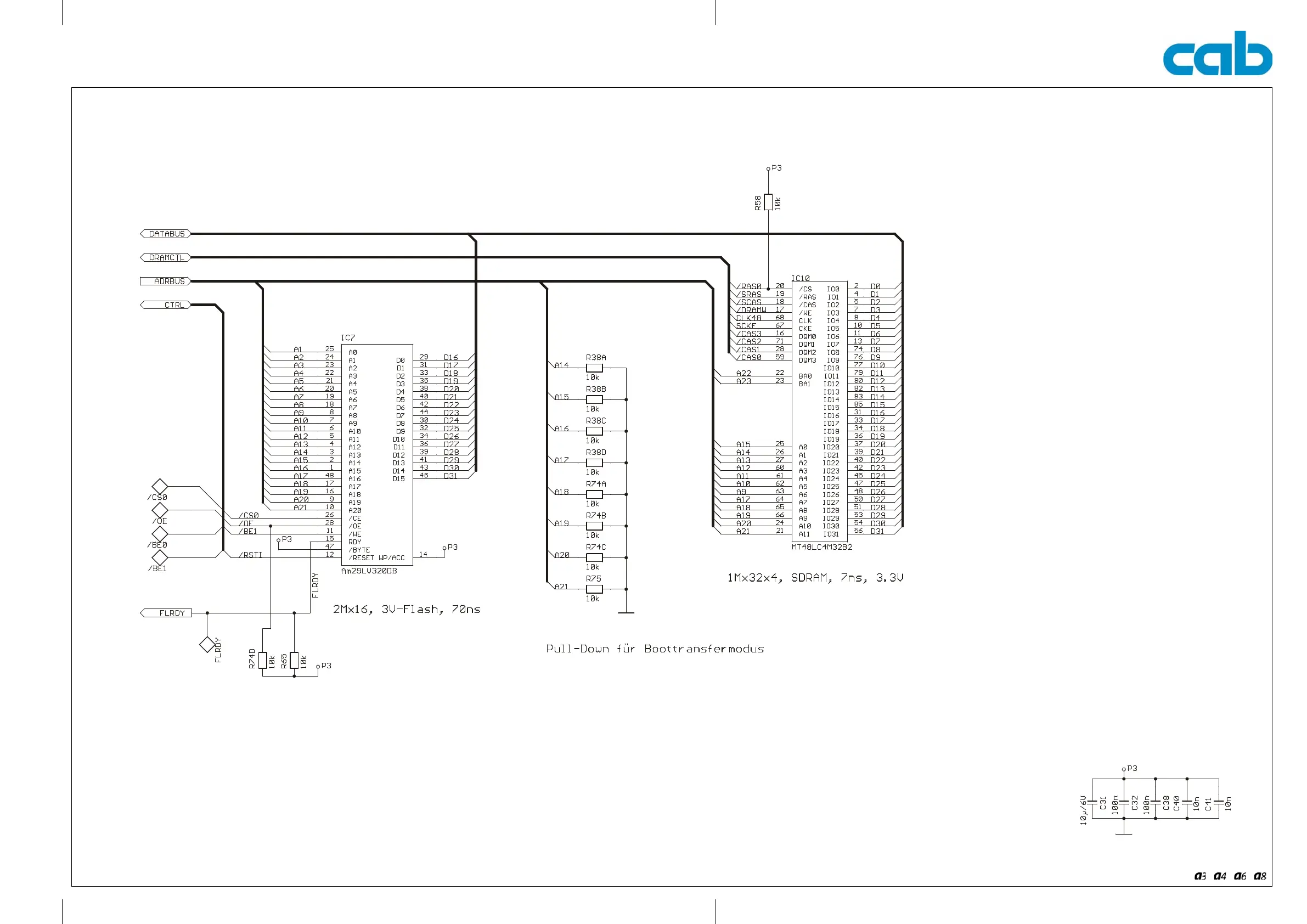

Anlage C: Stromlaufplan Leiterplatte CPU A4, A6, A8 : dRAM, Flash
Appendix C: Circuit Diagram Mainboard A4, A6, A8 (PCB CPU) : dRAM, Flash
