english
and black or minus to black or minus. Connections should
be identical for both channels. To check that the speakers are
in correct phase, switch the system to mono while music is
being played. if the amplifier does not have a phase inversion
switch, it will be necessary to change over the connections on
one only of the loudspeakers. If in correct phase, the image
should be distinctly located between the loudspeakers with a
slight loss of bass and low midrange level. If the image is confu-
sed and not centrally located and there is a drastic loss of bass
and low midrange level, recheck your connections.
HOME THEATER CONNECTIONS
WITH AN ACTIVE SUBWOOFER
Subwoofer positioning
With a crossover point below or around 150 Hz, the installa-
tion position of subwoofers is not limited as human ears and
brains are not able to identify the emitting point of such low
frequencies. To get the best result, it is recommended to try dif-
ferent positions and choose the one giving the best response
in the low frequencies, taking into account the room acoustics.
Hooking up the subwoofer
2 possibilities are offered to connect the subwoofer with your
system:
■ the low level one requiring the use of the
Cinch RCA LINE IN
7
and
LINE OUT
8
terminals and shielded coaxial connectors,
■ the high level one requiring the use of the
HIGH LEVEL
INPUT
9
and
HIGH LEVEL OUTPUT
0
terminals and standard
loudspeaker cables.
The inputs are stereo ones, the mix of the
L (left)
and
R (right)
low frequencies being done by the amplifier of the subwoofer.
If the input signal is already mono, only one input
L (left)
or
R
(right)
should be used.
Interconnections with the Cinch RCA LINE IN
7
and LINE OUT
8
connectors
■ Connections to the LINE IN
7
If your preamplifier or your integrated amplifier is fitted with
a stereo low-level output, then connect its
L (left)
and
R (right)
outputs to the
L (left)
and
R (right) LINE IN
9
inputs of the sub-
woofer. If your amplifier offers a one mono output, connect it
to either the
L (left)
or the
R (right)
subwoofer
LINE IN
9
inputs.
■ Connections from the LINE OUT
8
The signal from the
L (left)
and
R (right) LINE OUT
8
connec-
tors is the one being brought in by the
L (left)
and
R (right) LINE
IN
7
connectors filtered at 40 Hz. These outputs can thus
be used to bring the signal to the amplifier powering the main
loudspeaker.
Interconnections with the speaker terminals
■ Connections to HIGH LEVEL INPUT
9
plugs
If the preamp section of your Hi Fi or audio-video system is not
fitted with a low level output, you should then connect the
subwoofer by using its loudspeaker terminals. When connec-
ting the
L (left)
and
R (right)
speaker outputs of your amplifier
to the
HIGH LEVEL INPUT
9
plugs of the subwoofer, be care-
ful not to cross (-) and (+) cord of either
L (left)
or
R (right)
channel. Such a phase inversion might damage your main
amplifier.
■ Connections HIGH LEVEL OUTPUT
0
plugs
These outputs can be used to bring the signal to the main
loudspeaker systems.
The signal from the
L (left)
and
R (right) HIGH LEVEL OUT-
PUT
0
plugs is the one being brought in by the
HIGH LEVEL
INPUT
9
connectors. These outputs can thus be used to bring
the signal to the main loudspeaker systems.

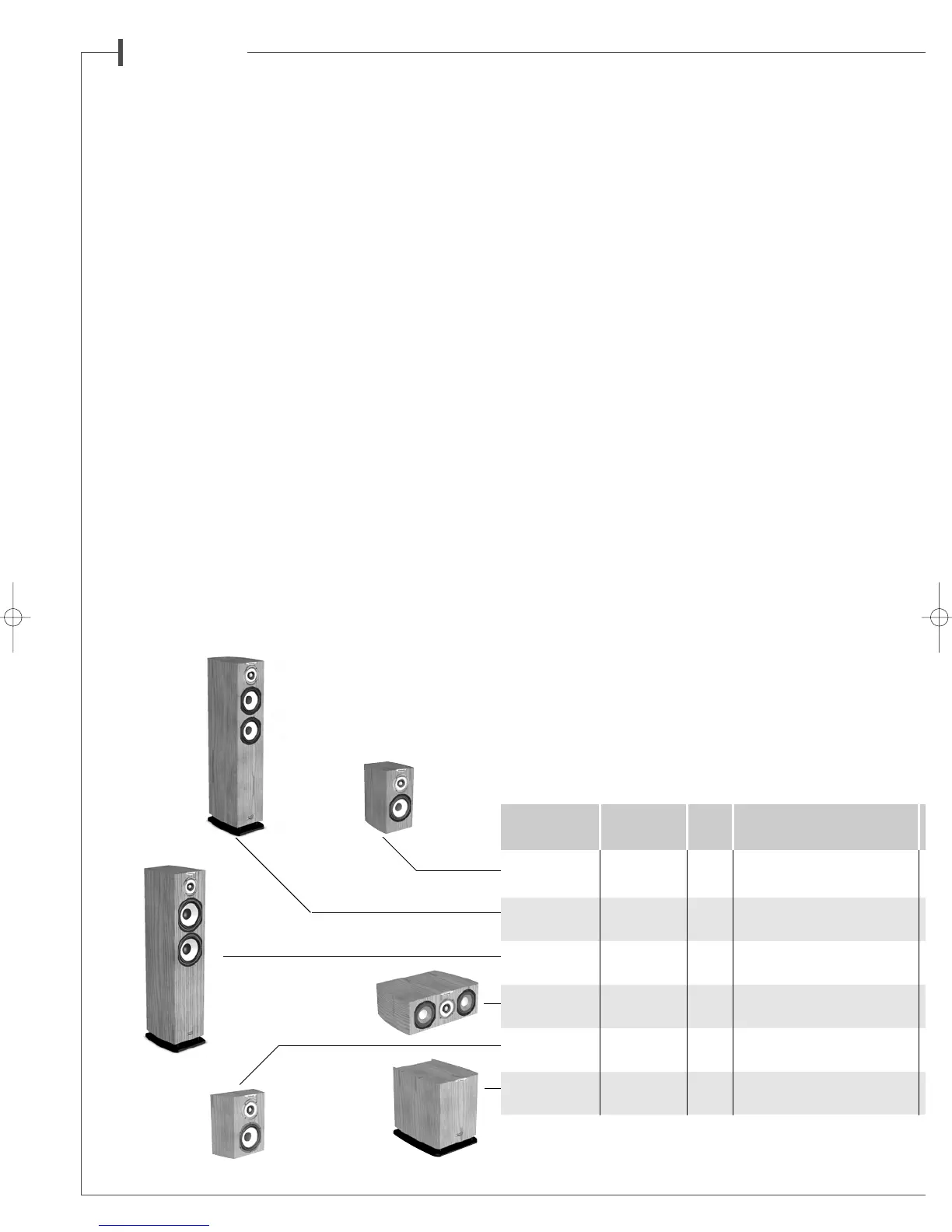

MC40 Position Ways Drivers complement S
MINORCA
booksheft/ 31 coaxial midrange-tweeter BC10
main speaker stand 1 x 17 cm (7”) 17MD18LB1
JAVA floorstanding 3 1 coaxial midrange-tweeter BC10
main speaker 2 x 17 cm (7”) 17MD18LB1
MAJORCA floorstanding 3 1 coaxial midrange-tweeter BC10
main speaker 2 x 21 cm (8”) 21MD18LB1
CABRERA on/under 31 coaxial midrange-tweeter BC10
center* screen 2 x 17 cm (7”) 17MD18LB1TV
FORMENTERA on wall/ 31 coaxial midrange-tweeter BC10
surround booksheft1 x 17 cm (7”) 17MD18LB1
MERCURE floorstanding 1 1 x 21 cm (8”) 21MT4
active subwoofer
SPECIFICATIONS & TECHNICAL DATA
* Magnetic shielding
