Caddytek Explorer V2 - Package Contents and Part Identification; Package Contents; Part Identification

Package contents:
1. The main frame with two front wheels (9.5 ‘’)
2. Two rear wheels (10.5 ‘’)
3. Umbrella holder
4. Drink holder
5. This user’s manual
6. Tools for adjustment
In case any of the above items are missing or damaged, please call 800-906-6918 or email
service caddytek@gmail.com to report.

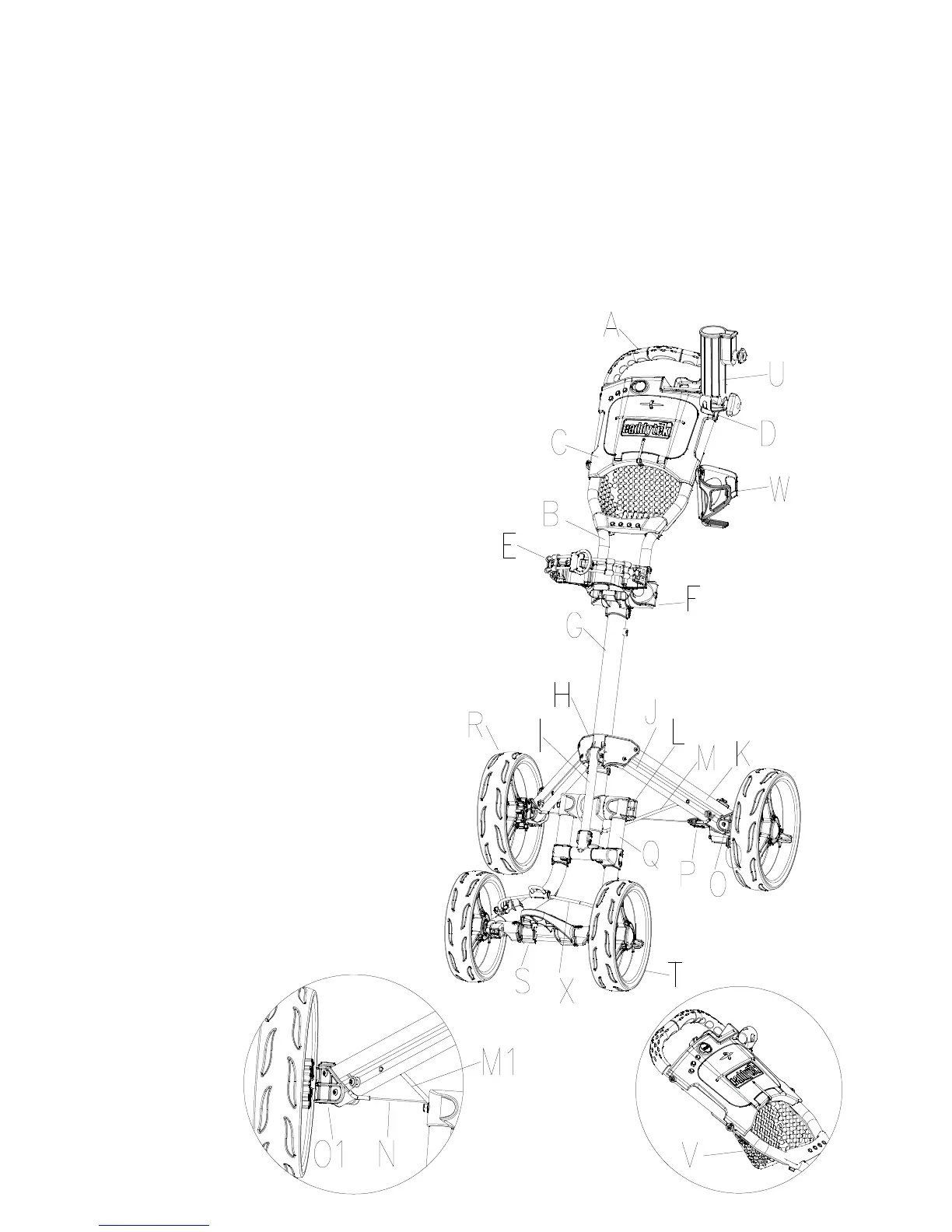

Part Identification:
A: TPE handle
B: Handle frame
C. Scorecard holder assembly
D: Umbrella holder base
E: Upper bag holder bracket assembly
F: Handle frame locking assembly
G: Main frame
H: Leg frame bracket
I: Sub-connecting rods
J: 4 holes leg frame
K: 2 holes leg frame
L: Front wheel frame locking assembly
M: Right stabilization bar
M1: Left stabilization bar
N: Supporting cable
O: Right rear wheel axel holder
O1: Left rear wheel axel holder
P: Foot brake assembly
Q: Front wheel frame
R: Rear wheel assembly
S: Lower bag holder bracket assembly
T: Front wheel
U: Umbrella holder
V: Handle mesh net
W: Drink holder
X: Elastic strap assembly
