Cadet 1180 - Page 25

25
REF.
NO.
PART
NO. DESCRIPTION
1 625-0051 Bulb/Socket Headlight Assembly
2 629-0939 Wiring Harness w/o Ref. 14
3 629-0126 Harness Adapter, #18 x 5
4 710-0599 Self Tapping Screw, 1/4-20 x .5
5 712-3006 Hex Nut, 1/4-20
6 725-1426 Solenoid, 12-volt, 100 Amp
7 725-1657A Snap Mount Safety Interlock Switch (Brake)
8 725-1741 Ignition Switch
9 725-1743 Indicator Monitor / Hour Meter
10 725-1745 Ignition Key
11 725-1747 Safety Plunger Switch (Seat)
12 736-0222 External Lock Washer, 1/4
13 736-0329 Lock Washer, 1/4
14 629-0309 Headlight Harness
15 725-1752 Electric PTO Switch
16 783-0462 Retainer Bracket
17 725-3007A Positive Terminal Cover (Boot)
18 729-0357 Fuse Holder
19 725-1381 20-amp Fuse
Models 1170 & 1180
9
3
8
10
1
7
11
2

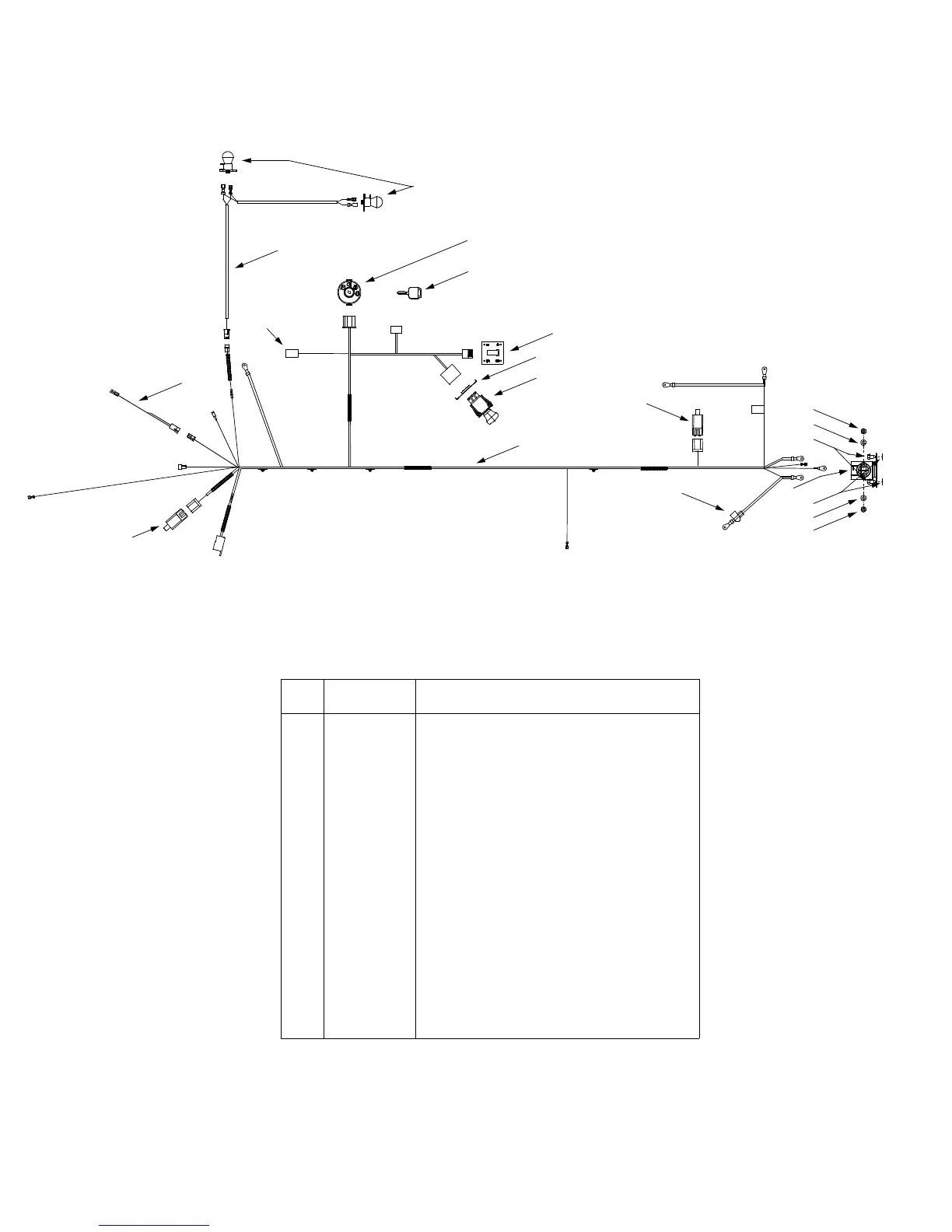

Electrical System
15
16
11
14
5
5
13
13
6
4
5
18/1
9
