SECTION 7: CONTROLS

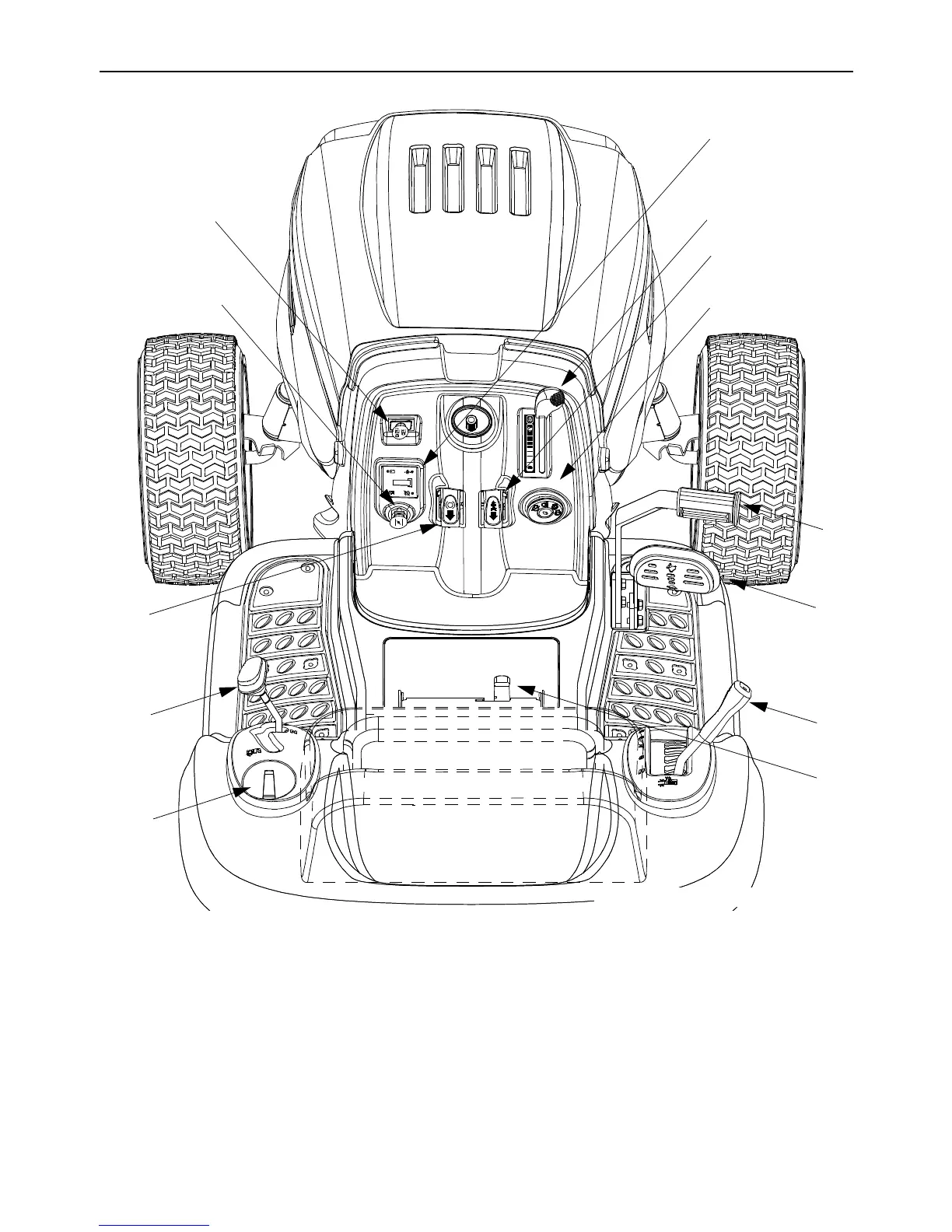

Figure 3
A Ignition Switch H Brake Pedal
B Throttle Control Lever I Parking Brake Button
C Choke Control (if so equipped) J Shift Lever
D Indicator Monitor/Hour Meter K Seat Adjustment Lever
E Lift Lever L Cup Holder
F PTO (Power Take-off) Knob M Cruise Control Button
G Drive Pedal
A
C
F
M
I
J
L
E
G
H
K
NOTE: Steering Wheel not shown for clarit
1
/
1
0
+
P
B
D
NOTE: Any reference in this manual to the RIGHT or LEFT side of the tractor is observed from operator’s position.
