SAVE THESE INSTRUCTIONS
IMPORTANT INSTRUCTIONS

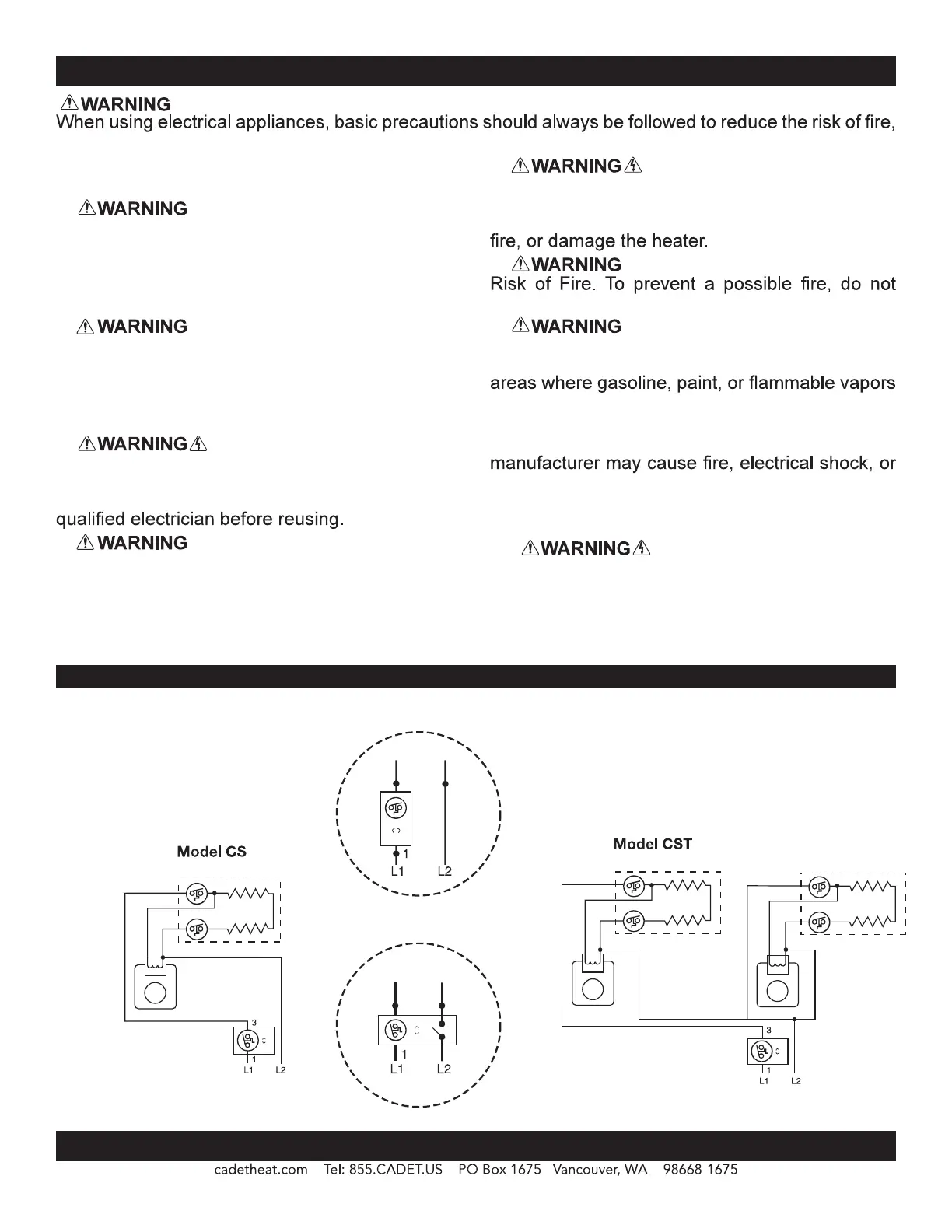

Wiring Diagram
Heating Element
Over-Temperature Fuse
Motor
Heater with
built-in thermostat
MANUAL POWER RESET
HIGH TEMPERATURE LIMIT
MANUAL POWER RESET
HIGH TEMPERATURE LIMIT
MANUAL POWER RESET
HIGH TEMPERATURE LIMI
Heating Element
Over-Temperature Fuse
Heating Element
Over-Temperature Fuse
Motor
Motor
Heater with
built-in thermostat
WITH DOUBLE-POLE WALL
THERMOSTAT ALTERNATE
WITH SINGLE-POLE WALL
THERMOSTAT ALTERNATE
To/From Heater
To/From Heater
1. Read all instructions before installing or using
this heater.
2.
Risk of Fire. This heater is hot when in use.
Caution—High Temperature. Risk of Fire. Keep
electrical cords, drapery, furnishings, and other
combustibles at least 3 feet from the front of the
heater and 6 inches above and on both sides.
3.
Burn Hazard. To avoid burns, do not let bare skin
touch hot surfaces. Extreme caution is necessary
when any heater is used by or near children or
invalids and whenever the heater is left operating
and unattended.
4.
Risk of Electrical Shock. Do not operate any
heater after it malfunctions. Disconnect power
at service panel and have heater inspected by a
5.
Do not use outdoors.
6. To disconnect heater, turn controls to off, and
turn off power to heater circuit at main disconnect
panel.
7.
Risk of Electrical Shock. Do not insert or allow
foreign objects to enter any ventilation or exhaust
opening as this may cause an electric shock or
8.
block air intakes or exhaust in any manner.
9.
Fire or explosion may occur. A heater has hot and
arcing or sparking parts inside. Do not use it in
or liquids are used or stored.
10. Use this heater only as described in this
manual. Any other use not recommended by the
injury to persons.
11. The heater must be properly installed before
it is used.
12.
Risk of Electrical Shock and Fire. Do not operate
without grill.
13. Save these instructions.
electric shock, and injury to persons, including the following:
Page 2
See insets for heater wiring
without built-in thermostat
To Next Page
