Tire and Loading Information Label
A vehicle specific Tire and Loading Information
label is attached to the vehicle’s center pillar
(B-pillar). With the driver’s door open, you will find
the label attached below the door lock post (striker).
The Tire and Loading Information label shows the
number of occupant seating positions (A), and the
maximum vehicle capacity weight (B) in kilograms
and pounds.
The Tire and Loading Information label also shows
the tire size of the original equipment tires (C) and
the recommended cold tire inflation pressures (D).
For more information on tires and inflation see
Tires on page 5-50 and Inflation - Tire Pressure
on page 5-58.
There is also important loading information on the
Certification label. It tells you the Gross Vehicle
Weight Rating (GVWR) and the Gross Axle Weight
Rating (GAWR) for the front and rear axle; see
“Certification Label” later in this section.
If you have a Professional Vehicle, a Tire and
Loading Information label specific to your vehicle
will be provided and installed by the final body
manufacturer. The Tire and Loading Information
label, should be attached to the B-pillar of your
vehicle. See the final stage manufacturer’s manual
or contact them directly. The label shows the
original tires installed on your professional vehicle
and the recommended cold tire inflation pressures
for those tires. The label also tells you the
professional vehicle’s capacity weight.

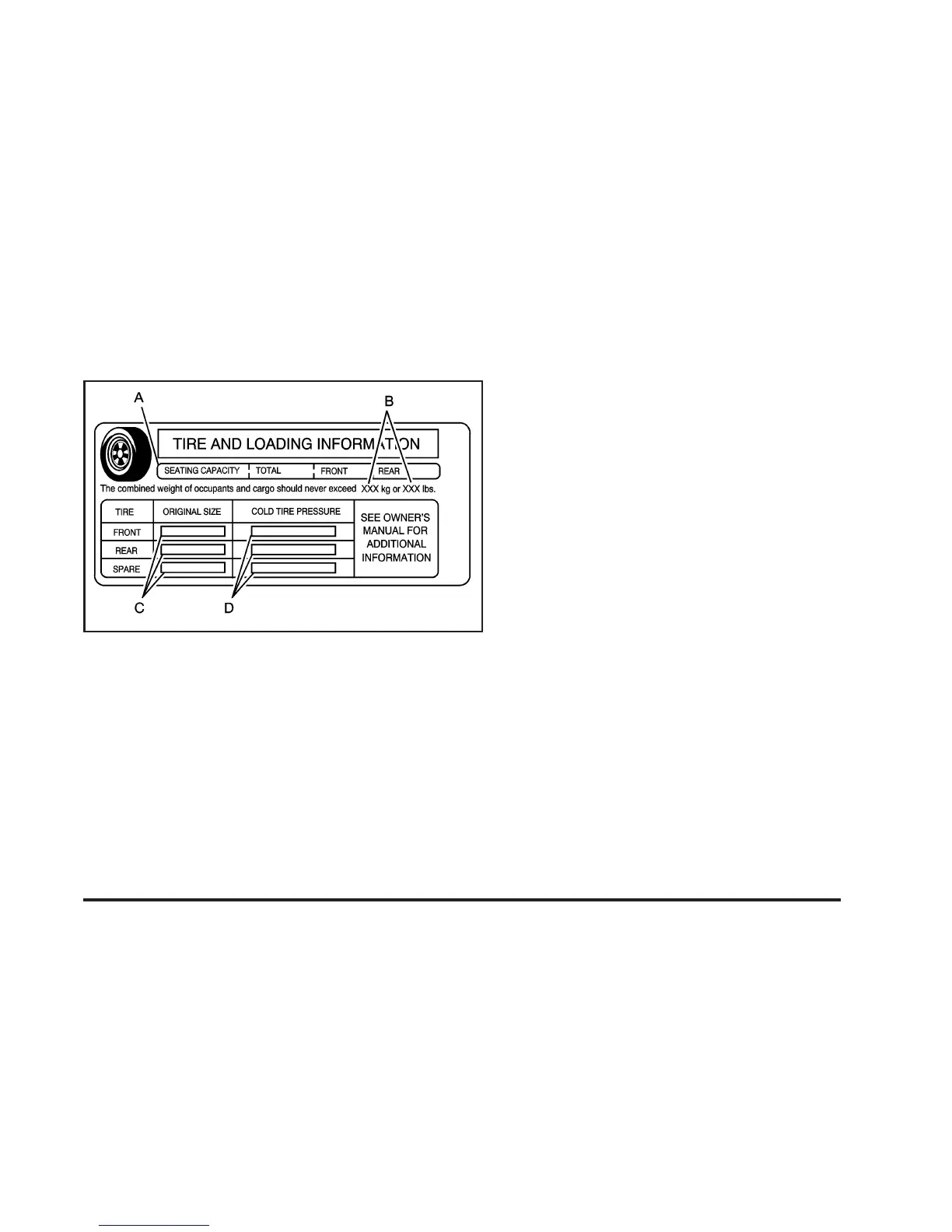

Label Example
4-21
