Rear Underseat Fuse Block
The rear fuse block is located under the rear seat on
the driver side. The rear seat cushion must be removed
to access the rear fuse block.
Removing the Rear Seat Cushion
Notice: If you touch the exposed wires with the
metal on the seat cushion, you could cause a
short that could damage the battery and or wires.
Avoid contact between the rear seat and the
fuse center whenever you remove or reinstall
the rear seat. Do not remove covers from any of
the covered parts, and do not store anything
under the seats.
To remove the rear seat cushion, do the following:
1. Pull up on the front of the cushion to release
the front hooks.
2. Pull the cushion up and out toward the front of
the vehicle.

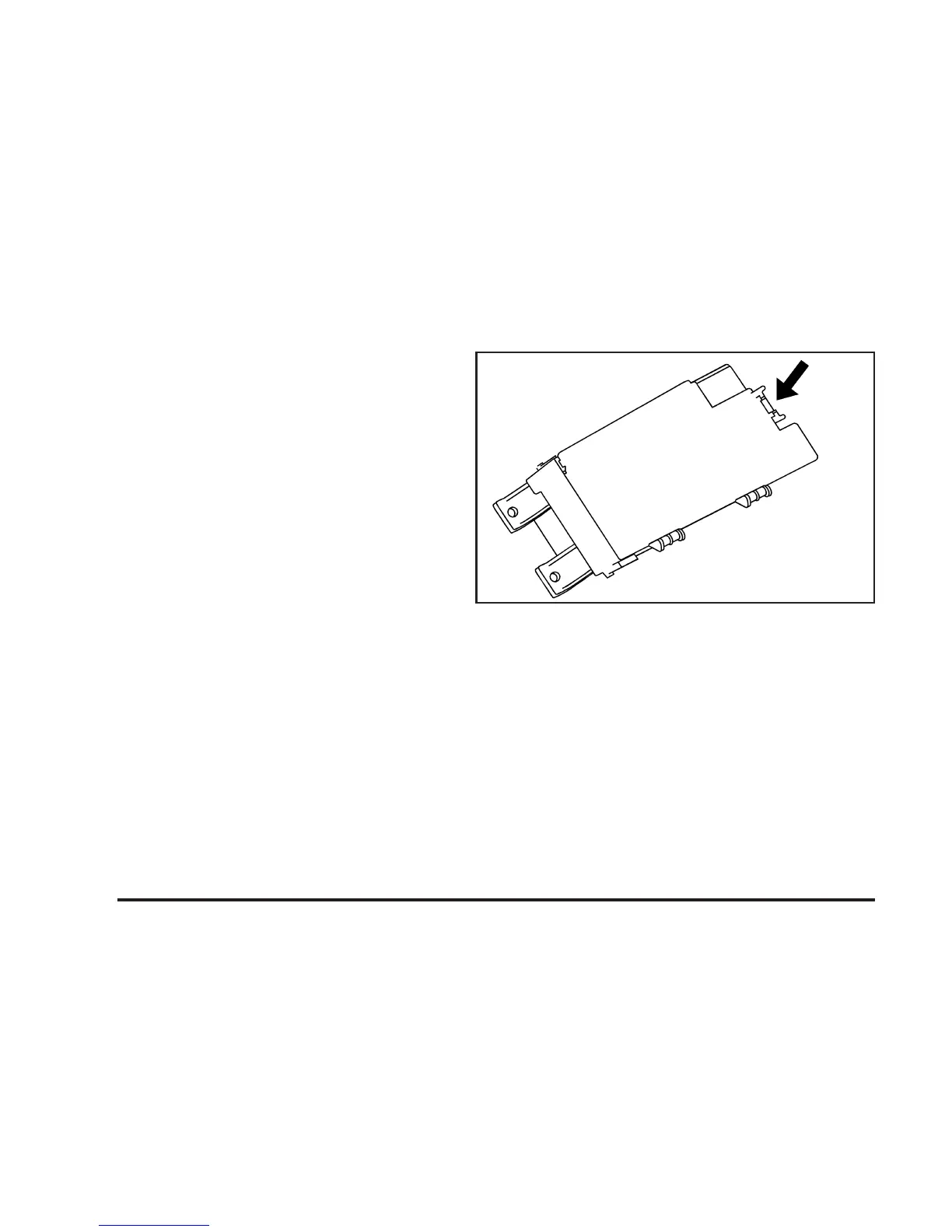

To access the fuse block, pull out and lift up on the
cover latch, located at the end of the fuse block,
near the battery cable.
5-100
