Turn Signal Lamps
To replace one of these bulbs:
1. Open the liftgate. See Liftgate
(Manual)
on page 1‑13
or
Liftgate (Power) on page 1‑14.

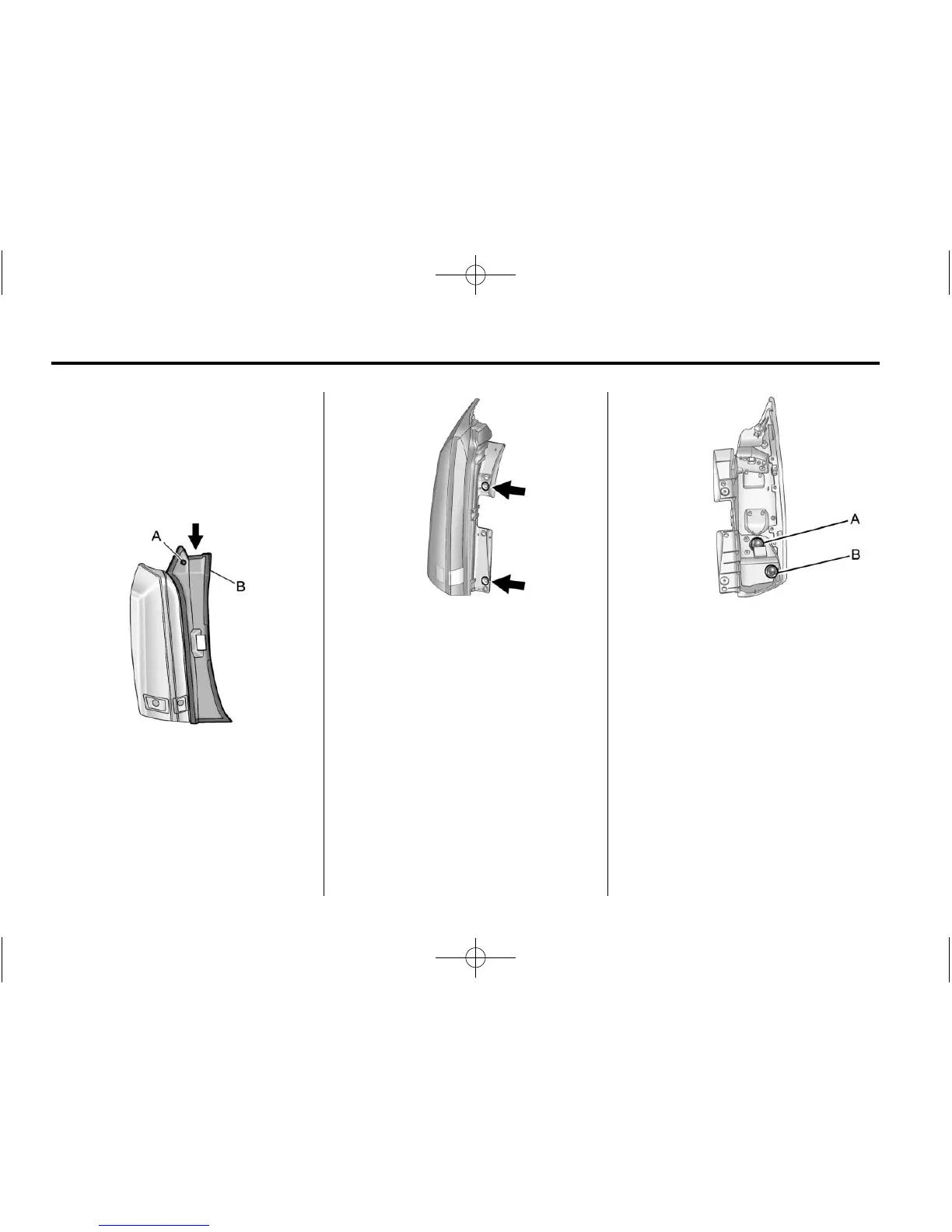

A. Push Pin
B. Taillamp Cover
2. Pull on push pin (A) to release
the taillamp cover (B).
3. Remove the taillamp cover from
the lamp assembly by pulling
rearward from the top to
unfasten from snap tabs.
4. Remove the two screws from the
taillamp assembly.
5. Pull the taillamp assembly
straight back to remove.
A. Turn Signal Lamp
B. Back-Up Bulb/Socket
6. Turn the turn signal lamp (A)
bulb socket counterclockwise to
remove it from the taillamp
assembly.
7. Pull the bulb straight out from
the socket.
