Vehicle Care 297
Number Usage
67 Left/Right
high-beam
headlamp
68 Aeroshutter
69 Horn
70 Horn relay
71 Coolant fan
72 Starter 2
*73 Brake
vacuum pump
74 Starter
75 A/C clutch
76 –
* Optional
Instrument Panel Fuse
Block
The instrument panel fuse block is
in the end of the driver side of the
instrument panel.

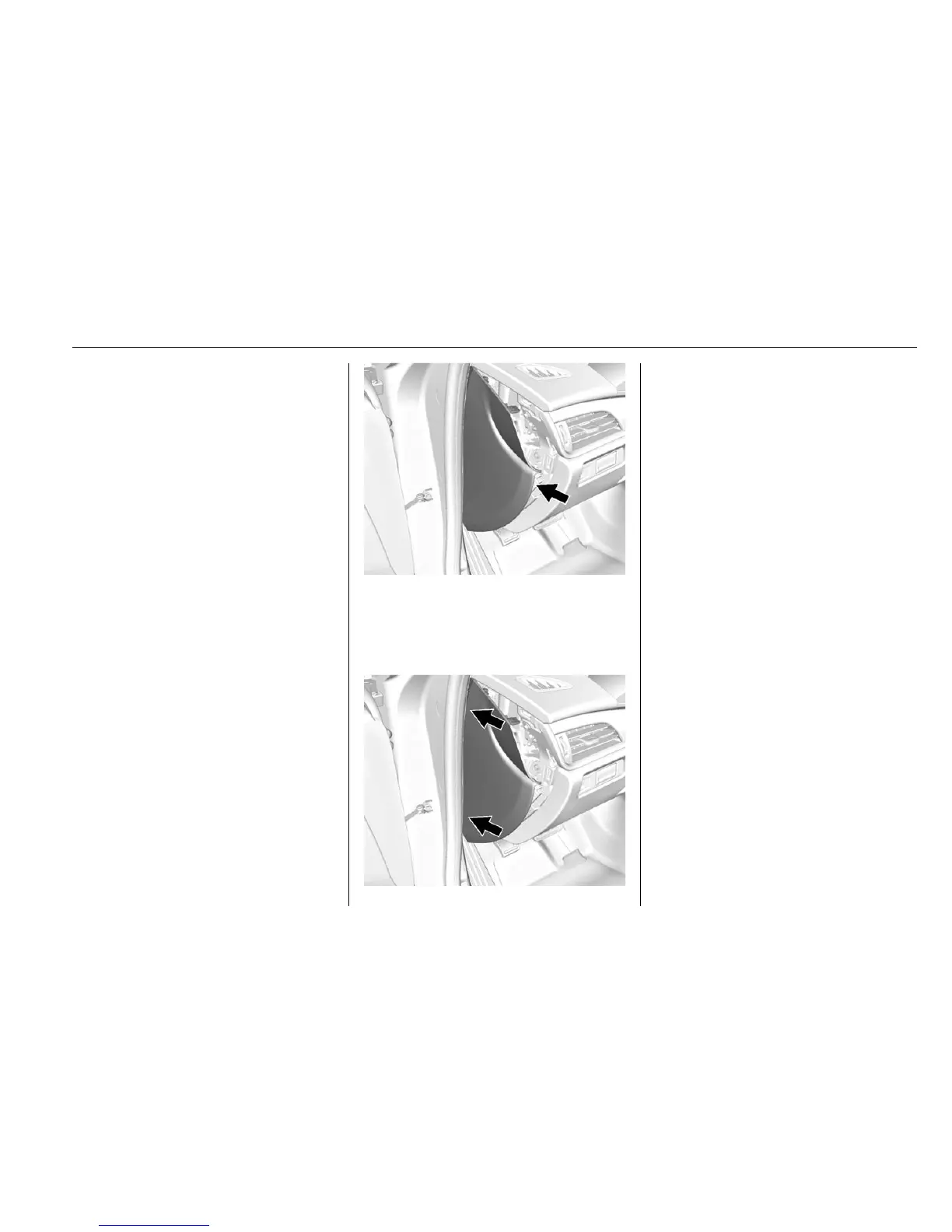

To access the fuses, remove the
end panel by gently prying with a
plastic tool near each clip, beginning
at the point shown.
To install the end cover, insert the
tabs on the back of the cover into
the slots in the instrument panel at
the points shown. Align the clips
with the slots in the instrument
panel, and press the cover into
place.
The vehicle may not be equipped
with all of the fuses and relays
shown.
