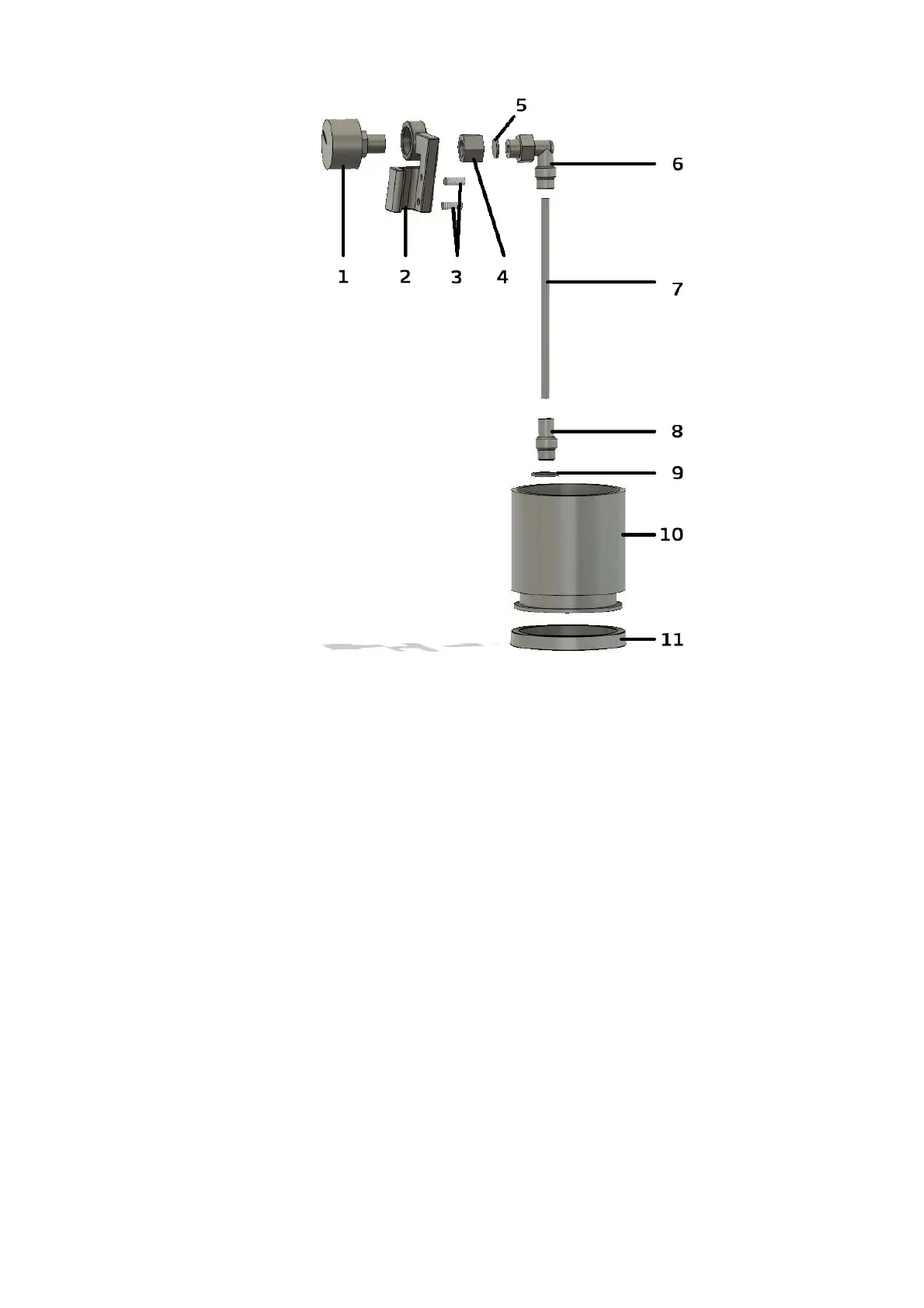

Cafelat Robot - Pressure Gauge Kit Component Details

! ! !
Robot!User!Manual!2.0!June!2020!
25!
1. Manometer 8. Fitting 1/8 BSPP
2. Bracket 9. Viton o-ring
3. Grub Screws x 2 10. Piston
4. Female 1/8 BSPP fitting 11. Piston Seal
5. Filter Screen
6. Elbow Fitting 1/8BSPP
7. 4mm OD flexible tube
