9 SER_OUT Serial Output Green\
Output
10 SER_IN Serial Input Blue\Black
Input

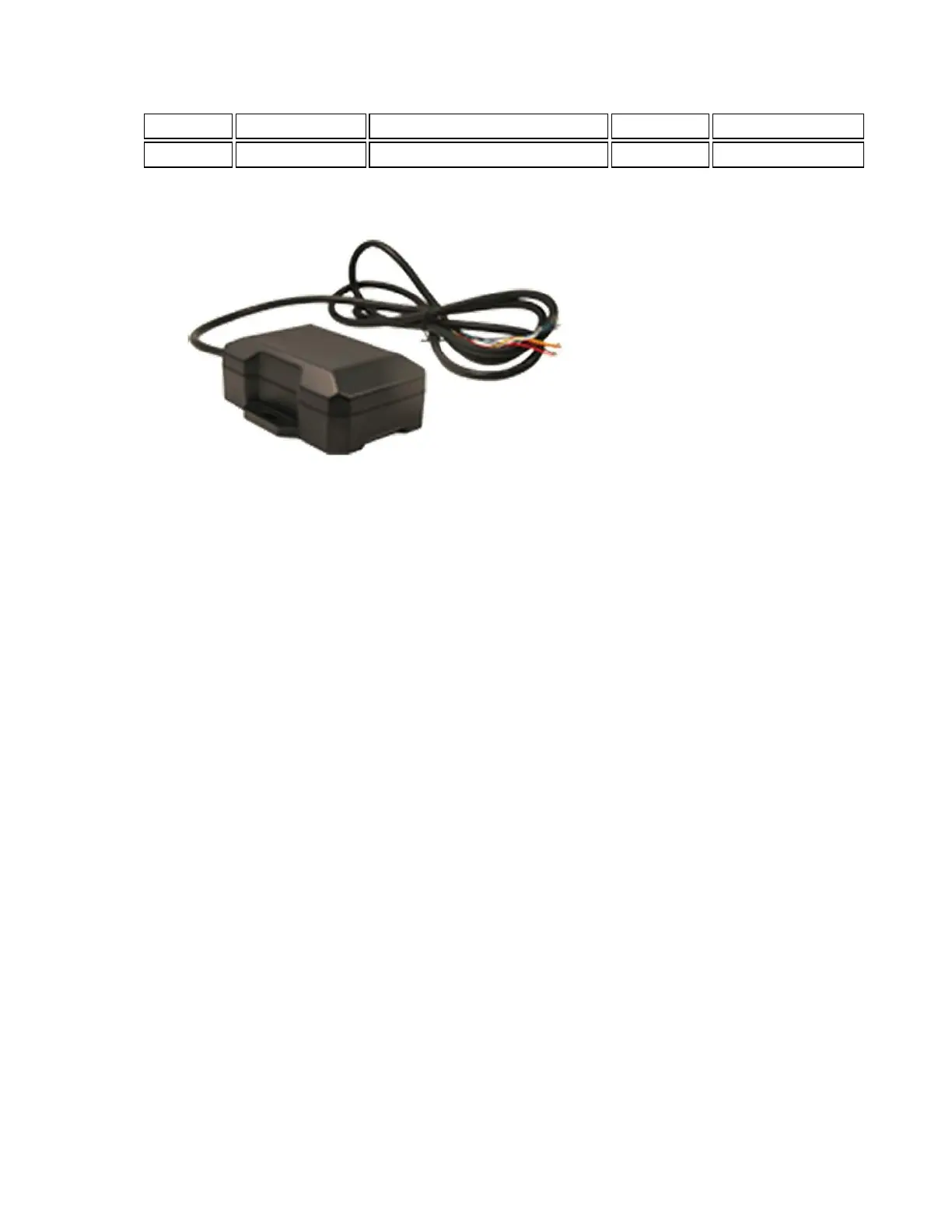

TTU-2830™Power and I/O leads
3.3 GPS Receiver
The TTU-2830™’s GPS receiver has the following specifications:
•
50 channel GPS receiver
•
Accuracy: 2.5 meter CEP (with SA off)
•
-162dBm Tracking Sensitivity
3.4 I/O Descriptions
The TTU-2830™provides the following I/O:
Digital Inputs
•
Input 0: Ignition Sense (Always biased low)
•
Input 1: Generic Digital Input (high or low bias per S-158)
•
Input 2: Generic Digital Input (high or low bias per S-158)
•
Input 3: Not Available
•
Input 4: Not Available
•
Input 5: Motion Sensor (low = no motion, high = motion)
•
Input 6: Power Switch State (low = external power, high = internal battery)
•
Input 7: Battery Voltage Critical Sensor ( low = VBatt ok, high = VBatt low.
3500mV threshold)
